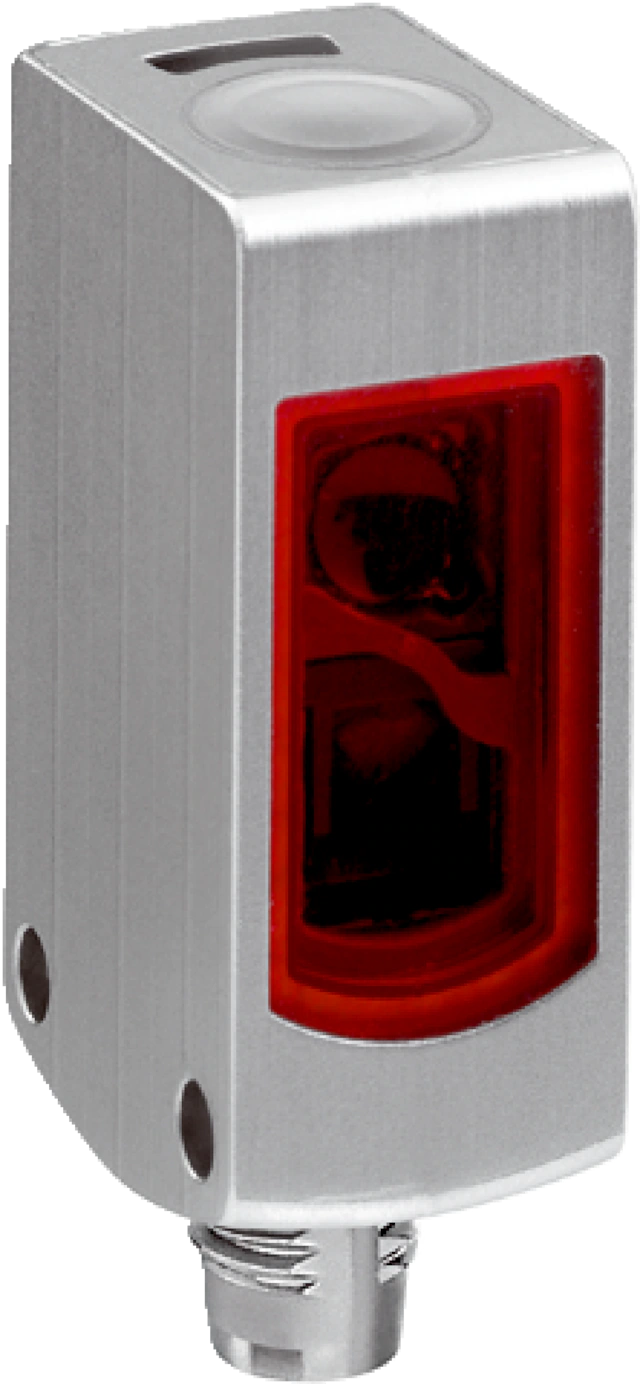

SICK WTB4SC-3P2262VB01 光电传感器
订货号: 1115584
SICK WTB4SC-3P2262VB01 光电传感器 — datasheet、规格参数、订货号查询与原装正品采购
获取报价 / 询盘
产品概述
| 工作原理 | 漫反射光电传感器 |
| 工作原理详细信息 | 背景抑制功能 |
| 最大开关距离 | 4 mm ... 500 mm 1) |
| 感应距离 | 10 mm ... 350 mm 1) 发射光束 |
| 光源 | PinPoint-LED 2) |
| 光源种类 | 可见红光 |
| 光斑尺寸（距离） | Ø 6.5 mm (150 mm) LED 特征值 |
| 轴长 | 650 nm |
| 设置 | 单示教按键 |
| 特殊应用 | 卫生和潮湿环境 |
| 外壳样式 | 冲洗 |
| 针脚 2 配置 | 外部输入端, 示教功能输入端, 发射器关闭输入端, 检测输出端, 逻辑输出端 1) 具有 90% 漫反射比的扫描对象（以 DIN 5033 标准白为基准）.2) 平均使用寿命：100,000 小时，TU = +25 °C. |
技术规格
| Safety-related parameters | |
| MTTFD | 868 years |
| DCavg | 0 % ## Communication interface |
| IO-Link | ✔ , IO-Link V1.1 |
| Data transmission rate | COM2 (38,4 kBaud) |
| Cycle time | 2.3 ms |
| Process data length | 16 Bit |
| Process data structure | Bit 0 = switching signal QL1 Bit 1 = switching signal QL2 Bit 2 ... 15 = empty |
| VendorID | 26 |
| DeviceID HEX | 0x8001E6 |
| DeviceID DEC | 8389094 |
| Compatible master port type | A |
| SIO mode support | Yes |
| Electronics | |
| Supply voltage UB | 10 V DC ... 30 V DC 1) |
| Ripple | pp 2) |
| Current consumption | 30 mA 3) |
| Protection class | III Digital output |
| Type | PNP 4) |
| Switching mode | Light/dark switching |
| Output current Imax. | ≤ 100 mA |
| Response time | 5) |
| Repeatability (response time) | 150 µs 6) |
| Switching frequency | 1,000 Hz 7) |
| Output function | Complementary |
| Circuit protection | A 8)B 9)C 10) |
| Response time Q/ on Pin 2 | 300 µs ... 450 µs 5) 6) |
| Switching frequency Q / to pin 2 | 1,000 Hz 11) 1) Limit values, reverse-polarity protected, operation in short-circuit protected network: max. 8 A.2) May not fall below or exceed UV tolerances.3) Without load.4) Pin 4: This switching output must not be connected to another output.5) Signal transit time with resistive load.6) Valid for Q \ on Pin2, if configured with software.7) With light/dark ratio 1:1.8) A = VS connections reverse-polarity protected.9) B = inputs and output reverse-polarity protected.10) C = interference suppression.11) With light / dark ratio 1:1, valid for Q \ on Pin2, if configured with software. |
| Mechanics | |
| Housing | Rectangular |
| Design detail | Slim |
| Dimensions (W x H x D) | 15.25 mm x 44.9 mm x 22.2 mm |
| Connection | Male connector M8, 4-pin 1) Material |
| Housing | Metal, Stainless steel V4A (1.4404, 316L) |
| Front screen | Plastic, PMMA |
| Weight | 40 g 1) Max. tightening torque: 0.6 Nm. |
| Ambient data | |
| Enclosure rating | IP66IP67IP68IP69K 1) |
| Ambient operating temperature | –30 °C ... +70 °C 2)–30 °C ... +60 °C |
| Ambient temperature, storage | –30 °C ... +75 °C |
| UL File No. | NRKH.E181493 & NRKH7.E181493 1) Only in case of correctly mounted IP69K connecting cable.2) At UV ≤ 24 V and IA ## Smart Task |
| Smart Task name | Base logics |
| Logic function | DirectANDORWINDOWHysteresis |
| Timer function | DeactivatedSwitch-on delayOff delayON and OFF delayImpulse (one shot) |
| Inverter | Yes |
| Switching frequency | SIO Direct: 1000 HzSIO Logic: 600 HzIOL: 450 Hz |
| Response time | SIO Direct: 300 µs ... 450 µs 1)SIO Logic: 750 µs ... 900 µs 2)IOL: 800 µs ... 1200 µs 3) |
| Repeatability | SIO Direct: 150 µs 1)SIO Logic: 150 µs 2)IOL: 400 µs 3) Switching signal |
| Switching signal QL1 | Switching output |
| Switching signal QL2 | Switching output 1) SIO Direct: sensor operation in standard I/O mode without IO-Link communication and without using internal sensor logic or time parameters (set to "direct"/"deactivated").2) SIO Logic: Sensor operation in standard I/O mode without IO-Link communication. Sensor-internal logic or timing parameters plus Automation Functions used.3) IOL: Sensor operation with full IO-Link communication and usage of logic, timing and Automation Function parameters. ## Diagnosis |
| Device status | Yes ## Certificates |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| China Compulsory Product Certification (CCC) exempt | ✔ |
| ECOLAB certificate | ✔ |
| Photobiological safety (DIN EN 62471) certificate | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ ## Classifications |
| ECLASS 5.1.4 | 27270903 |
| ECLASS 6.0 | 27270903 |
| ECLASS 7.0 | 27270903 |
| ECLASS 8.0 | 27270903 |
| ECLASS 9.0 | 27270903 |
| ECLASS 10.0 | 27270903 |
| ECLASS 11.0 | 27270903 |
| ECLASS 12.0 | 27270903 |
| ECLASS 13.0 | 27270903 |
| ECLASS 14.0 | 27270903 |
| ECLASS 15.0 | 27270903 |
| ETIM 6.0 | EC002719 |
| ETIM 7.0 | EC002719 |
| ETIM 8.0 | EC002719 |
| ETIM 9.0 | EC002719 |
| ETIM 10.0 | EC002719 |
| UNSPSC 091201.0 | 32151804 |
| UNSPSC 100501.0 | 32151804 |
| UNSPSC 111201.0 | 32151804 |
| UNSPSC 120901.0 | 32151804 |
| UNSPSC 131201.0 | 32151804 |
| UNSPSC 140801.0 | 32151804 |
| UNSPSC 151101.0 | 32151804 |
| UNSPSC 160901.0 | 32151804 |
| UNSPSC 171001.0 | 32151804 |
| UNSPSC 180801.0 | 32151804 |
| UNSPSC 190501.0 | 32151804 |
| UNSPSC 200601.0 | 32151804 |
| UNSPSC 210901.0 | 32151804 |
| UNSPSC 220601.0 | 32151804 |
| UNSPSC 230701.0 | 32151804 |
| UNSPSC 240301.0 | 32151804 |
| UNSPSC 250901.0 | 32151804 |
| UNSPSC 260801.0 | 32151804 |
