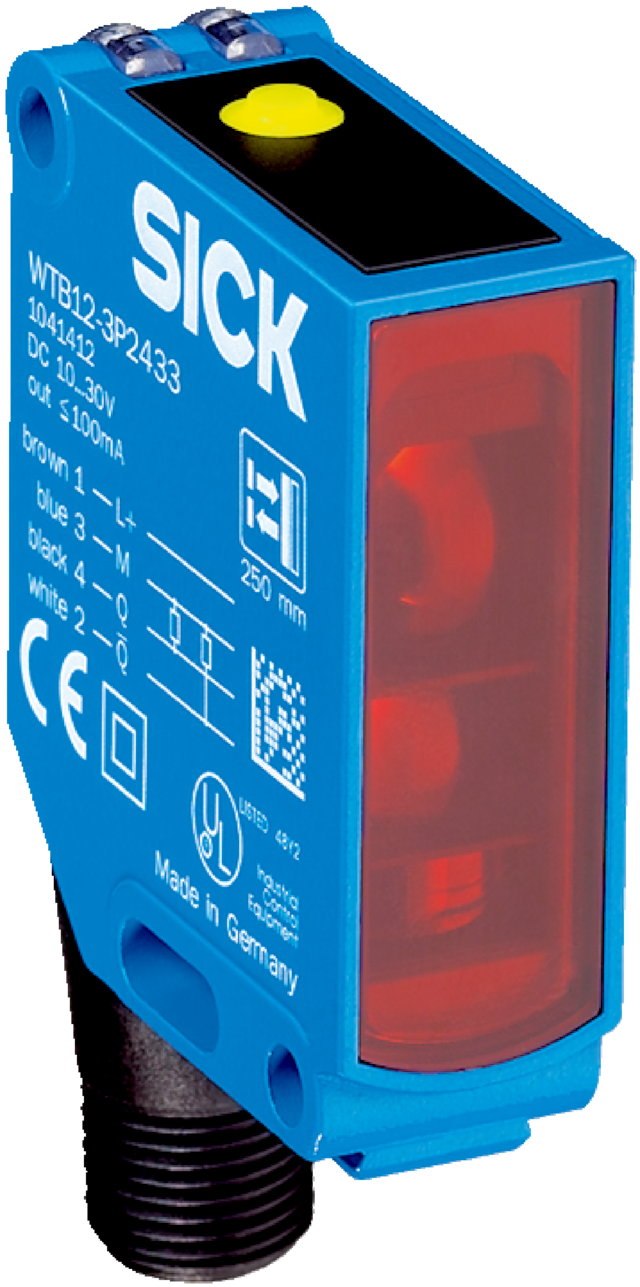

SICK WTB12C-3P2432A91 光电传感器
订货号: 1060222
SICK WTB12C-3P2432A91 光电传感器 — datasheet、规格参数、订货号查询与原装正品采购
获取报价 / 询盘
产品概述
| 工作原理 | 漫反射光电传感器 |
| 工作原理详细信息 | 背景抑制功能 |
| 最大开关距离 | 20 mm ... 350 mm 1) |
| 感应距离 | 20 mm ... 350 mm 1) 发射光束 |
| 光源 | PinPoint-LED 2) |
| 光源种类 | 可见红光 |
| 光斑尺寸（距离） | Ø 6 mm (200 mm) LED 特征值 |
| 轴长 | 640 nm |
| 设置 | IO-Link, 单示教按键 |
| 针脚 2 配置 | 外部输入端, 示教功能输入端, 发射器关闭输入端, 检测输出端, 逻辑输出端 1) 具有 90% 漫反射比的扫描对象（以 DIN 5033 标准白为基准）.2) 平均使用寿命：50,000 h，TU = +25 °C. |
技术规格
| Safety-related parameters | |
| MTTFD | 634 years |
| DCavg | 0 % |
| TM (mission time) | 20 years ## Communication interface |
| IO-Link | ✔ , IO-Link V1.1 |
| Data transmission rate | COM2 (38,4 kBaud) |
| Cycle time | 2.3 ms |
| Process data length | 16 Bit |
| Process data structure | Bit 0 = switching signal QL1 Bit 1 = switching signal QL2 Bit 2 ... 15 = measuring value |
| VendorID | 26 |
| DeviceID HEX | 0x8000ED |
| DeviceID DEC | 8388845 |
| Compatible master port type | A |
| SIO mode support | Yes |
| Electronics | |
| Supply voltage UB | 10 V DC ... 30 V DC 1) |
| Ripple | pp 2) |
| Current consumption | 45 mA 3) |
| Protection class | III Digital output |
| Type | PNP 4) |
| Switching mode | Light/dark switching |
| Signal voltage PNP HIGH/LOW | > Uv - 2,5 V / ca. 0 V |
| Output current Imax. | ≤ 100 mA |
| Response time | 5) |
| Repeatability (response time) | 100 µs 6) |
| Switching frequency | 1,500 Hz 7) |
| Circuit protection | A 8)B 9)C 10)D 11) |
| Response time Q/ on Pin 2 | 200 µs ... 300 µs 5) 6) |
| Switching frequency Q / to pin 2 | ≤ 1,500 Hz 12) 1) Limit values when operated in short-circuit protected network: max. 8 A.2) May not fall below or exceed UV tolerances.3) Without load.4) Pin 4: This switching output must not be connected to another output.5) Signal transit time with resistive load.6) Valid for Q \ on Pin2, if configured with software.7) With light/dark ratio 1:1.8) A = VS connections reverse-polarity protected.9) B = inputs and output reverse-polarity protected.10) C = interference suppression.11) D = outputs overcurrent and short-circuit protected.12) With light / dark ratio 1:1, valid for Q \ on Pin2, if configured with software. |
| Mechanics | |
| Housing | Rectangular |
| Dimensions (W x H x D) | 15.6 mm x 48.5 mm x 42 mm |
| Connection | Male connector M12, 4-pin Material |
| Housing | Metal, zinc diecast |
| Front screen | Plastic, PMMA |
| Weight | 120 g |
| Ambient data | |
| Enclosure rating | IP66IP67 |
| Ambient operating temperature | –40 °C ... +60 °C |
| Ambient temperature, storage | –40 °C ... +75 °C |
| UL File No. | NRKH.E181493 & NRKH7.E181493 ## Smart Task |
| Smart Task name | Timestamp + debouncing |
| Logic function | DirectANDORWINDOWHysteresis |
| Timer function | DeactivatedSwitch-on delayOff delayON and OFF delayImpulse (one shot) |
| Inverter | Yes |
| Response time | SIO Direct: 200 µs ... 300 µs 1)SIO Logic: 700 µs ... 800 µs 2)IOL: --- 3) |
| Repeatability | SIO Direct: 100 µs 1)SIO Logic: 100 µs 2)IOL: --- 3) |
| Time stamp accuracy | SIO Direct: ---SIO Logic: ---IOL: - 70 ... + 320 µs |
| Min. Time between two process events (switches) | SIO Direct: 300 µsSIO Logic: 500 µsIOL: 700 ms |
| Time stamp number buffer | SIO Direct: ---SIO Logic: ---IOL: 8 |
| Max. TimeStamp Range | SIO Direct: ---SIO Logic: ---IOL: 260 ms |
| Debounce time max. | SIO Direct: ---SIO Logic: 52 msIOL: 52 ms Switching signal |
| Switching signal QL1 | Switching output |
| Switching signal QL2 | Switching output |
| Measuring value | Timestamp 1) SIO Direct: sensor operation in standard I/O mode without IO-Link communication and without using internal sensor logic or time parameters (set to "direct"/"deactivated").2) SIO Logic: Sensor operation in standard I/O mode without IO-Link communication. Sensor-internal logic or timing parameters plus Automation Functions used.3) IOL: Sensor operation with full IO-Link communication and usage of logic, timing and Automation Function parameters. ## Diagnosis |
| Device status | Yes ## Certificates |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| ECOLAB certificate | ✔ |
| cULus certificate | ✔ |
| IO-Link certificate | ✔ |
| Photobiological safety (DIN EN 62471) certificate | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ ## Classifications |
