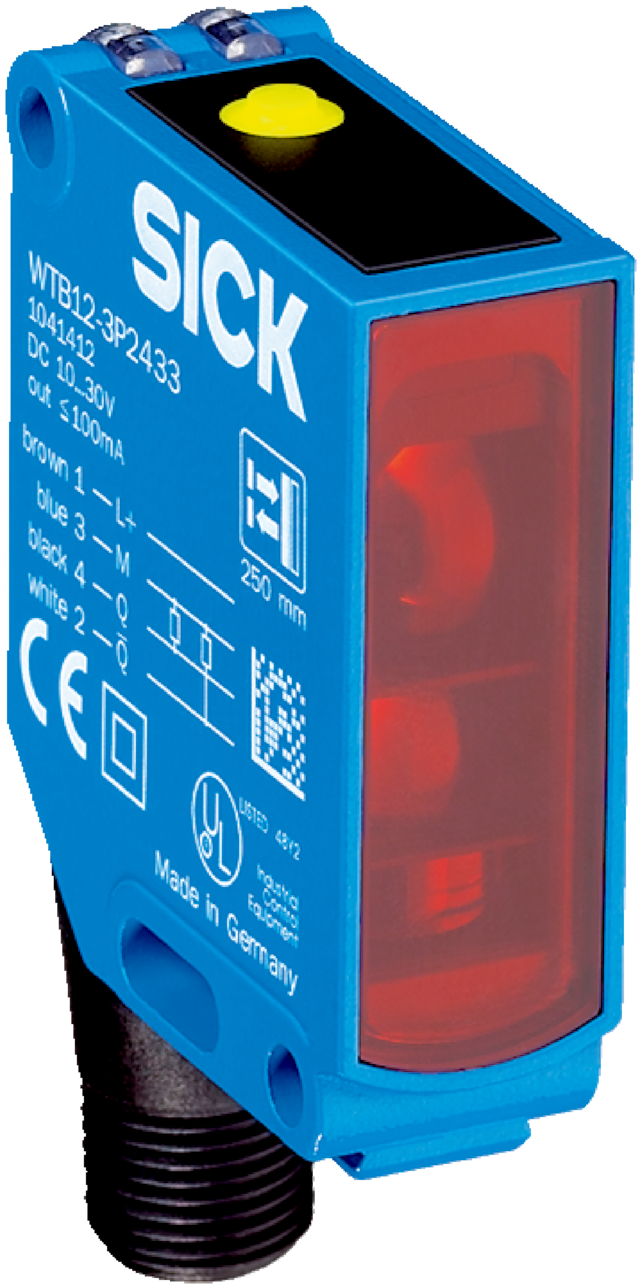

SICK WTB12C-3P2432A70 光电传感器
订货号: 1067772
SICK WTB12C-3P2432A70 光电传感器 — datasheet、规格参数、订货号查询与原装正品采购
获取报价 / 询盘
产品概述
| 工作原理 | 漫反射光电传感器 |
| 工作原理详细信息 | 背景抑制功能 |
| 最大开关距离 | 20 mm ... 350 mm 1) |
| 感应距离 | 20 mm ... 350 mm 1) 发射光束 |
| 光源 | PinPoint-LED 2) |
| 光源种类 | 可见红光 |
| 光斑尺寸（距离） | Ø 6 mm (200 mm) LED 特征值 |
| 轴长 | 640 nm |
| 设置 | IO-Link, 单示教按键 |
| 针脚 2 配置 | 外部输入端, 示教功能输入端, 发射器关闭输入端, 检测输出端, 逻辑输出端 1) 具有 90% 漫反射比的扫描对象（以 DIN 5033 标准白为基准）.2) 平均使用寿命：50,000 h，TU = +25 °C. |
技术规格
| Safety-related parameters | |
| MTTFD | 634 years |
| DCavg | 0 % |
| TM (mission time) | 20 years ## Communication interface |
| IO-Link | ✔ , IO-Link V1.1 |
| Data transmission rate | COM2 (38,4 kBaud) |
| Cycle time | 2.3 ms |
| Process data length | 16 Bit |
| Process data structure | Bit 0 = switching signal QL1 Bit 1 = switching signal QL2 Bit 2 ... 15 = measuring value |
| VendorID | 26 |
| DeviceID HEX | 0x8000EB |
| DeviceID DEC | 8388843 |
| Compatible master port type | A |
| SIO mode support | Yes |
| Electronics | |
| Supply voltage UB | 10 V DC ... 30 V DC 1) |
| Ripple | pp 2) |
| Current consumption | 45 mA 3) |
| Protection class | III Digital output |
| Type | PNP 4) |
| Switching mode | Light/dark switching |
| Signal voltage PNP HIGH/LOW | > Uv - 2,5 V / ca. 0 V |
| Output current Imax. | ≤ 100 mA |
| Response time | 5) |
| Repeatability (response time) | 100 µs 6) |
| Switching frequency | 1,500 Hz |
| Circuit protection | A 7)B 8)C 9)D 10) |
| Response time Q/ on Pin 2 | 200 µs ... 300 µs 5) 6) |
| Switching frequency Q / to pin 2 | ≤ 1,500 Hz 11) 1) Limit values when operated in short-circuit protected network: max. 8 A.2) May not fall below or exceed UV tolerances.3) Without load.4) Pin 4: This switching output must not be connected to another output.5) Signal transit time with resistive load.6) Valid for Q \ on Pin2, if configured with software.7) A = VS connections reverse-polarity protected.8) B = inputs and output reverse-polarity protected.9) C = interference suppression.10) D = outputs overcurrent and short-circuit protected.11) With light / dark ratio 1:1, valid for Q \ on Pin2, if configured with software. |
| Mechanics | |
| Housing | Rectangular |
| Dimensions (W x H x D) | 15.6 mm x 48.5 mm x 42 mm |
| Connection | Male connector M12, 4-pin Material |
| Housing | Metal, zinc diecast |
| Front screen | Plastic, PMMA |
| Weight | 120 g |
| Ambient data | |
| Enclosure rating | IP66IP67 |
| Ambient operating temperature | –40 °C ... +60 °C |
| Ambient temperature, storage | –40 °C ... +75 °C |
| UL File No. | NRKH.E181493 & NRKH7.E181493 ## Smart Task |
| Smart Task name | Time measurement + debouncing |
| Logic function | DirectWINDOW |
| Timer function | DeactivatedSwitch-on delayOff delayON and OFF delayImpulse (one shot) |
| Inverter | Yes |
| Time measurement accuracy | SIO Direct: ---SIO Logic: - 0,7 ... + 0,7 ms ± 0,5 % of time measurement valueIOL: - 0.9 ... + 0.9 ms ± 0.5% of the time measurement |
| Time measurement accuracy (e.g. accuracy for time measurement value = 1 s ) | SIO Direct: ---SIO Logic: - 5,6 ... + 5,6 msIOL: - 5,9 ... + 5,9 ms |
| Resolution time measuring value | 1 ms |
| Min. Time between two process events (switches) | SIO Direct: ---SIO Logic: 500 µsIOL: 750 µs |
| Debounce time max. | SIO Direct: ---SIO Logic: 30.000 msIOL: 30.000 ms Switching signal |
| Switching signal QL1 | Output type (dependant on the adjusted threshold) |
| Switching signal QL2 | Output type (dependant on the adjusted threshold) |
| Measuring value | Time measurement value ## Diagnosis |
| Device status | Yes ## Certificates |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| ECOLAB certificate | ✔ |
| cULus certificate | ✔ |
| IO-Link certificate | ✔ |
| Photobiological safety (DIN EN 62471) certificate | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ ## Classifications |
| ECLASS 5.1.4 | 27270903 |
| ECLASS 6.0 | 27270903 |
| ECLASS 7.0 | 27270903 |
| ECLASS 8.0 | 27270903 |
| ECLASS 9.0 | 27270903 |
| ECLASS 10.0 | 27270903 |
| ECLASS 11.0 | 27270903 |
| ECLASS 12.0 | 27270903 |
| ECLASS 13.0 | 27270903 |
| ECLASS 14.0 | 27270903 |
| ECLASS 15.0 | 27270903 |
| ETIM 6.0 | EC002719 |
| ETIM 7.0 | EC002719 |
| ETIM 8.0 | EC002719 |
| ETIM 9.0 | EC002719 |
| ETIM 10.0 | EC002719 |
| UNSPSC 091201.0 | 32151804 |
| UNSPSC 100501.0 | 32151804 |
| UNSPSC 111201.0 | 32151804 |
| UNSPSC 120901.0 | 32151804 |
| UNSPSC 131201.0 | 32151804 |
| UNSPSC 140801.0 | 32151804 |
| UNSPSC 151101.0 | 32151804 |
| UNSPSC 160901.0 | 32151804 |
| UNSPSC 171001.0 | 32151804 |
| UNSPSC 180801.0 | 32151804 |
| UNSPSC 190501.0 | 32151804 |
| UNSPSC 200601.0 | 32151804 |
| UNSPSC 210901.0 | 32151804 |
| UNSPSC 220601.0 | 32151804 |
| UNSPSC 230701.0 | 32151804 |
| UNSPSC 240301.0 | 32151804 |
| UNSPSC 250901.0 | 32151804 |
| UNSPSC 260801.0 | 32151804 |
下载资料
- datasheet WTB12C-3P2432A70 (945 KB)
