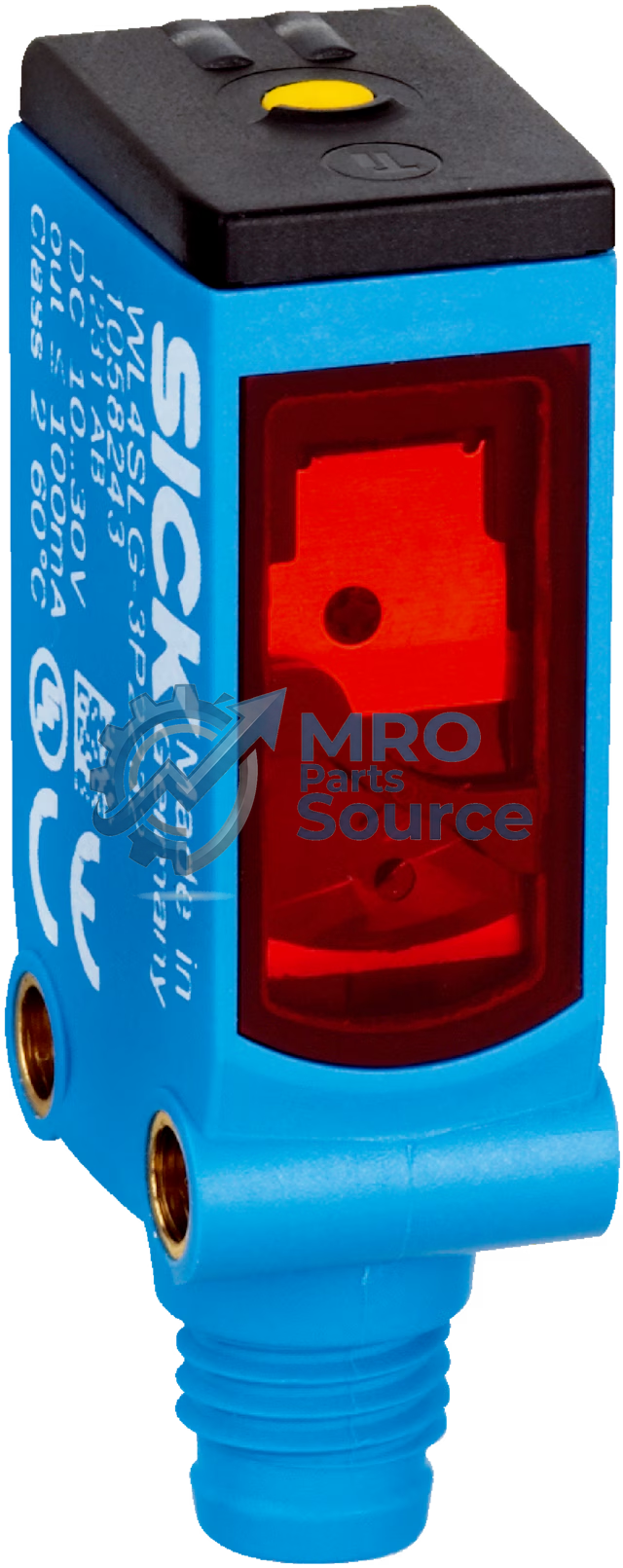

SICK WL4SLG-3P2232 光电传感器
订货号: 1058243
SICK WL4SLG-3P2232 光电传感器 — datasheet、规格参数、订货号查询与原装正品采购
获取报价 / 询盘
产品概述
| 工作原理 | 镜反射式光电传感器 |
| 工作原理详细信息 | 无反射镜最小距离（自动对准/同轴光学元件） |
| 最大开关距离 | 0 m ... 4.5 m 1) 2) |
| 感应距离 | 0 m ... 2 m 1) 2) |
| 偏振过滤器 | 是 发射光束 |
| 光源 | 激光 3) |
| 光源种类 | 可见红光 |
| 光斑尺寸（距离） | Ø 1 mm (500 mm) 激光器特征值 |
| 标准性参考 | EN 60825-1:2014, IEC 60825-1:2014 / CDRH 21 CFR 1040.10 & 1040.11 |
| 激光等级 | 1 4) |
| 轴长 | 650 nm |
| 设置 | 单示教按键 |
| 特殊应用 | 检测透明物体, 检测小型物体 |
| 孔型 | M3 |
| AutoAdapt | ✔ 1) 反光膜 REF-AC1000.2) 为确保可靠运行，我们建议使用反光膜 REF-AC1000 或者相关反射器，如 P41F、PLV14-A、PLH25-M12 或者 PLH25-D12。应事先进行应用说明，再使用带更大三角棱镜结构的反射器.3) 平均使用寿命：50,000 h，TU = +25 °C.4) 禁止刻意直视激光光束。不得将激光光束对准人眼。. |
技术规格
| Safety-related parameters | |
| MTTFD | 655 years (EN ISO 13849-1) 1) |
| DCavg | 0 % 1) Mode of calculation: Parts-Count-calculation. |
| Electronics | |
| Supply voltage UB | 10 V DC ... 30 V DC 1) |
| Ripple | pp 2) |
| Current consumption | 30 mA 3) |
| Protection class | III Digital output |
| Type | PNP 4) |
| Switching mode | Light/dark switching 4) |
| Output current Imax. | ≤ 100 mA |
| Response time | ≤ 0.5 ms 5) |
| Switching frequency | 1,000 Hz 6) |
| Output function | Complementary |
| Circuit protection | A 7)B 8)C 9) 1) Limit values when operated in short-circuit protected network: max. 8 A.2) May not fall below or exceed UV tolerances.3) Without load.4) Q = light switching.5) Signal transit time with resistive load.6) With light/dark ratio 1:1.7) A = VS connections reverse-polarity protected.8) B = inputs and output reverse-polarity protected.9) C = interference suppression. |
| Mechanics | |
| Housing | Rectangular |
| Design detail | Slim |
| Dimensions (W x H x D) | 12.2 mm x 41.8 mm x 17.3 mm |
| Connection | Male connector M8, 4-pin Material |
| Housing | Plastic, Novodur |
| Front screen | Plastic, PMMA |
| Weight | 100 g |
| Ambient data | |
| Enclosure rating | IP66IP67 |
| Ambient operating temperature | –10 °C ... +50 °C |
| Ambient operating temperature extended | –30 °C ... +55 °C 1) 2) |
| Ambient temperature, storage | –30 °C ... +70 °C |
| RoHS certificate | ✔ 1) As of Ta = 50 °C, a max. supply voltage Vmax. = 24 V and a max. load current Imax. = 50 mA is permitted.2) Operation below Tu –10 °C is possible if the sensor is already switched on at Tu > –10 °C, then cools down, and the supply voltage is subsequently not switched off. Switching on below Tu –10 °C is not permissible. ## Certificates |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| China Compulsory Product Certification (CCC) exempt | ✔ |
| ECOLAB certificate | ✔ |
| Laser safety (IEC 60825-1) certificate | ✔ ## Classifications |
| ECLASS 5.1.4 | 27270903 |
| ECLASS 6.0 | 27270903 |
| ECLASS 7.0 | 27270903 |
| ECLASS 8.0 | 27270903 |
| ECLASS 9.0 | 27270903 |
| ECLASS 10.0 | 27270903 |
| ECLASS 11.0 | 27270903 |
| ECLASS 12.0 | 27270903 |
| ECLASS 13.0 | 27270903 |
| ECLASS 14.0 | 27270903 |
| ECLASS 15.0 | 27270903 |
| ETIM 6.0 | EC002719 |
| ETIM 7.0 | EC002719 |
| ETIM 8.0 | EC002719 |
| ETIM 9.0 | EC002719 |
| ETIM 10.0 | EC002719 |
| UNSPSC 091201.0 | 32151804 |
| UNSPSC 100501.0 | 32151804 |
| UNSPSC 111201.0 | 32151804 |
| UNSPSC 120901.0 | 32151804 |
| UNSPSC 131201.0 | 32151804 |
| UNSPSC 140801.0 | 32151804 |
| UNSPSC 151101.0 | 32151804 |
| UNSPSC 160901.0 | 32151804 |
| UNSPSC 171001.0 | 32151804 |
| UNSPSC 180801.0 | 32151804 |
| UNSPSC 190501.0 | 32151804 |
| UNSPSC 200601.0 | 32151804 |
| UNSPSC 210901.0 | 32151804 |
| UNSPSC 220601.0 | 32151804 |
| UNSPSC 230701.0 | 32151804 |
| UNSPSC 240301.0 | 32151804 |
| UNSPSC 250901.0 | 32151804 |
| UNSPSC 260801.0 | 32151804 |
