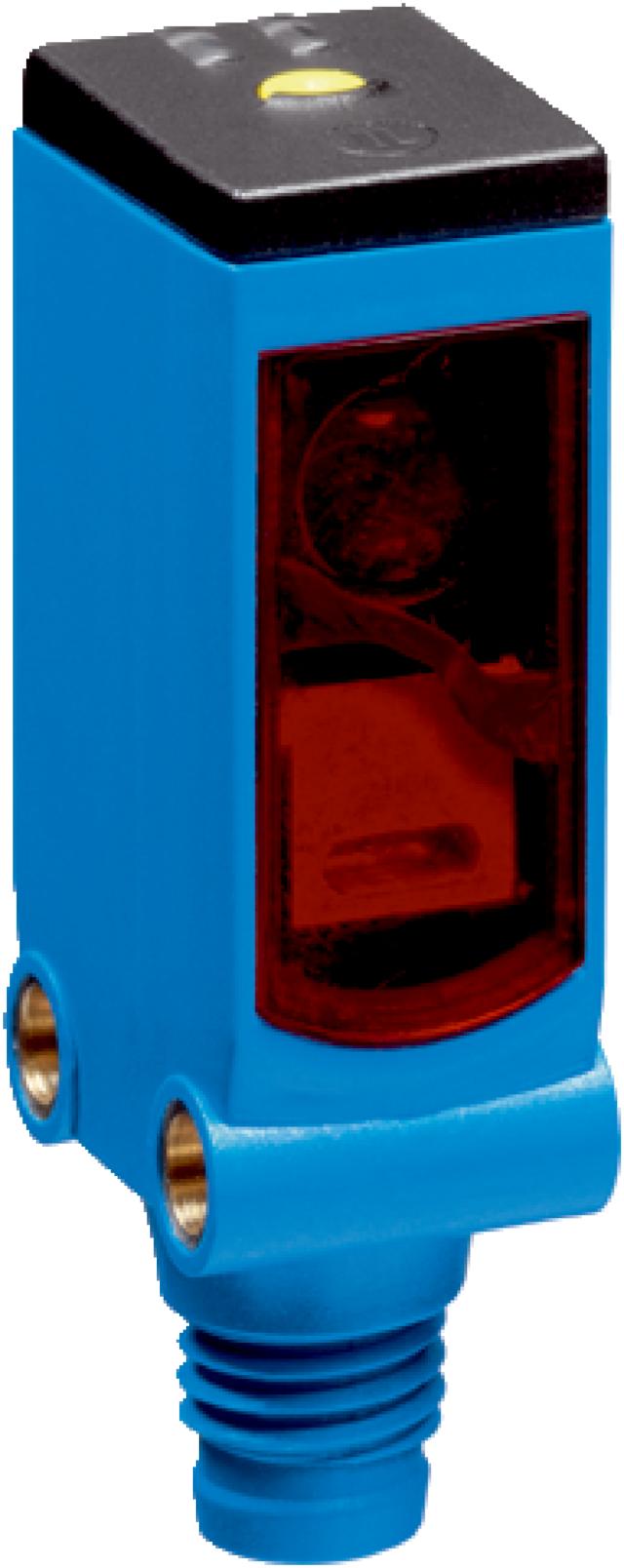

SICK WL4SC-3P2232A72 光电传感器
订货号: 1088640
SICK WL4SC-3P2232A72 光电传感器 — datasheet、规格参数、订货号查询与原装正品采购
获取报价 / 询盘
产品概述
| 工作原理 | 镜反射式光电传感器 |
| 工作原理详细信息 | 无反射镜最小距离（自动对准/同轴光学元件） |
| 最大开关距离 | 0 m ... 5 m 1) |
| 感应距离 | 0 m ... 3 m 1) |
| 偏振过滤器 | 是 发射光束 |
| 光源 | PinPoint-LED 2) |
| 光源种类 | 可见红光 |
| 光斑尺寸（距离） | Ø 45 mm (1.5 m) |
| 设置 | IO-Link, 单示教按键 |
| 特殊特征 | 附加传感器（例如 WL4S-3P2232，1042078），智能传感器 Y 型分配器 SYL-8204-G0M11-X2 (6055012)，2 x 连接电缆（例如 YF8U14-C60VA3M8U14，2096612），2 x 反光板（例如 P250F，5308843） 1) 反射器 PL80A.2) 平均使用寿命：100,000 小时，TU = +25 °C. |
技术规格
| Safety-related parameters | |
| MTTFD | 1,222 years (EN ISO 13849-1) 1) |
| DCavg | 0% |
| TM (mission time) | 10 years 1) Mode of calculation: Parts-Count-calculation. ## Communication interface |
| IO-Link | ✔ , IO-Link V1.1 |
| Data transmission rate | COM2 (38,4 kBaud) |
| Cycle time | 2.3 ms |
| Process data length | 16 Bit |
| Process data structure | Bit 0 = switching signal QL1 Bit 1 = Detection signal Qint.1 Bit 2 ... 15 = measuring value |
| VendorID | 26 |
| DeviceID HEX | 0x8001B7 |
| DeviceID DEC | 8389047 |
| Compatible master port type | A |
| SIO mode support | Yes |
| Electronics | |
| Supply voltage UB | 10 V DC ... 30 V DC 1) |
| Ripple | pp 2) |
| Current consumption | 30 mA 3) |
| Protection class | III Digital output |
| Type | PNP 4) |
| Switching mode | Light/dark switching 4) |
| Output current Imax. | ≤ 100 mA |
| Response time | ≤ 0.5 ms 6) |
| Repeatability (response time) | 150 µs 7) |
| Switching frequency | 1,000 Hz 8) |
| Output function | Complementary |
| Circuit protection | A 9)B 10)C 11) 1) Limit values when operated in short-circuit protected network: max. 8 A.2) May not fall below or exceed UV tolerances.3) Without load.4) Q = light switching.5) Pin 4: This switching output must not be connected to another output.6) Signal transit time with resistive load.7) Valid for Q \ on Pin2, if configured with software.8) With light/dark ratio 1:1.9) A = VS connections reverse-polarity protected.10) B = inputs and output reverse-polarity protected.11) C = interference suppression. |
| Mechanics | |
| Housing | Rectangular |
| Design detail | Slim |
| Dimensions (W x H x D) | 12.2 mm x 41.8 mm x 17.3 mm |
| Connection | Male connector M8, 4-pin Material |
| Housing | Plastic, Novodur |
| Front screen | Plastic, PMMA |
| Weight | 100 g |
| Ambient data | |
| Enclosure rating | IP66IP67 |
| Ambient operating temperature | –40 °C ... +60 °C |
| Ambient temperature, storage | –40 °C ... +75 °C |
| UL File No. | NRKH.E181493 ## Smart Task |
| Smart Task name | Speed and Length Monitoring |
| Measurement mode | SpeedLengthLength incremental |
| Relative measurement error related to the measured value | ≤ 1 % |
| Resolution measurement value | 1 mm / 1 mm/s |
| Logic function | WINDOW |
| Timer function | Impulse width, impulse shift |
| Max. pulse frequency at the external input (pin 2 / white wire) | ≤ 1,000 Hz Switching signal |
| Switching signal QL1 | Switching output to measuring value switching thresholds |
| Measuring value | Speed measurement value / length measurement value ## Diagnosis |
| Device status | Yes |
| Quality of teach | Yes |
| Quality of run | Yes, Contamination display ## Certificates |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| China Compulsory Product Certification (CCC) exempt | ✔ |
| ECOLAB certificate | ✔ |
| IO-Link certificate | ✔ |
| Photobiological safety (DIN EN 62471) certificate | ✔ ## Classifications |
下载资料
- datasheet WL4SC-3P2232A72 (485 KB)
