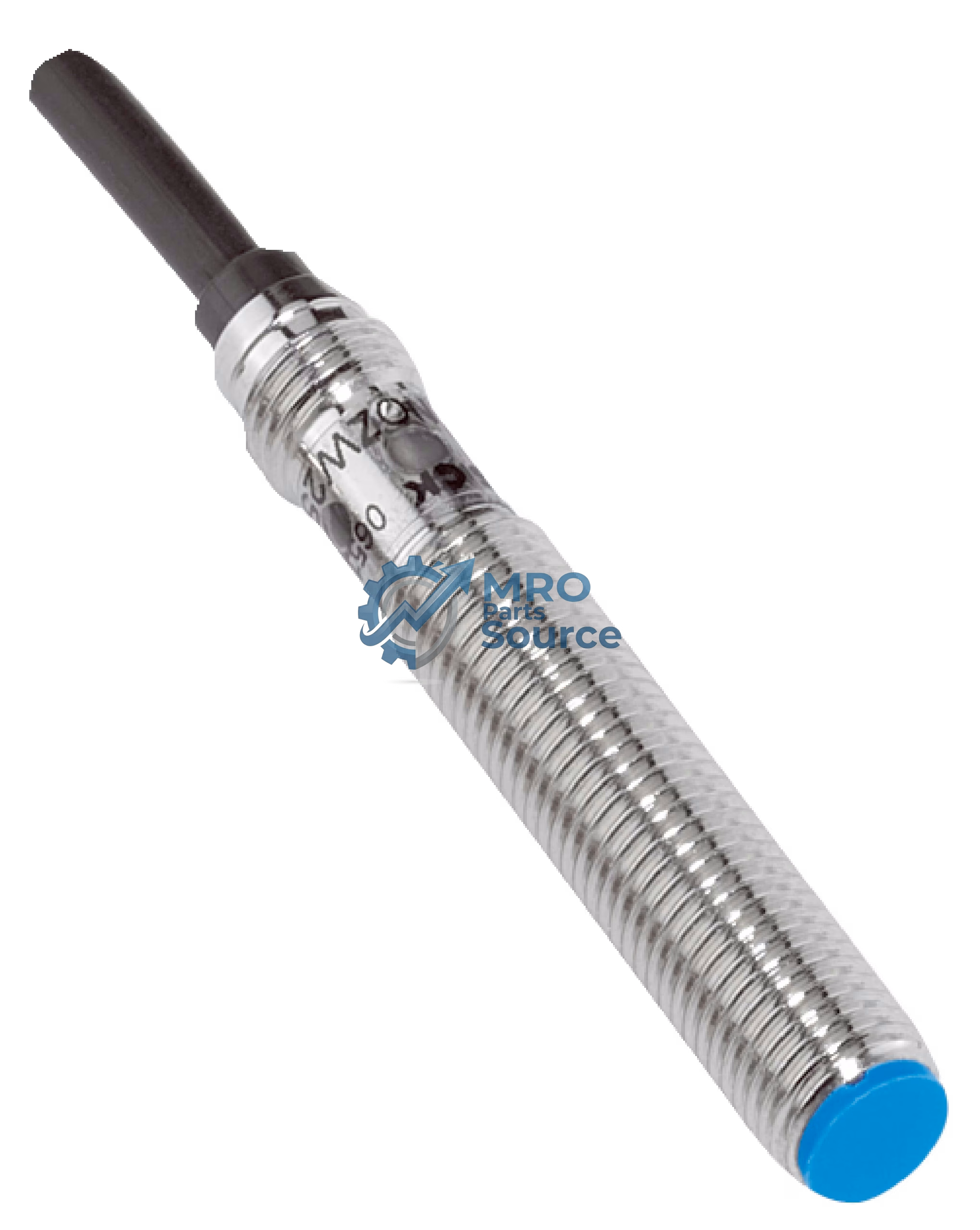

SICK IME08-04BPSZW2S 电感式接近传感器
订货号: 1079510
SICK IME08-04BPSZW2S 电感式接近传感器 — datasheet、规格参数、订货号查询与原装正品采购
获取报价 / 询盘
产品概述
| 设计构造 | 米 |
| 外壳形状 | 标准结构形式 |
| 螺纹尺寸 | M8 x 1 |
| 直径 | Ø 8 mm |
| 触发感应距离 Sn | 4 mm |
| 安全接通距离 Sa | 3.24 mm |
| 安装在金属 | 准齐平 |
| 开关频率 | 500 Hz |
| 连接类型 | 电缆，3 芯, 2 m |
| 开关量输出 | PNP |
| 开关量输出详情 | PNP |
| 输出功能 | 常开接点 |
| 电气规格 | DC 3 线 |
| 外壳防护等级 | IP67 1) |
| 特殊特征 | 4 倍触发感应距离 |
| 供货范围 | 紧固螺母，黄铜，镀镍 (2 x) 1) 根据 EN 60529. |
技术规格
| Mechanics/electronics | |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | ≤ 10 % |
| Voltage drop | ≤ 2 V 1) |
| Time delay before availability | ≤ 50 ms |
| Hysteresis | 1 % ... 15 % |
| Reproducibility | ≤ 5 % 2) 3) |
| Temperature drift (of Sr) | ± 10 % |
| EMC | According to EN 60947-5-2 |
| Continuous current Ia | ≤ 200 mA |
| No load current | ≤ 10 mA |
| Cable material | PVC |
| Conductor size | 0.25 mm² |
| Cable diameter | Ø 3.9 mm |
| Short-circuit protection | ✔ |
| Power-up pulse protection | ✔ |
| Shock and vibration resistance | 30 g, 11 ms/10 Hz ... 55 Hz, 1 mm |
| Ambient operating temperature | –25 °C ... +75 °C |
| Ambient temperature, storage | –25 °C ... +75 °C |
| Housing material | Brass, nickel-plated |
| Sensing face material | Plastic, PA 66 |
| Housing length | 52 mm |
| Thread length | 34 mm |
| Tightening torque, max. | ≤ 5 Nm |
| UL File No. | NRKH.E181493 1) At Ia max.2) Supply voltage UB and constant ambient temperature Ta.3) Of Sr. |
| Safety-related parameters | |
| MTTFD | 1,735 years |
| DCavg | 0 % |
| Reduction Factors | |
| Note | The values are reference values which may vary |
| St37 steel (Fe) | 1 |
| Stainless steel (V2A, 304) | Approx. 0.75 |
| Aluminum (Al) | Approx. 0.46 |
| Copper (Cu) | Approx. 0.42 |
| Brass (Br) | Approx. 0.56 ## Installation note |
| Remark | Associated graphic see "Installation" |
| A | 4 mm |
| B | 20 mm |
| C | 8 mm |
| D | 12 mm |
| E | 1 mm |
| F | 30 mm ## Certificates |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| China Compulsory Product Certification (CCC) exempt | ✔ |
| cULus certificate | ✔ ## Classifications |
| ECLASS 5.1.4 | 27270101 |
| ECLASS 6.0 | 27270101 |
| ECLASS 7.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 10.0 | 27270101 |
| ECLASS 11.0 | 27270101 |
| ECLASS 12.0 | 27274001 |
| ECLASS 13.0 | 27274001 |
| ECLASS 14.0 | 27274001 |
| ECLASS 15.0 | 27274001 |
| ETIM 6.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| ETIM 9.0 | EC002714 |
| ETIM 10.0 | EC002714 |
| UNSPSC 091201.0 | 39121500 |
| UNSPSC 100501.0 | 39121500 |
| UNSPSC 111201.0 | 39121500 |
| UNSPSC 120901.0 | 39121500 |
| UNSPSC 131201.0 | 39122230 |
| UNSPSC 140801.0 | 39122230 |
| UNSPSC 151101.0 | 39122230 |
| UNSPSC 160901.0 | 39122230 |
| UNSPSC 171001.0 | 39122230 |
| UNSPSC 180801.0 | 39122230 |
| UNSPSC 190501.0 | 39122230 |
| UNSPSC 200601.0 | 39122230 |
| UNSPSC 210901.0 | 39122230 |
| UNSPSC 220601.0 | 39122230 |
| UNSPSC 230701.0 | 39122230 |
| UNSPSC 240301.0 | 39122230 |
| UNSPSC 250901.0 | 39122230 |
| UNSPSC 260801.0 | 39122230 |
