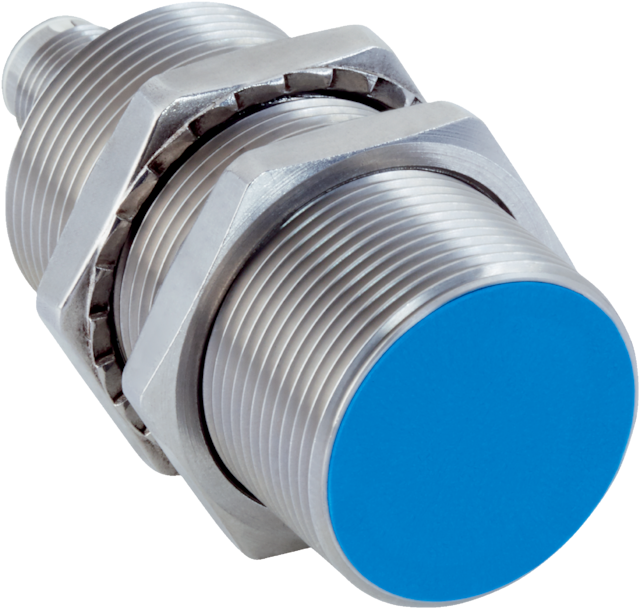

SICK IMB30-15BPSVC0SX01 接近传感器

订货号: 1099573

SICK IMB30-15BPSVC0SX01 接近传感器 — datasheet、规格参数、订货号查询与原装正品采购

获取报价 / 询盘

产品概述

设计构造	米
外壳形状	标准结构形式
螺纹尺寸	M30 x 1,5
直径	Ø 30 mm
触发感应距离 Sn	15 mm
安全接通距离 Sa	12.15 mm
安装在金属	齐平
开关频率	500 Hz
连接类型	插头，M12，4 针 1)
开关量输出	PNP
开关量输出详情	PNP
输出功能	常开接点
电气规格	DC 3 线
外壳防护等级	IP67 2)
特殊特征	耐冷却剂或者润滑油影响, 可视化调节指示器, 耐温性, ATEX
特殊应用	冷却剂和润滑剂区域, 移动式工作设备, 恶劣的使用条件, 爆炸性环境
供货范围	紧固螺母，不锈钢 V2A，带锁紧齿 (2 x) 电缆外壳/罩盖

Mechanics/electronics
Supply voltage	10 V DC ... 30 V DC
Ripple	≤ 10 %
Voltage drop	≤ 2 V 1)
Hysteresis	3 % ... 20 %
Reproducibility	≤ 2 % 2) 3)
Temperature drift (of Sr)	± 10 %
EMC	According to EN 60947-5-2
Continuous current Ia	≤ 200 mA 4)
No load current	≤ 10 mA
Short-circuit protection	✔
Power-up pulse protection	✔
Shock and vibration resistance	100 g / 2 ms / 500 cycles; 150 g / 1 Mio cycles; 10 Hz ... 55 Hz / 1 mm; 55 Hz ... 500 Hz / 60 g
Ambient operating temperature	–20 °C ... +95 °C
Housing material	Stainless steel V2A, DIN 1.4305 / AISI 303
Sensing face material	Plastic, LCP
Housing length	70 mm
Thread length	52 mm
Tightening torque, max.	Typ. 100 Nm 5)Typ. 100 Nm 6)
ATEX marking	II 3G Ex ec IIC T4 Gc X, II 3D Ex tc IIIC T135°C Dc X
Ex area category	3G, 3D
Protection class	III
UL File No.	E181493
Safety-related parameters
MTTFD	1,971 years
DCavg	0 % ## Communication interface
Communication interface	IO-Link V1.0
Communication Interface detail	COM2 (38,4 kBaud)
Process data length	1 Byte
Process data structure	Bit 0 = Sr reachedBit 1 = Sa reached
Reduction Factors
Note	The values are reference values which may vary
St37 steel (Fe)	1
Stainless steel (V2A, 304)	Approx. 0.62
Aluminum (Al)	Approx. 0.26
Copper (Cu)	Approx. 0.17
Brass (Br)	Approx. 0.27 ## Installation note
Remark	Associated graphic see "Installation"
B	40 mm
C	30 mm
D	45 mm
F	120 mm
