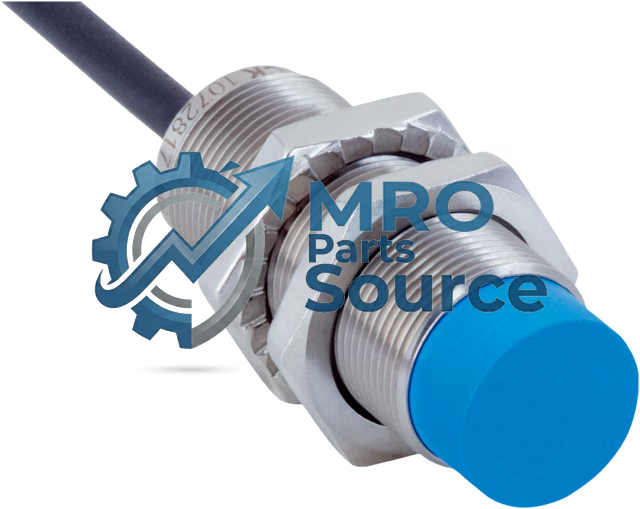

SICK IMB18-12NPSVU2S 接近传感器
订货号: 1072817
SICK IMB18-12NPSVU2S 接近传感器 — datasheet、规格参数、订货号查询与原装正品采购
获取报价 / 询盘
产品概述
| 设计构造 | 米 |
| 外壳形状 | 标准结构形式 |
| 螺纹尺寸 | M18 x 1 |
| 直径 | Ø 18 mm |
| 触发感应距离 Sn | 12 mm |
| 安全接通距离 Sa | 9.72 mm |
| 安装在金属 | 非齐平 |
| 开关频率 | 1,000 Hz |
| 连接类型 | 电缆，3 芯, 2 m |
| 开关量输出 | PNP |
| 开关量输出详情 | PNP |
| 输出功能 | 常开接点 |
| 电气规格 | DC 3 线 |
| 外壳防护等级 | IP68 1) IP69K 2) |
| 特殊特征 | 耐冷却剂或者润滑油影响, 可视化调节指示器, 耐温性 |
| 特殊应用 | 冷却剂和润滑剂区域, 移动式工作设备, 恶劣的使用条件 |
| 供货范围 | 紧固螺母，不锈钢 V2A，带锁紧齿 (2 x) |
- 根据 EN 60529.
- 根据 ISO 20653：2013-03.
技术规格
| Mechanics/electronics | |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | ≤ 10 % |
| Voltage drop | ≤ 2 V 1) |
| Hysteresis | 3 % ... 20 % |
| Reproducibility | ≤ 2 % 2) 3) |
| Temperature drift (of Sr) | ± 10 % |
| EMC | According to EN 60947-5-2 |
| Continuous current Ia | ≤ 200 mA |
| No load current | ≤ 10 mA |
| Cable material | PUR |
| Conductor size | 0.34 mm² |
| Cable diameter | Ø 4.5 mm |
| Short-circuit protection | ✔ |
| Power-up pulse protection | ✔ |
| Shock and vibration resistance | 100 g / 2 ms / 500 cycles; 150 g / 1 Mio cycles; 10 Hz ... 55 Hz / 1 mm; 55 Hz ... 500 Hz / 60 g |
| Ambient operating temperature | –40 °C ... +100 °C |
| Housing material | Stainless steel V2A, DIN 1.4305 / AISI 303 |
| Sensing face material | Plastic, LCP |
| Housing length | 50 mm |
| Thread length | 38 mm |
| Tightening torque, max. | Typ. 60 Nm 4)Typ. 90 Nm 5) |
| Protection class | III |
| UL File No. | E181493 |
| Safety-related parameters | |
| MTTFD | 1,971 years |
| DCavg | 0 % ## Communication interface |
| Communication interface | IO-Link V1.0 |
| Communication Interface detail | COM2 (38,4 kBaud) |
| Process data length | 1 Byte |
| Process data structure | Bit 0 = Sr reachedBit 1 = Sa reached |
| Reduction Factors | |
| Note | The values are reference values which may vary |
| St37 steel (Fe) | 1 |
| Stainless steel (V2A, 304) | Approx. 0.7 |
| Aluminum (Al) | Approx. 0.43 |
| Copper (Cu) | Approx. 0.37 |
| Brass (Br) | Approx. 0.43 ## Installation note |
| Remark | Associated graphic see "Installation" |
| A | 18 mm |
| B | 45 mm |
| C | 18 mm |
| D | 36 mm |
| E | 12 mm |
| F | 96 mm |
