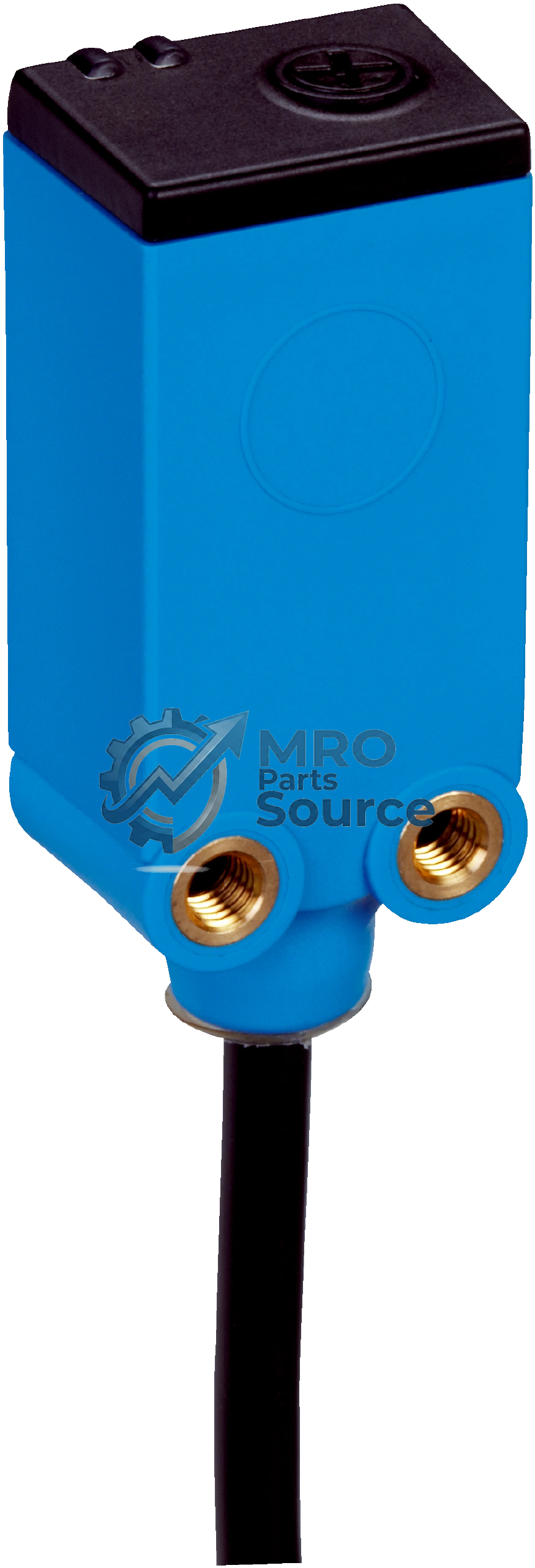

SICK CQ4-08EPSKU1 电容接近传感器
订货号: 6051009
SICK CQ4-08EPSKU1 电容接近传感器 — datasheet、规格参数、订货号查询与原装正品采购
获取报价 / 询盘
产品概述
| 设计构造 | 方形 |
| 尺寸(宽 x 高 x 深) | 16 mm x 39.5 mm x 12 mm |
| 触发感应距离 Sn | 1 mm ... 8 mm 1) 1 mm ... 6 mm 2) |
| 安全接通距离 Sa | 5.76 mm |
| 结构形式 | 非齐平 齐平 |
| 开关频率 | 100 Hz |
| 连接类型 | 电缆，3 芯, 2 m 3) |
| 开关量输出 | PNP |
| 开关量输出详情 | PNP |
| 输出功能 | 常开接点 |
| 电气规格 | DC 3 线 设置 电位计 |
| 灵敏度 (5 转) | |
| 设置 | |
| 电位计 | 灵敏度 (5 转) |
| 外壳防护等级 | IP67 4) |
| 供货范围 | 用于调整电位计的螺丝刀 (1 x) |
- 在非齐平安装时.
- 在平齐的安装时.
- 低于 0°C 时导线不能发生形变.
- 根据 EN 60529.
技术规格
| Mechanics/electronics | |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | ≤ 10 % |
| Voltage drop | ≤ 2.5 V DC 1) |
| Current consumption | 12 mA 2) |
| Time delay before availability | ≤ 200 ms |
| Hysteresis | 4 % ... 20 % 3) |
| Reproducibility | ≤ 5 % 4) 5) |
| Temperature drift (of Sr) | ± 20 % |
| EMC | According to EN 60947-5-2 |
| Continuous current Ia | ≤ 150 mA |
| Cable material | PVC |
| Short-circuit protection | ✔ |
| Power-up pulse protection | ✔ |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| Ambient operating temperature | –20 °C ... +75 °C |
| Ambient temperature, storage | –40 °C ... +85 °C |
| Housing material | Plastic, ABS |
| Sensing face material | Plastic |
| UL File No. | NRKH.E191603 |
| Safety-related parameters | |
| MTTFD | 1,344 years |
| DCavg | 0 % |
| TM (mission time) | 20 years |
| Reduction Factors | |
| Note | The values are reference values which may vary |
| Metal | 1 |
| Water | 1 |
| PVC | Approx. 0.4 |
| Oil | Approx. 0.25 |
| Glass | 0.6 |
| Ceramics | 0.5 |
| Alcohol | 0.7 |
| Wood | 0.2 ... 0.7 ## Installation note |
| Remark | Associated graphic see "Installation" |
| A | 16 mm |
| B | 16 mm |
| F | 48 mm |
下载资料
- datasheet CQ4-08EPSKU1 (781 KB)
