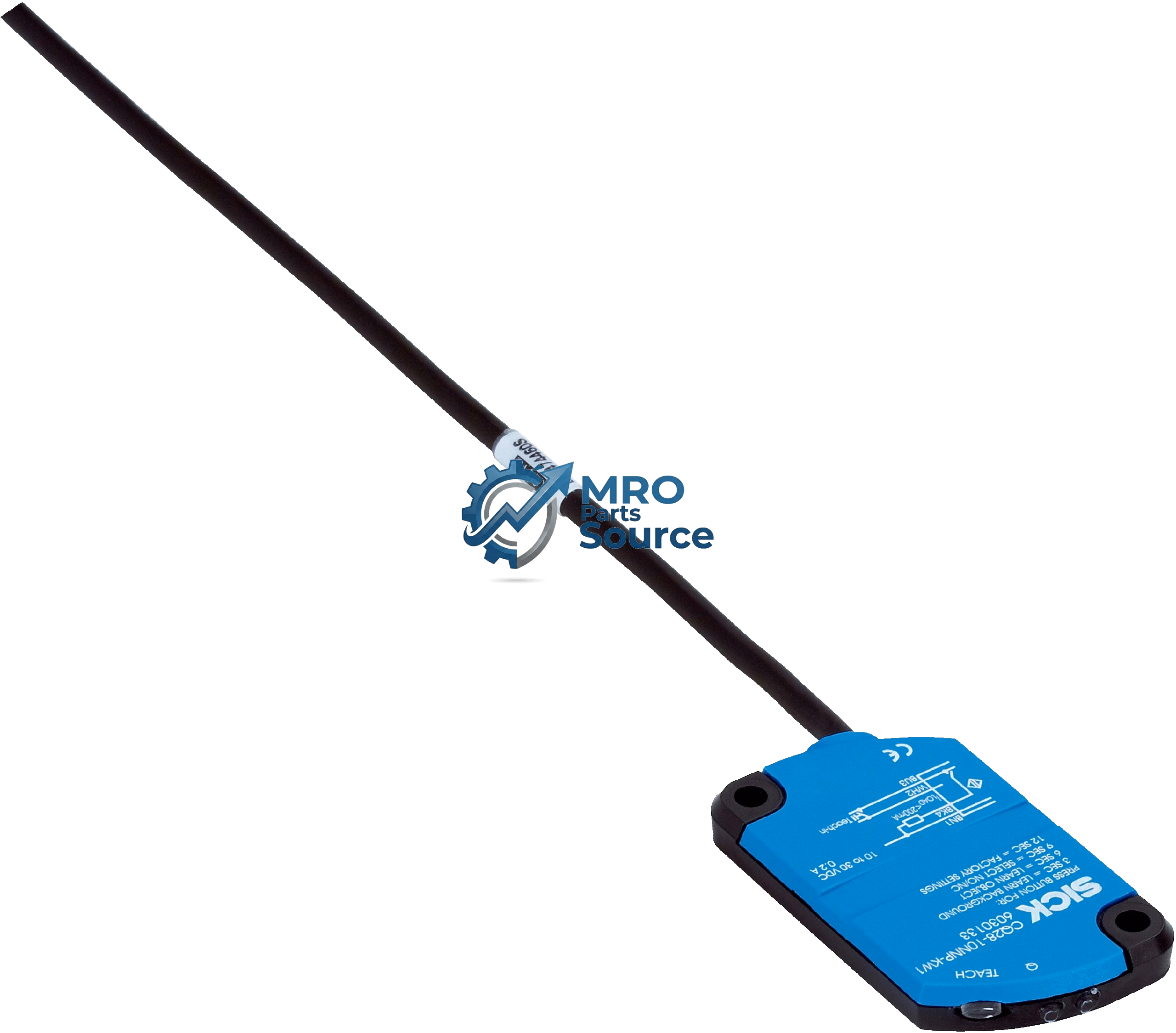

SICK CQ28-10NPP-KW1 电容接近传感器
订货号: 6030132
SICK CQ28-10NPP-KW1 电容接近传感器 — datasheet、规格参数、订货号查询与原装正品采购
获取报价 / 询盘
产品概述
| 设计构造 | 方形 |
| 尺寸(宽 x 高 x 深) | 28 mm x 46 mm x 5.5 mm |
| 触发感应距离 Sn | 1 mm ... 10 mm |
| 安全接通距离 Sa | 7.2 mm |
| 结构形式 | 非齐平 |
| 开关频率 | 10 Hz |
| 连接类型 | 电缆 4针, 2 m 1) |
| 开关量输出 | PNP |
| 开关量输出详情 | PNP |
| 输出功能 | 常开或者常闭 |
| 电气规格 | DC 4 线 设置 示教按键 灵敏度 电缆/引脚 |
| 灵敏度 | |
| 设置 | |
| 示教按键 | 灵敏度 |
| 电缆/引脚 | 灵敏度 |
| 外壳防护等级 | IP68 2) |
- 低于 0°C 时导线不能发生形变.
- 根据 EN 60529.
技术规格
| Mechanics/electronics | |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | ≤ 10 % |
| Voltage drop | ≤ 2.5 V DC 1) |
| Current consumption | 12 mA 2) |
| Time delay before availability | ≤ 300 ms |
| Reproducibility | ≤ 5 % 3) 4) |
| Temperature drift (of Sr) | ± 10 % |
| EMC | According to EN 60947-5-2 5) |
| Continuous current Ia | ≤ 200 mA |
| Cable material | PVC |
| Conductor size | 0.14 mm² |
| Short-circuit protection | ✔ |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| Ambient operating temperature | –20 °C ... +85 °C |
| Ambient temperature, storage | –40 °C ... +85 °C |
| Housing material | Plastic, PBT |
| Sensing face material | Plastic |
| UL File No. | NRKH.E191603 |
| Safety-related parameters | |
| MTTFD | 1,112 years |
| DCavg | 0 % |
| TM (mission time) | 20 years |
| Reduction Factors | |
| Note | The values are reference values which may vary |
| Metal | 1 |
| Water | 1 |
| PVC | Approx. 0.4 |
| Oil | Approx. 0.25 |
| Glass | 0.6 |
| Ceramics | 0.5 |
| Alcohol | 0.7 |
| Wood | 0.2 ... 0.7 ## Installation note |
| Remark | Associated graphic see "Installation" |
| A | 27.6 mm |
| B | 27.6 mm |
| F | 6 x Sn (max. 60 mm) |
