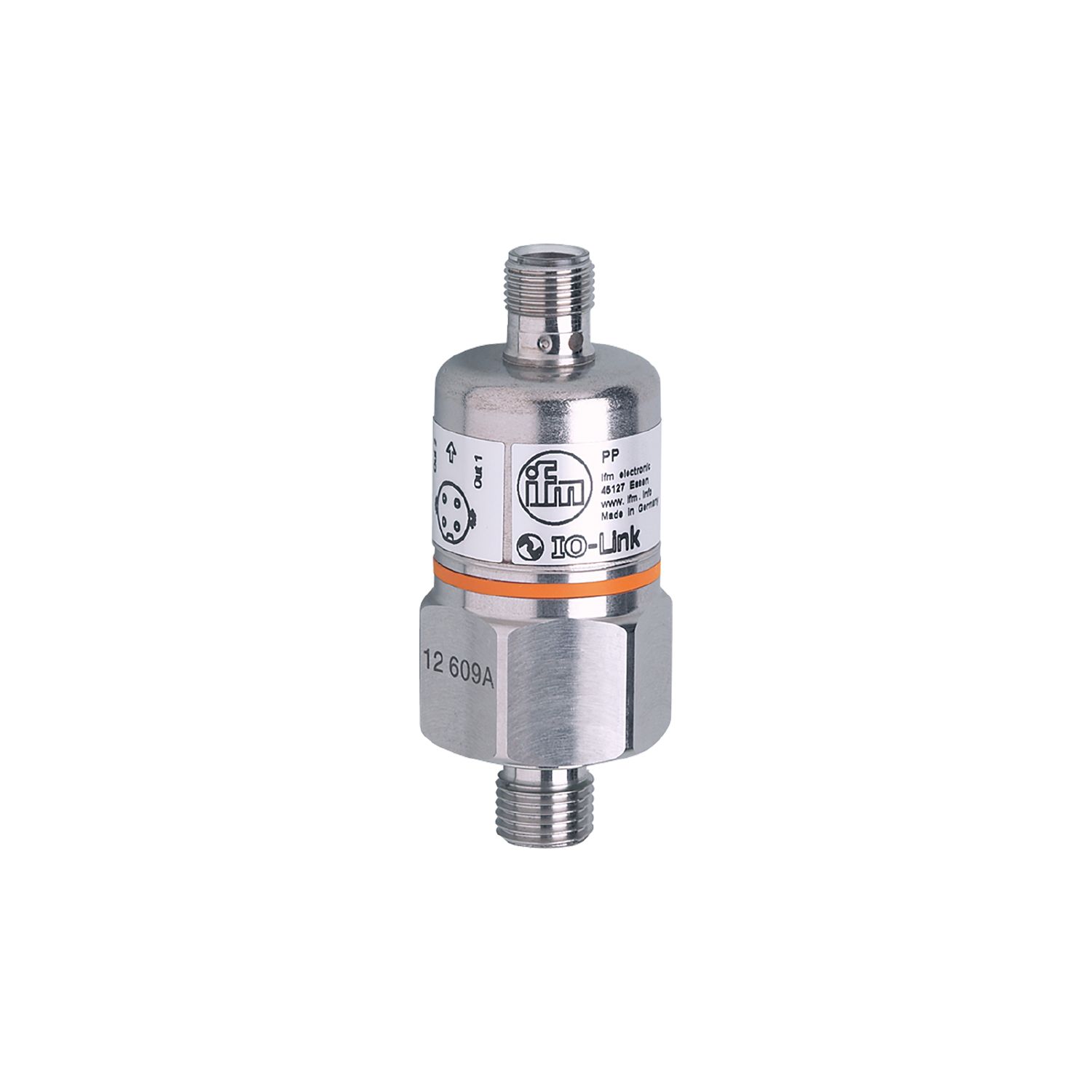

IFM PP7553 压力传感器
带陶瓷测量单元的压力开关
IFM PP7553 压力传感器 — datasheet、规格参数、订货号查询与原装正品采购
获取报价 / 询盘
产品亮点
- 坚固的设计，适用于严苛的工业环境
- 2 个开关输出，可将其中一个配置为诊断输出
- 较高的抗冲击和振动能力
- 高于 1 亿次压力周期的使用寿命
- 通过 IO-Link 的友好通信和参数化
产品概述
| 产品标识 | 电子压力传感器 |
| 应用 | 用于工业应用适用于铁路应用场景 |
| 系统接口 | 螺纹连接 G 1/4 外螺纹 内螺纹:M5 |
| 工作电压DC | 9.6...36 V |
| 电压类型 | DC |
| 电气设计 | PNP |
| 输出数量 | 2 |
| 输出功能 | 常开/常闭; (可设定参数) |
| 输出信号 | 开关信号; IO-Link; (可配置) |
| 测量范围 | 0...25 bar0...363 psi0...2.5 MPa |
| 接口 | M12 接插件 |
| 原材料 | 不锈钢(1.4301/304); FKM; EPDM/X; PA |
| 材料(接液部件) | 不锈钢(1.4305/303); 陶瓷; FKM |
| 显示 | 操作: 2 x LED 绿色; 开关状态: 2 x LED 黄色 |
| 环境温度 | -25...85 °C |
| 介质温度 | -25...90 °C |
| 通信接口 | IO-Link |
| 产品 | 易福门或同价值的 |
| 型号 | PP7553 |
技术规格
| Product characteristics | |
| Number of inputs and outputs | Number of digital outputs: 2 |
| Measuring range | 0...25 bar 0...363 psi 0...2.5 MPa |
| Process connection | threaded connection G 1/4 external thread internal thread:M5 |
| Application | |
| Application | for industrial applications; for railway applications |
| Media | liquids and gases |
| Medium temperature[°C] | -25...90 |
| Min. burst pressure | 350 bar 5075 psi 35 MPa |
| Pressure rating | 150 bar 2175 psi 15 MPa |
| Type of pressure | relative pressure |
| Electrical data | |
| Operating voltage[V] | 9.6...36 DC; (communication mode: 18...32) |
| Current consumption[mA] | < 45 |
| Min. insulation resistance[MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time[s] | 0.3 |
| Inputs / outputs | |
| Number of inputs and outputs | Number of digital outputs: 2 |
| Outputs | |
| Total number of outputs | 2 |
| Output signal | switching signal; IO-Link; (configurable) |
| Electrical design | PNP |
| Number of digital outputs | 2 |
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC[V] | 2 |
| Permanent current rating of switching output DC[mA] | 250 |
| Switching frequency DC[Hz] | 170 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
| Measuring/setting range | |
| Measuring range | 0...25 bar 0...363 psi 0...2.5 MPa |
| Set point SP | 0.2...25 bar 4...362 psi 0.02...2.5 MPa |
| Reset point rP | 0.1...24.9 bar 2...360 psi 0.01...2.49 MPa |
| In steps of | 0.1 bar 2 psi 0.01 MPa |
| Factory setting | |
| SP1 = 6.3 bar rP1 = 5.8 bar | |
| SP2 = 18.8 bar rP2 = 18.3 bar | |
| Accuracy / deviations | |
| Switch point accuracy[% of the span] | < ± 0,5 |
| Repeatability[% of the span] | < ± 0,1; (with temperature fluctuations < 10 K) |
| Characteristics deviation[% of the span] | < ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting) |
| Zero-point stabilisation[% of the span] | |
| switching output, display | 1,0 |
| Zero-point stabilisation[% of the span] | |
| IO-Link | 1,0; (see operating instructions zero-point behaviour) |
| Hysteresis deviation[% of the span] | < ± 0,1 |
| Long-term stability[% of the span] | < ± 0,1; (per year) |
| Temperature coefficient zero point[% of the span / 10 K] | < ± 0,2; (0...80 °C) |
| Temperature coefficient span[% of the span / 10 K] | < ± 0,2; (0...80 °C) |
| Response times | |
| Response time[ms] | < 3 |
| Damping process value dAP in steps[s] | 0,003 - 0,006 - 0,010 - 0,017 - 0,060 - 0,125 - 0,250 - 0,500 |
| Interfaces | |
| Communication interface | IO-Link |
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.0 |
| SIO mode | yes |
| Required master port type | A |
| Process data analogue | 1 |
| Process data binary | 2 |
| Min. process cycle time[ms] | 2.3 |
| Supported DeviceIDs | |
| Type of operation | DeviceID |
| default | 5 |
| Operating conditions | |
| Ambient temperature[°C] | -25...85 |
| Storage temperature[°C] | -40...100 |
| Protection | IP 68; (7 days / 1 m water depth / 0.1 bar) |
| Tests / approvals | |
| EMC | |
| immunity | EN 61000-6-2 |
| EN 61000-4-2 ESD | 4 kV contact discharge / 15 kV air discharge |
| EN 61000-4-3 HF radiated | 20 V/m |
| EN 61000-4-4 Burst | 4 kV coupling clamp |
| EN 61000-4-5 Surge | 0,5 kV supply / 1 kV signal for DC units |
| EN 61000-4-6 HF conducted | 10 V |
| immunity | according to the automotive directive 1995/54/EC / 04/104EG / 05/83/EG |
| absorber chamber test to ISO 11452-2: | 80 V/m |
| Shock resistance | |
| DIN IEC 60068-2-27 / DIN IEC 60068-2-29 | 1000 g |
| DIN EN 61373 | category 3 |
| Vibration resistance | |
| DIN IEC 68-2-6 | 20 g (10...2000 Hz) |
| DIN EN 60068-2-64 | 14 g |
| DIN EN 61373 | category 2 |
| MTTF[years] | 310 |
| Pressure Equipment Directive | Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
| Railway applications | |
| DIN EN 50155 | Klasse T3, C1, S1 |
| Mechanical data | |
| Weight[g] | 226.5 |
| Housing | cylindrical |
| Dimensions[mm] | Ø 30 / L = 79.5 |
| Materials | stainless steel (304/1.4301); FKM; EPDM/X; PA |
| Materials (wetted parts) | stainless steel (303/1.4305); ceramics; FKM |
| Min. pressure cycles | 100 million |
| Process connection | threaded connection G 1/4 external thread internal thread:M5 |
| Restrictor element integrated | no (can be retrofitted) |
| Displays / operating elements | |
| Display | |
| operation | 2 x LED, green |
| switching status | 2 x LED, yellow |
| Teach function | yes |
| Remarks | |
| Remarks | |
| with reference to UL: "limited voltage" with overcurrent protection in accordance with UL508 | |
| Pack quantity | 1 pcs. |
| Electrical connection | |
| Connector | 1 x M12; coding: A; Contacts: 4 |
