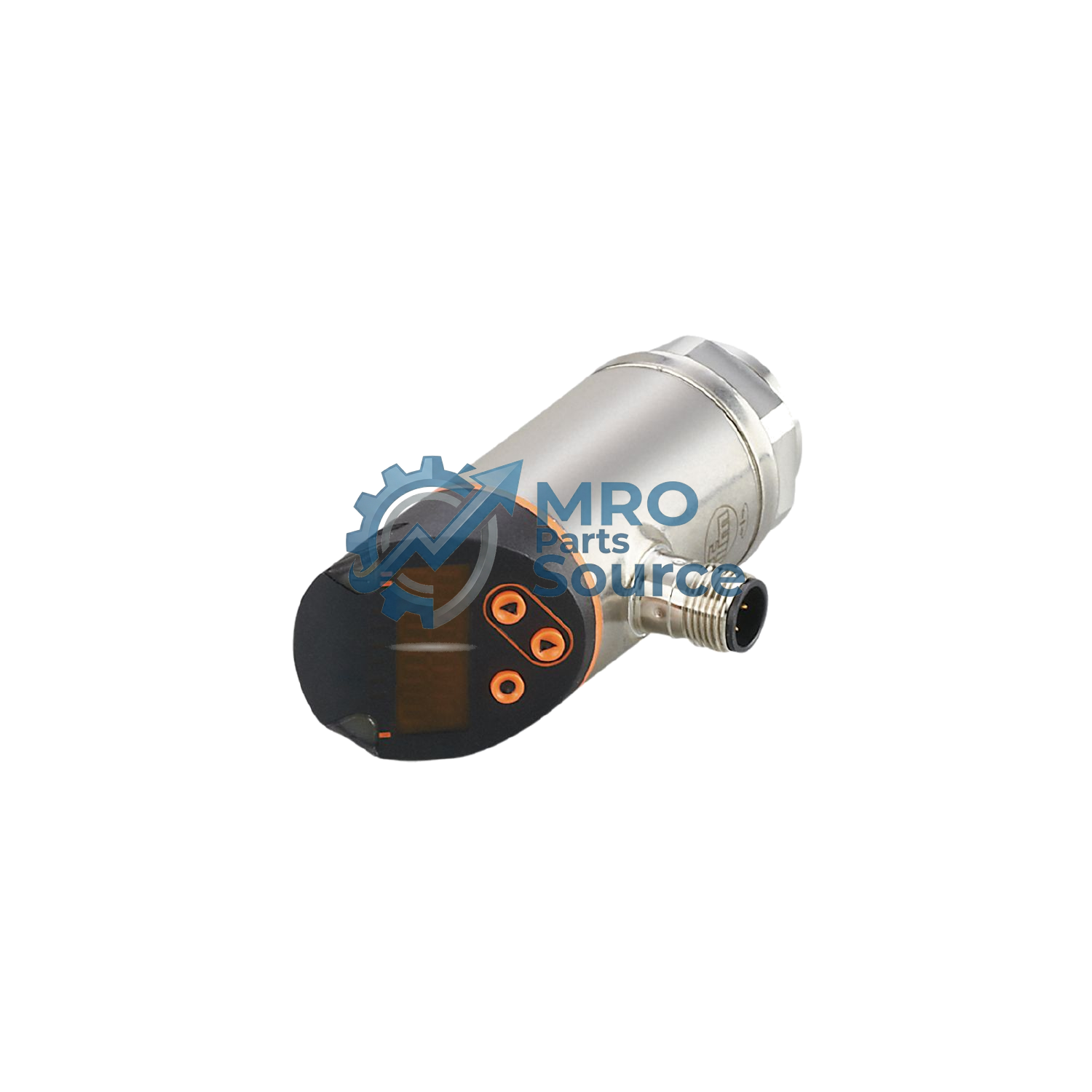

IFM PN7092 压力传感器

Name: IFM PN7092
Brand: IFM

带显示屏的压力传感器

IFM PN7092 压力传感器 — datasheet、规格参数、订货号查询与原装正品采购

获取报价 / 询盘

立即询价 WhatsApp 询盘邮件询价

产品亮点

两个开关输出，其中一个带有 IO-Link 通信接口
红/绿显示，用于明确标识可接受的范围
管路连接可进行旋转，方便进行最佳的排列
高负载保护，长期稳定性
坚固的设计，适用于严苛的工业环境

产品概述

产品标识	电子压力传感器
应用	用于工业应用
系统接口	螺纹连接 G 1/4 内螺纹
工作电压DC	18...30 V
电压类型	DC
电气设计	PNP/NPN
输出数量	2
输出功能	常开/常闭; (可设定参数)
输出信号	开关信号; IO-Link; (可配置)
测量范围	0...100 bar0...1450 psi0...10 MPa
接口	M12 接插件
原材料	不锈钢(1.4404 / 316L); PBT+PC-GF30; PBT-GF20; PC
材料(接液部件)	不锈钢(1.4404 / 316L); 陶瓷; FKM
显示	显示单位: 3 x LED 绿色 (bar, psi, MPa); 开关状态: 2 x LED 黄色; 测量值: 字母数字显示红色/绿色 4位数字
环境温度	-25...80 °C
介质温度	-25...80 °C
通信接口	IO-Link
产品	易福门或同价值的
型号	PN7092

技术规格

Product characteristics
Number of inputs and outputs	Number of digital outputs: 2
Measuring range	0...100 bar 0...1450 psi 0...10 MPa
Process connection	threaded connection G 1/4 internal thread
Application
Special feature	Gold-plated contacts
Measuring element	ceramic-capacitive pressure measuring cell
Application	for industrial applications
Media	Liquids
Conditionally suitable for	use in gases at pressures > 25 bar only on request
Medium temperature[°C]	-25...80
Min. burst pressure	650 bar 9400 psi 65 MPa
Pressure rating	300 bar 4350 psi 30 MPa
Vacuum resistance
-1000 mbar	-0.1 MPa
Type of pressure	relative pressure
Electrical data
Operating voltage[V]	18...30 DC; (to SELV/PELV)
Current consumption[mA]	< 35
Min. insulation resistance[MΩ]	100; (500 V DC)
Protection class	III
Reverse polarity protection	yes
Power-on delay time[s]	< 0.3
Integrated watchdog	yes
Inputs / outputs
Number of inputs and outputs	Number of digital outputs: 2
Outputs
Total number of outputs	2
Output signal	switching signal; IO-Link; (configurable)
Electrical design	PNP/NPN
Number of digital outputs	2
Output function	normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC[V]	2.5
Permanent current rating of switching output DC[mA]	150; (200 (...60 °C) 250 (...40 °C))
Switching frequency DC[Hz]	< 170
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes
Measuring/setting range
Measuring range	0...100 bar 0...1450 psi 0...10 MPa
Factory setting / CMPT = 2
Set point SP	1...100 bar 10...1450 psi 0.1...10 MPa
Reset point rP	0.5...99.5 bar 5...1445 psi 0.05...9.95 MPa
Min. difference between SP and rP	0.5 bar 10 psi 0.05 MPa
In steps of	0.5 bar 5 psi 0.05 MPa
Status_B High Resolution / CMPT = 3
Set point SP	0.8...100 bar 12...1450 psi 0.08...10 MPa
Reset point rP	0.3...99.5 bar 5...1443 psi 0.03...9.95 MPa
Min. difference between SP and rP	0.5 bar 8 psi 0.05 MPa
In steps of	0.1 bar 1 psi 0.01 MPa
Accuracy / deviations
Switch point accuracy[% of the span]	< ± 0,5
Repeatability[% of the span]	< ± 0,1; (with temperature fluctuations < 10 K)
Characteristics deviation[% of the span]	< ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting)
Hysteresis deviation[% of the span]	< ± 0,25
Long-term stability[% of the span]	< ± 0,05; (per 6 months)
Temperature coefficient zero point[% of the span / 10 K]	< ± 0,2; (-0...80 °C)
Temperature coefficient span[% of the span / 10 K]	< ± 0,2; (-0...80 °C)
Response times
Response time[ms]	< 3
Delay time programmable dS, dr[s]	0...50
Software / programming
Parameter setting options	hysteresis / window; normally open / normally closed; switching logic; switch-on/switch-off delay; Damping; Display unit
Interfaces
Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
SIO mode	yes
Required master port type	A; (when pin 2 not connected: B)
Process data analogue	1
Process data binary	2
Supported DeviceIDs
Type of operation	DeviceID
Factory setting / CMPT = 2	401
Status_B High Resolution / CMPT = 3	599
Note	For further information please see the IODD PDF file under "Downloads"
Factory setting / CMPT = 2
Profiles
Smart Sensor - SSP 0	Generic Profiled Sensor
Function	Device identification
Function	Process data variable
Function	Device diagnosis
Min. process cycle time[ms]	2.3
IO-Link resolution pressure
0.1 bar	0.01 MPa
IO-Link process data (cyclical)
function	bit length
pressure	14
binary switching information	2
IO-Link functions (acyclical)	application specific tag
Status_B High Resolution / CMPT = 3
Profiles
Smart Sensor - SSP 3.1	Measuring Sensor
Common - I&D	Identification and Diagnosis
Min. process cycle time[ms]	3
IO-Link resolution pressure
0.05 bar	0.005 MPa
IO-Link process data (cyclical)
function	bit length
pressure	16
device status	4
binary switching information	2
IO-Link functions (acyclical)	application specific tag
Operating conditions
Ambient temperature[°C]	-25...80
Storage temperature[°C]	-40...100
Protection	IP 65; IP 67
Tests / approvals
EMC
DIN EN 61000-6-2
DIN EN 61000-6-3
Shock resistance
DIN EN 60068-2-27	50 g (11 ms)
Vibration resistance
DIN EN 60068-2-6	20 g (10...2000 Hz)
MTTF[years]	260
UL approval
UL approval no.	J002
Pressure Equipment Directive	Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
Mechanical data
Weight[g]	272
Housing	cylindrical
Dimensions[mm]	Ø 34 / L = 90.7
Materials	stainless steel (316L/1.4404); PBT+PC-GF30; PBT-GF20; PC
Materials (wetted parts)	stainless steel (316L/1.4404); ceramics; FKM
Min. pressure cycles	100 million
Tightening torque[Nm]	25...35; (recommended tightening torque; depends on the lubrication, the seal and the pressure load)
Process connection	threaded connection G 1/4 internal thread
Restrictor element integrated	no (can be retrofitted)
Displays / operating elements
Display
Display unit	3 x LED, green (bar, psi, MPa)
switching status	2 x LED, yellow
measured values	alphanumeric display, red/green 4-digit
Remarks
Pack quantity	1 pcs.
Electrical connection
Connector	1 x M12; coding: A; Contacts: 4, gold-plated
