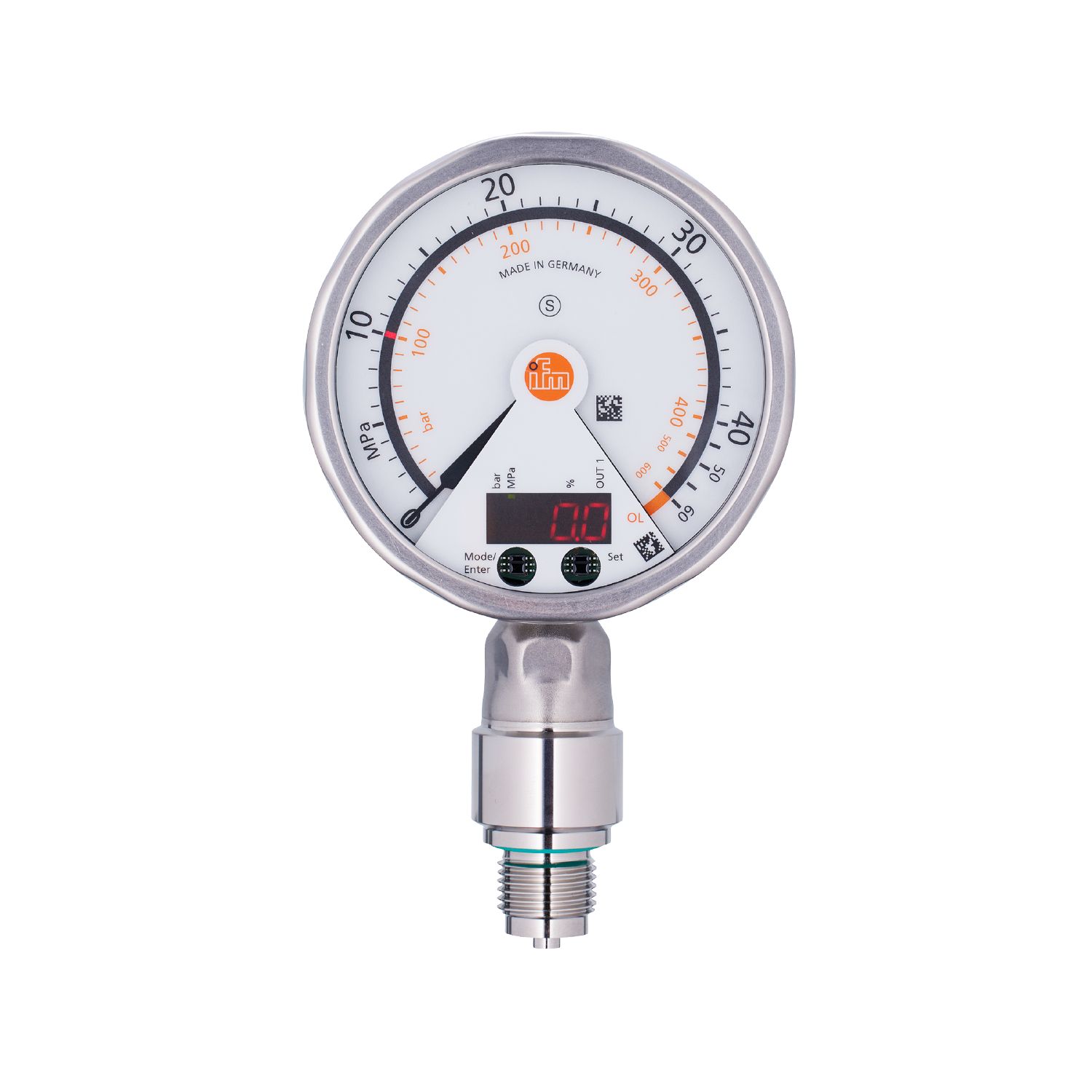

IFM PG2430 压力传感器
带模拟显示屏的压力传感器
IFM PG2430 压力传感器 — datasheet、规格参数、订货号查询与原装正品采购
获取报价 / 询盘
产品亮点
- 一个单元中集成模拟显示屏、压力开关和变送器
- 即使距离很远亦具有优秀的可读性
- 用于开关点指示，带有 LED 条形图的可旋转显示屏
- 可编程的开关输出和可调整的模拟输出
- 坚固的不锈钢外壳，适用于严苛的工业环境
产品概述
| 产品标识 | 电子压力传感器 带模拟显示器 |
| 应用 | 用于工业应用 |
| 系统接口 | 螺纹连接 G 1/2 外螺纹 |
| 工作电压DC | 18...32 V |
| 电压类型 | DC |
| 电气设计 | PNP/NPN |
| 输出数量 | 2 |
| 输出功能 | 常开/常闭; (可设定参数); 模拟 |
| 输出信号 | 开关信号; 模拟信号; (可配置) |
| 模拟电流输出 | 4...20, 可逆; (可调整量程) mA |
| 测量范围 | 0...400 bar0...40 MPa |
| 接口 | M12 接插件 |
| 原材料 | 不锈钢(1.4404 / 316L); PA; FKM; PTFE; 观察窗玻璃: 夹层安全玻璃 4 mm |
| 材料(接液部件) | Al2O3 (陶瓷); FKM; 不锈钢(1.4404 / 316L) |
| 显示 | 显示单位: 2 x LED 绿色; 开关状态: LED 黄色; 开关点: LED环(四周可见) 红色; 功能显示: 字母数字显示 红色 4位数字; 测量值: 模拟显示器 0...350° 当无电源时，指针和显示均看不见; 测量值: 字母数字显示 红色 4位数字 |
| 环境温度 | -20...80 °C |
| 介质温度 | -25...80 °C |
| 产品 | 易福门或同价值的 |
| 型号 | PG2430 |
技术规格
| Product characteristics | |
| Number of inputs and outputs | Number of digital outputs: 1; Number of analogue outputs: 1 |
| Measuring range | |
| 0...400 bar | 0...40 MPa |
| Process connection | threaded connection G 1/2 external thread |
| Application | |
| Special feature | Gold-plated contacts |
| Application | for industrial applications |
| Media | liquids and gases |
| Conditionally suitable for | use in gases at pressures > 25 bar only on request |
| Medium temperature[°C] | -25...80 |
| Min. burst pressure | |
| 1200 bar | 120 MPa |
| Pressure rating | |
| 800 bar | 80 MPa |
| Type of pressure | relative pressure |
| Electrical data | |
| Operating voltage[V] | 18...32 DC |
| Current consumption[mA] | < 70; (24 V) |
| Min. insulation resistance[MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time[s] | 6 |
| Integrated watchdog | yes |
| Inputs / outputs | |
| Number of inputs and outputs | Number of digital outputs: 1; Number of analogue outputs: 1 |
| Outputs | |
| Total number of outputs | 2 |
| Output signal | switching signal; analogue signal; (configurable) |
| Electrical design | PNP/NPN |
| Number of digital outputs | 1 |
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC[V] | 2 |
| Permanent current rating of switching output DC[mA] | 250 |
| Switching frequency DC[Hz] | 75 |
| Number of analogue outputs | 1 |
| Analogue current output[mA] | 4...20, invertible; (scalable) |
| Max. load[Ω] | (Ub - 10 V) / 20 mA |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
| Measuring/setting range | |
| Measuring range | |
| 0...400 bar | 0...40 MPa |
| Set point SP | |
| 2...600 bar | 0.2...60 MPa |
| Reset point rP | |
| 0...598 bar | 0...59.8 MPa |
| Analogue start point | |
| 0...500 bar | 0...50 MPa |
| Analogue end point | |
| 100...600 bar | 10...60 MPa |
| In steps of | |
| 1 bar | 0.1 MPa |
| Accuracy / deviations | |
| Switch point accuracy[% of the span] | < ± 0,6; (Turn down 1:1) |
| Repeatability[% of the span] | < ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1) |
| Characteristics deviation[% of the span] | < ± 0,35 (BFSL) / < ± 0,6 (LS); (Turn down 1:1; BFSL = Best Fit Straight Line) |
| Hysteresis deviation[% of the span] | < ± 0,5; (Turn down 1:1) |
| Long-term stability[% of the span] | < ± 0,1; (Turn down 1:1; per 6 months) |
| Temperature coefficient zero point[% of the span / 10 K] | < ± 0,3; (0...70 °C) |
| Temperature coefficient span[% of the span / 10 K] | < ± 0,3; (0...70 °C) |
| Response times | |
| Response time[ms] | < 9 |
| Damping process value dAP[s] | 0.01...30 |
| Damping for the analogue output dAA[s] | 0.01...30 |
| Step response time analogue output[ms] | 28 |
| Operating conditions | |
| Ambient temperature[°C] | -20...80 |
| Storage temperature[°C] | -40...100 |
| Protection | IP 67; IP 69K |
| Tests / approvals | |
| EMC | |
| EN 61000-4-2 ESD | 4 kV CD / 8 kV AD |
| EN 61000-4-3 HF radiated | 10 V/m |
| EN 61000-4-4 Burst | 2 kV |
| EN 61000-4-5 Surge | 0,5/1 kV |
| EN 61000-4-6 HF conducted | 10 V |
| CPA approval | |
| accuracy class | Class 1.0 |
| Shock resistance | |
| DIN EN 60068-2-27 | 50 g (11 ms) |
| Vibration resistance | |
| DIN EN 60068-2-6 | 10 g (10...2000 Hz) |
| MTTF[years] | 97 |
| Pressure Equipment Directive | Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
| Mechanical data | |
| Weight[g] | 571.2 |
| Dimensions[mm] | 169 x 100 x 57 |
| Materials | stainless steel (316L/1.4404); PA; FKM; PTFE; viewing glass: laminated safety glass 4 mm |
| Materials (wetted parts) | Al2O3 (ceramics); FKM; stainless steel (316L/1.4404) |
| Min. pressure cycles | 100 million |
| Process connection | threaded connection G 1/2 external thread |
| Restrictor element integrated | yes |
| Displays / operating elements | |
| Display | |
| Display unit | 2 x LED, green |
| switching status | LED, yellow |
| switch points | LED ring, red |
| function display | alphanumeric display, red 4-digit |
| measured values | analogue display, 0...350° rotatable, pointer not visible when unit disconnected |
| measured values | alphanumeric display, red 4-digit |
| With scale | yes |
| Extended display range (max.) | |
| 600 bar | 60 MPa |
| Remarks | |
| Remarks | |
| switch point accuracy in the extended display range: 1.5 % of the span | |
| Pack quantity | 1 pcs. |
| Electrical connection | |
| Connector | 1 x M12; coding: A; Contacts: 4, gold-plated |
