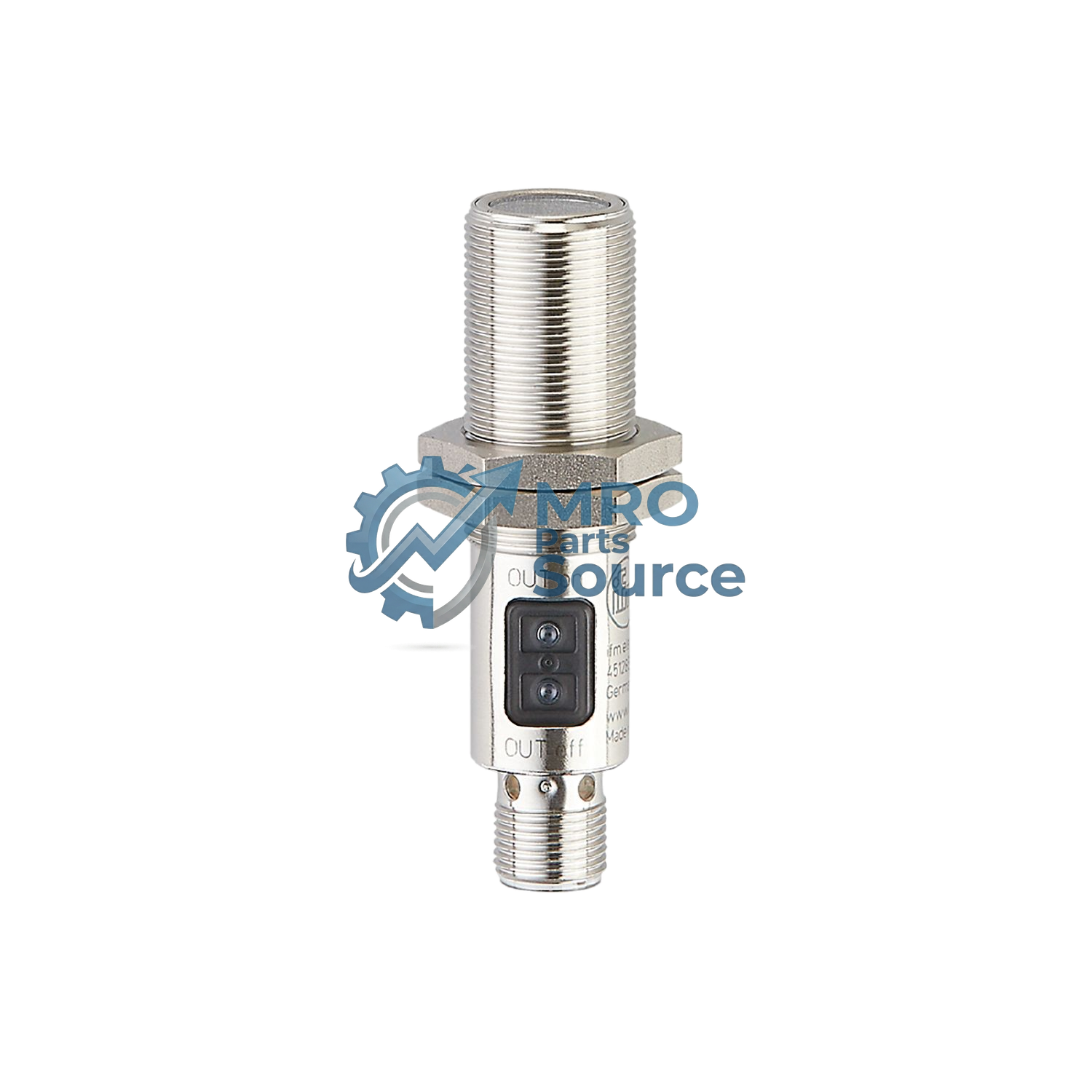

IFM OGH500 光电传感器
带背景消除的漫反射光电开关
IFM OGH500 光电传感器 — datasheet、规格参数、订货号查询与原装正品采购
获取报价 / 询盘
产品亮点
- 坚固的不锈钢外壳，适用于严苛的工业环境
- 精确的几何背景抑制
- 通过按钮对灵敏度进行直观设定
- 可编程亮通/暗通模式
- 多样的固定组件，用于快速方便的安装
产品概述
| 产品标识 | 漫反射光电开关 |
| 应用 | 工业应用/工厂自动化 |
| 电压类型 | DC |
| 工作电压DC | 10...36 V |
| 电气设计 | PNP |
| 输出功能 | 亮通和暗通模式; (可选) |
| 检测距离 | 15...300 mm |
| 光线种类 | 红光 |
| 外壳长度 | 72 mm |
| 接口 | M12 接插件 |
| 原材料 | 不锈钢(1.4404 / 316L); PA; LCP; EPDM; TPU |
| 显示 | 开关状态: 1 x LED 黄色 |
| 外壳防护等级 | IP 67 |
| 环境温度 | -25...80 °C |
| 产品 | 易福门或同价值的 |
| 型号 | OGH500 |
技术规格
| Product characteristics | |
| Type of light | red light |
| Housing | threaded type |
| Application | |
| Special feature | Background suppression |
| Function principle | Diffuse reflection sensor |
| Application | Industrial applications / factory automation |
| Electrical data | |
| Operating voltage[V] | 10...36 DC |
| Current consumption[mA] | 25 |
| Protection class | II |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length[nm] | 624 |
| Outputs | |
| Electrical design | PNP |
| Output function | light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC[V] | 2.5 |
| Permanent current rating of switching output DC[mA] | 150; (200 (...60 °C)) |
| Switching frequency DC[Hz] | 1000 |
| Factory setting | |
| light-on mode | |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
| Detection zone | |
| Range[mm] | 15...300; (white paper 200 x 200 mm 90% remission) |
| Range on white object (90 % remission)[mm] | 15...300 |
| Range on grey object (18 % remission)[mm] | 15...290 |
| Range on black object (6 % remission)[mm] | 15...190 |
| Range adjustable | yes |
| Max. light spot diameter[mm] | 25 |
| Light spot dimensions refer to | at maximum range |
| Background suppression available | yes |
| Operating conditions | |
| Ambient temperature[°C] | -25...80 |
| Protection | IP 67 |
| Tests / approvals | |
| EMC | |
| EN 60947-5-2 | |
| MTTF[years] | 362 |
| Mechanical data | |
| Weight[g] | 61.1 |
| Housing | threaded type |
| Dimensions[mm] | M18 x 1 / L = 72 |
| Thread designation | M18 x 1 |
| Materials | stainless steel (316L/1.4404); PA; LCP; EPDM; TPU |
| Lens material | front pane:PMMA |
| Displays / operating elements | |
| Display | |
| switching status | 1 x LED, yellow |
| Accessories | |
| Items supplied | lock nuts: 2 |
| Remarks | |
| Remarks | |
| operating voltage "supply class 2" according to cULus | |
| Pack quantity | 1 pcs. |
| Electrical connection | |
| Connector | 1 x M12; coding: A; Contacts: 4 |
