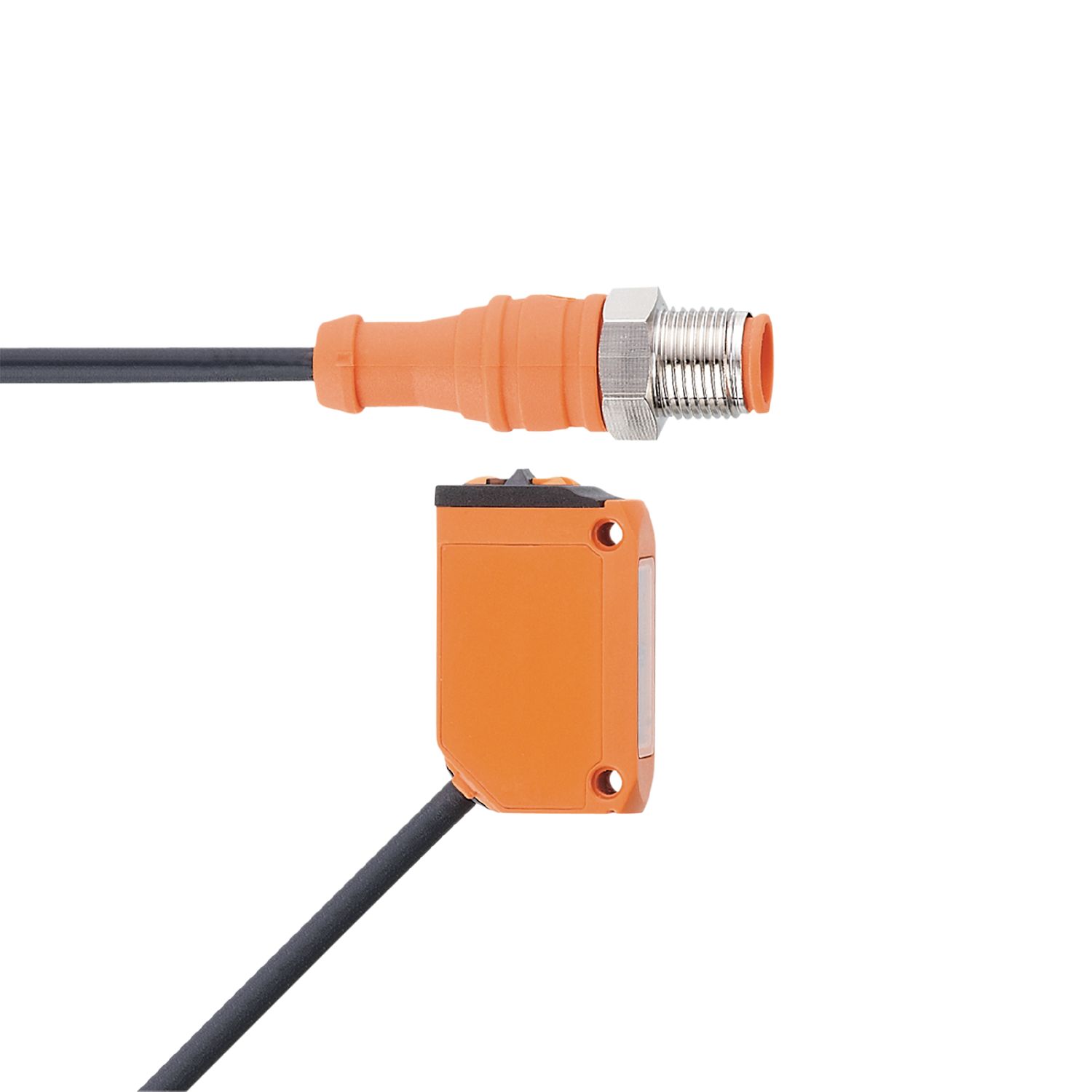

IFM O6T201 光电传感器
漫反射光电开关
IFM O6T201 光电传感器 — datasheet、规格参数、订货号查询与原装正品采购
获取报价 / 询盘
产品亮点
- 适合在空间受限情况下使用的特别紧凑外壳
- 通过电位器对量程进行直观设定
- 通过旋转开关方便地选择亮通或暗通
- 极高的性价比
产品概述
| 产品标识 | 漫反射光电开关 |
| 应用 | 工业应用/工厂自动化 |
| 电压类型 | DC |
| 工作电压DC | 10...30 V |
| 电气设计 | PNP |
| 输出功能 | 亮通和暗通模式; (可选) |
| 透镜校准 | 侧面的镜组 |
| 检测距离 | 5...500 mm |
| 光线种类 | 红光 |
| 接口 | 0.3 m PUR-电缆; M12 接插件 |
| 原材料 | 外壳: ABS 桔黄色; 外壳上部: PPSU 黑色; 密封圈: EPDM |
| 显示 | 开关状态: 1 x LED 黄色; 操作: 1 x LED 绿色 |
| 外壳防护等级 | IP 65IP 67 |
| 环境温度 | -25...60 °C |
| 产品 | 易福门或同价值的 |
| 型号 | O6T201 |
技术规格
| Product characteristics | |
| Type of light | red light |
| Housing | rectangular |
| Application | |
| Function principle | Diffuse reflection sensor |
| Application | Industrial applications / factory automation |
| Electrical data | |
| Operating voltage[V] | 10...30 DC |
| Current consumption[mA] | 16; ((24 V)) |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length[nm] | 633 |
| Outputs | |
| Electrical design | PNP |
| Output function | light-on/dark-on mode; (selectable) |
| Max. voltage drop switching output DC[V] | 2.5 |
| Permanent current rating of switching output DC[mA] | 100 |
| Switching frequency DC[Hz] | 1000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Detection zone | |
| Range[mm] | 5...500; (white paper 200 x 200 mm 90% remission) |
| Setting range[mm] | 100...500 |
| Range adjustable | yes |
| Max. light spot diameter[mm] | 15 |
| Light spot dimensions refer to | at maximum range |
| Operating conditions | |
| Ambient temperature[°C] | -25...60 |
| Protection | IP 65; IP 67 |
| Tests / approvals | |
| EMC | |
| EN 60947-5-2 | |
| MTTF[years] | 897 |
| UL approval | |
| Ta | -25...50 °C |
| Enclosure type | Type 1 |
| voltage supply | Class 2 |
| UL approval no. | E012 |
| Mechanical data | |
| Weight[g] | 33.1 |
| Housing | rectangular |
| Dimensions[mm] | 35.4 x 13 x 21 |
| Materials | housing: ABS orange; upper part of the housing: PPSU black; Sealing: EPDM |
| Lens material | |
| front pane:PMMA | |
| Lens alignment | side lens |
| Tightening torque[Nm] | 0.5 |
| Displays / operating elements | |
| Display | |
| switching status | 1 x LED, yellow |
| operation | 1 x LED, green |
| Remarks | |
| Remarks | |
| operating voltage "supply class 2" according to cULus | |
| Pack quantity | 1 pcs. |
| Electrical connection | |
| Cable | 0.3 m, PUR; 3 x 0.25 mm² |
| Connector | 1 x M12; coding: A; Contacts: 4 |
