Balluff

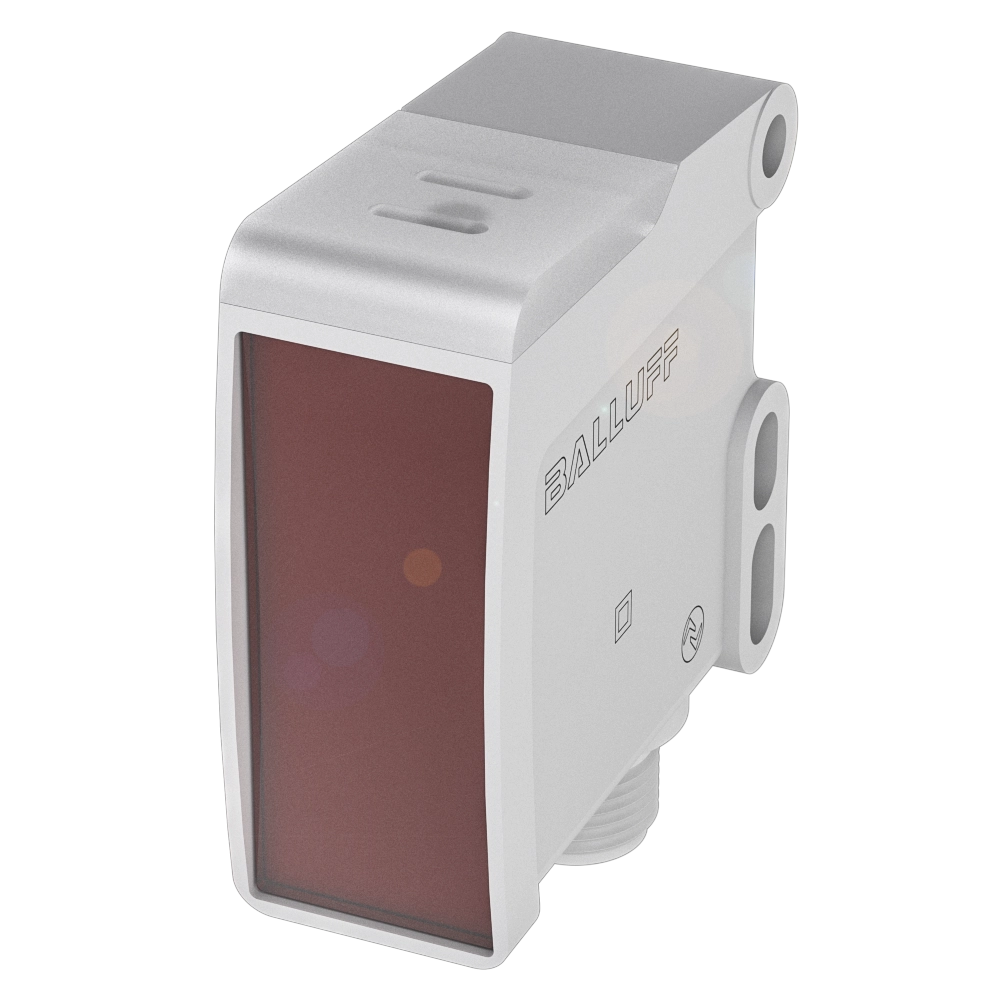

Balluff BOS0285 漫反射传感器

用于冲洗的不同光型的立方体漫射传感器

Balluff BOS0285 漫反射传感器 — datasheet、规格参数、订货号查询与原装正品采购

获取报价 / 询盘

技术规格

Special characteristics	Washdown PlusWashdown
Series	R254K
Dimension	20.4 x 60.3 x 49.5 mm
Interface	IO-Link: 1.1Analog, current: 4…20 mAPin 4: Push-pull: NO/NCPin 2: PNP/NPN/push-pull: NO/NC
Principle of operation	Photoelectric sensor
Principle of optical operation	Diffuse sensor, Triangulation
Special optical feature	Background suppressionCCD technology
Beam characteristic	Focus, typical at 400 mm
Light type	Laser Red light
Light spot size	0.4 x 1.3 mm at 250 mm
Range	30...250 mm
Connection	Connector, M12x1-Male, 4-pin
Housing material	PA 12PA PACM 12
Material sensing surface	PA PACM 12
Operating voltage Ub	10...30 VDC
Approval/Conformity	CE UKCA cULus WEEE E c o l a
b
Secondary features	IdentificationDevice DiscoverySwitching ProfilesSignal Quality MonitoringExternal Signal BlankingSignal DelaySignal Speed MonitorSwitching CounterBasic StatisticsLogic BlocksOperating Hours CounterBoot Cycle CounterVoltage and Current MonitoringExtreme Environment StatusStorage Usage MonitoringVariant ConfigurationPin Assignment
Secondary features for condition monitoring	Vibration monitoringInclination monitoring and installation aidInternal temperature monitoringInternal humidity detection
Scope of delivery	Mounting instruction
