Balluff

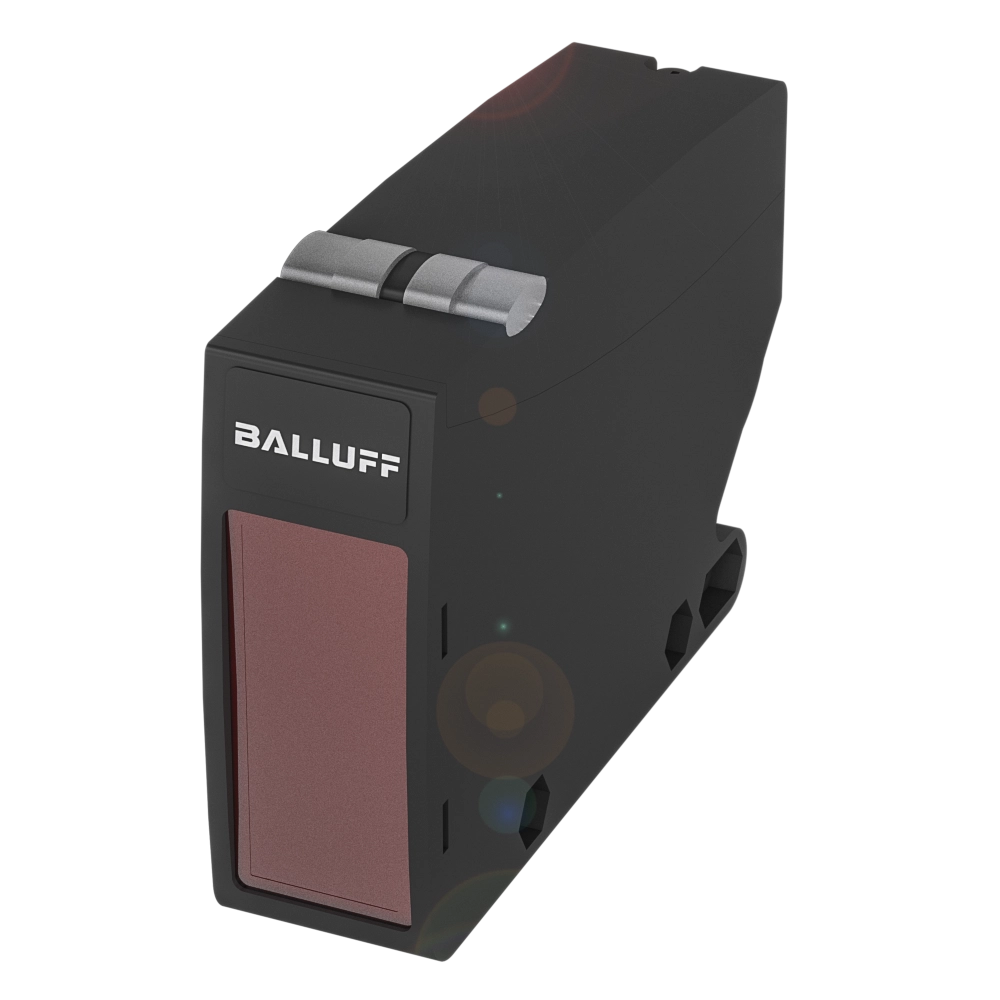

Balluff BOS01K2 漫反射传感器
具有不同光类型和继电器的立方体光扫描仪
Balluff BOS01K2 漫反射传感器 — datasheet、规格参数、订货号查询与原装正品采购
获取报价 / 询盘
技术规格
| Series | 64K |
| Dimension | 25 x 69.7 x 100.4 mm |
| Interface | Relay NO/NC |
| Principle of operation | Photoelectric sensor |
| Principle of optical operation | Diffuse sensor, (energetic) |
| Beam characteristic | Divergent |
| Light type | Infrared |
| Range | 50...2000 mm |
| Connection | Screw terminal |
| Housing material | PBT, GF30 |
| Material sensing surface | PC |
| Operating voltage Ub | 24...60 VDC/24...240 VAC |
| Approval/Conformity | CE UKCA cULus WEEE |
下载资料
- BOS 64K-AA-ID10-TG (186 KB)
