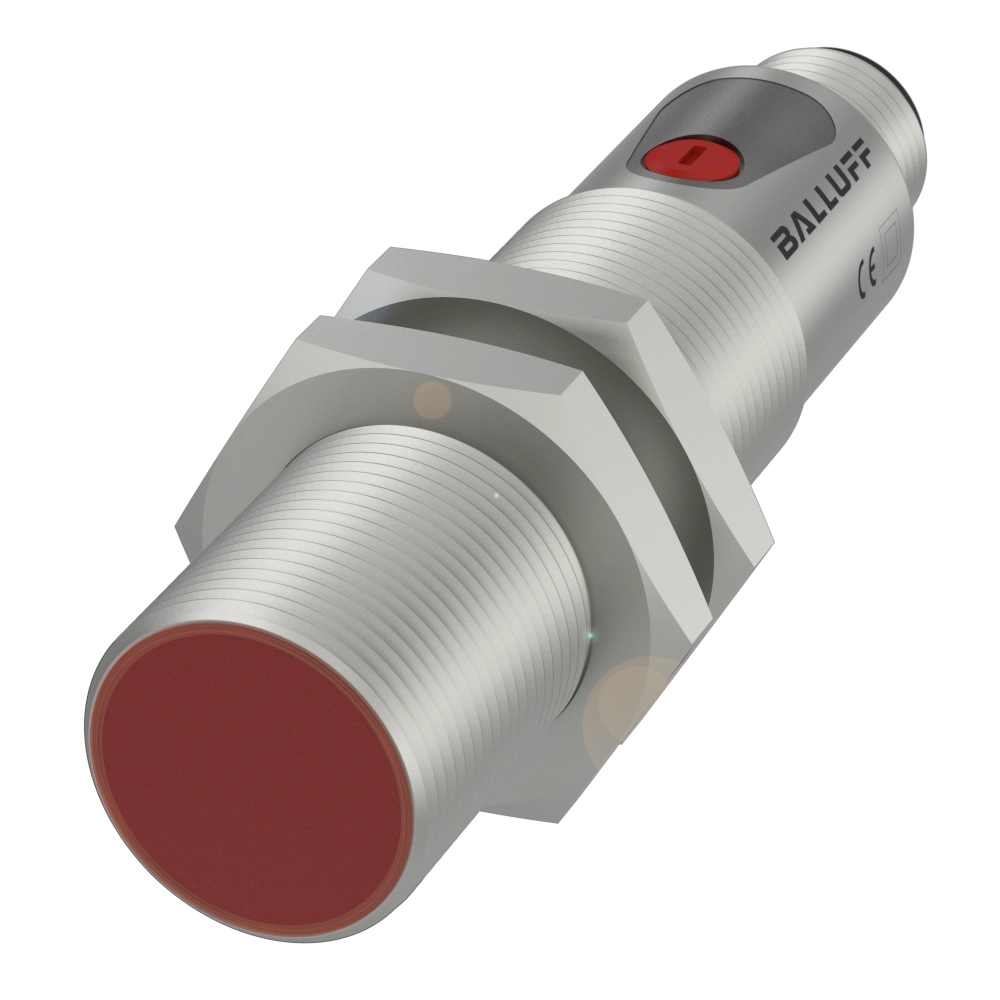

Balluff BOS01CF 漫反射传感器

圆柱型漫反射传感器，带 M18 螺纹，适用于不同光源类型

Balluff BOS01CF 漫反射传感器 — datasheet、规格参数、订货号查询与原装正品采购

获取报价 / 询盘

技术规格

Series	18M
Dimension	Ø 18 x 75 mm
Interface	PNP Normally open (NO)PNP Normally closed (NC)
Principle of operation	Photoelectric sensor
Principle of optical operation	Diffuse sensor, (energetic)
Beam characteristic	Divergent
Light type	LED Red light
Light spot size	Ø 50 mm at 600 mm
Range	0...600 mm
Connection	Connector, M12x1-Male, 4-pin
Housing material	Brass, nickel-plated
Material sensing surface	Glass, AR coated
Operating voltage Ub	10...30 VDC
Approval/Conformity	CE UKCA cULus
WEEE
Scope of delivery	2x nut M18x1User manual
