Balluff

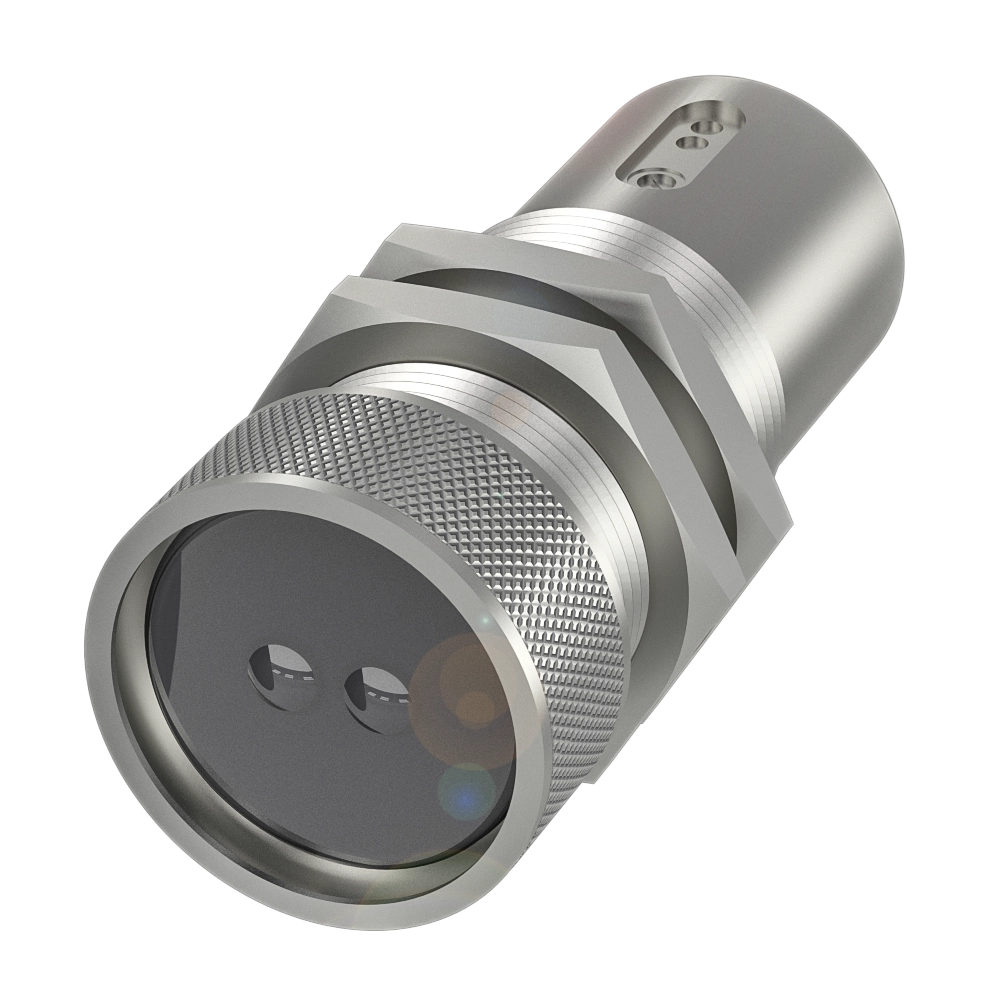

Balluff BOS0134 漫反射传感器
直径为 M30 的圆柱形漫射传感器
Balluff BOS0134 漫反射传感器 — datasheet、规格参数、订货号查询与原装正品采购
获取报价 / 询盘
技术规格
| Series | 30M |
| Dimension | Ø 36 x 89 mm |
| Interface | PNP NO/NCNPN NO/NC |
| Principle of operation | Photoelectric sensor |
| Principle of optical operation | Diffuse sensor, (energetic) |
| Beam characteristic | Divergent |
| Light type | Infrared |
| Range | 200...2000 mm |
| Connection | Connector, M12x1-Male, 4-pin |
| Housing material | Brass, nickel-plated |
| Material sensing surface | Glass |
| Operating voltage Ub | 11...30 VDC |
| Approval/Conformity | CE cULus WEEE |
下载资料
- BOS 30M-GA-1PH-S4-C (182 KB)
