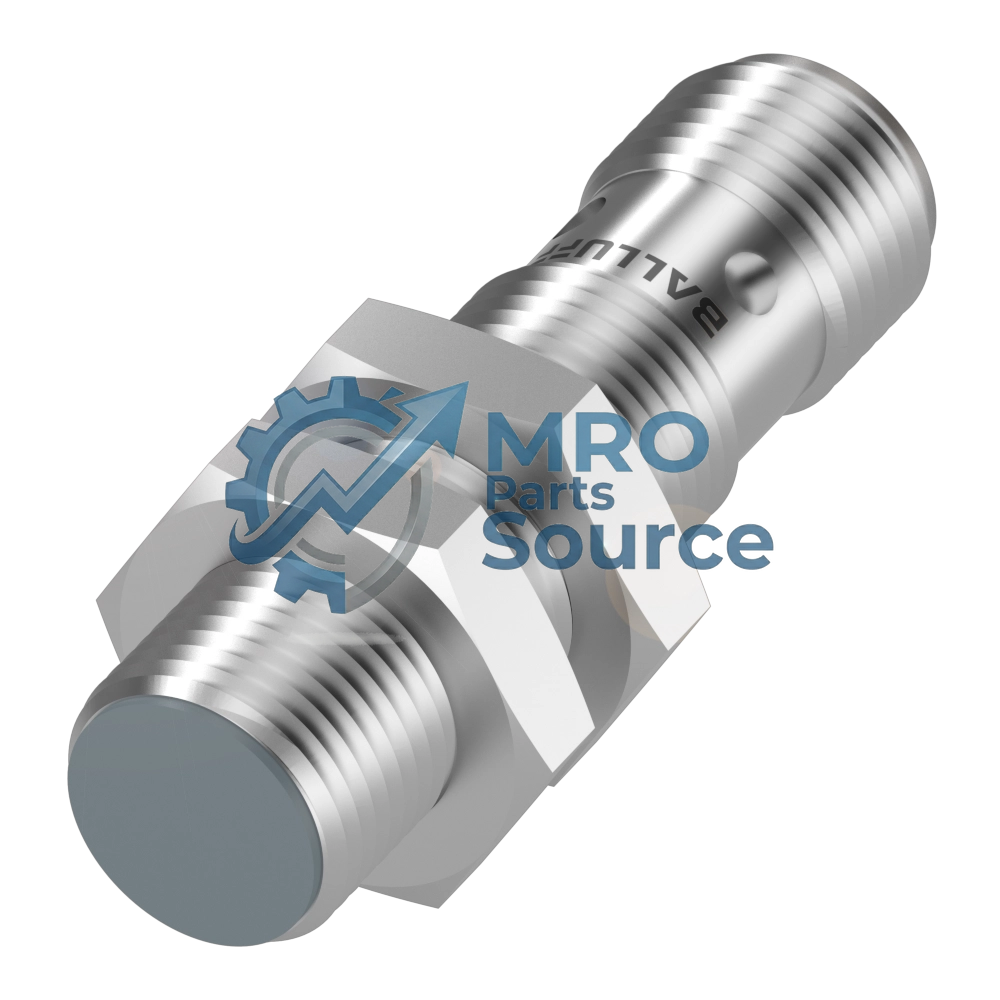

Balluff BES0433 感应式传感器
用于卫生应用的圆柱型传感器
Balluff BES0433 感应式传感器 — datasheet、规格参数、订货号查询与原装正品采购
获取报价 / 询盘
技术规格
| Dimension | Ø 12 x 45 mm |
| Style Housing | M12x1 |
| Installation | for flush mounting |
| Range | 4 mm |
| Switching output | PNP Normally open (NO) |
| Switching frequency | 2000 Hz |
| Housing material | 1.4404 stainless steel |
| Material sensing surface | LCP |
| Connection | Connector, M12x1-Male, 4-pin |
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -25...85 °C |
| IP rating | IP68 |
| Approval/Conformity | CE UKCA cULus WEEE |
下载资料
- BES M12EE-PSC40B-S04G-L01 (176 KB)
