Balluff

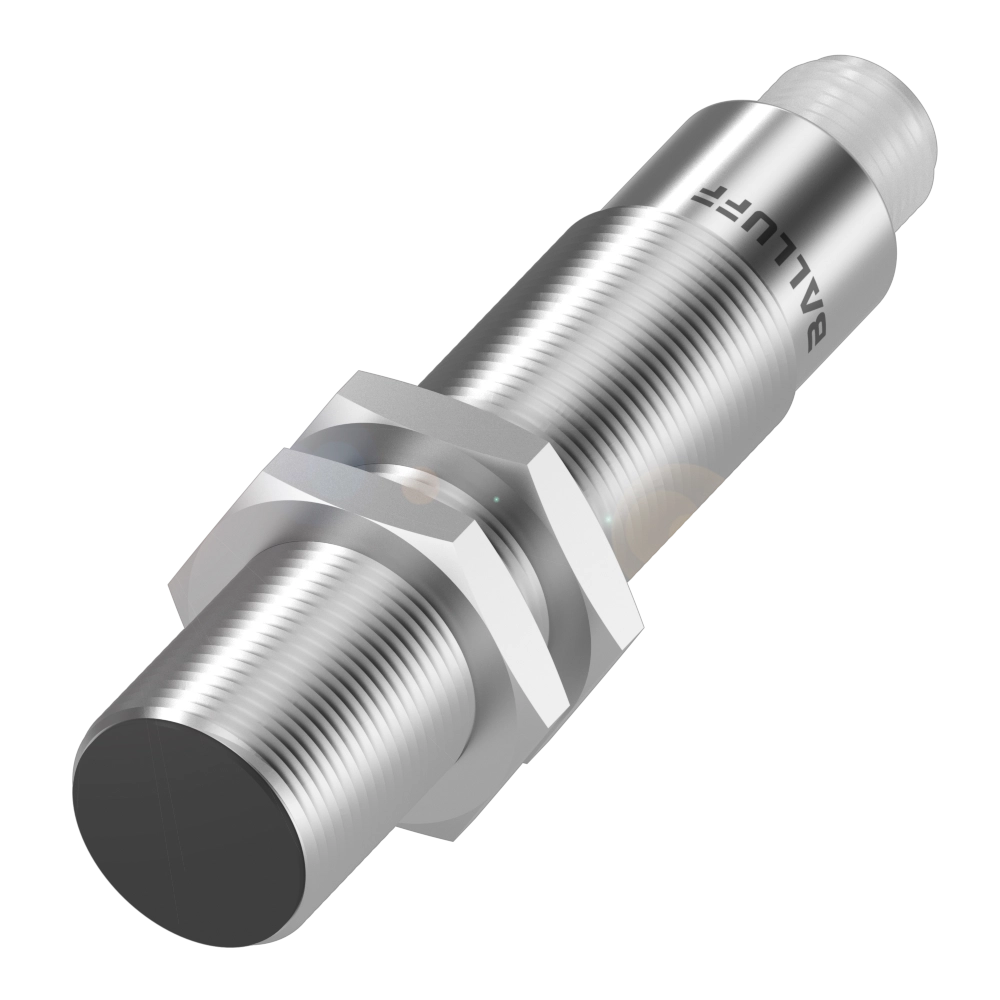

Balluff BES02H6 感应式传感器
用于耐温应用的圆柱形设计
Balluff BES02H6 感应式传感器 — datasheet、规格参数、订货号查询与原装正品采购
获取报价 / 询盘
技术规格
| Dimension | Ø 18 x 83 mm |
| Style Housing | M18x1 |
| Installation | for flush mounting |
| Range | 5 mm |
| Switching output | PNP NO/NC |
| Switching frequency | 500 Hz |
| Housing material | Brass, nickel-plated |
| Material sensing surface | PBT |
| Connection | Connector, M12x1-Male, 4-pin |
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -25...120 °C |
| IP rating | IP67 |
| Approval/Conformity | CE UKCA cULus WEEE |
下载资料
- BES 516-105-SA5 (185 KB)
