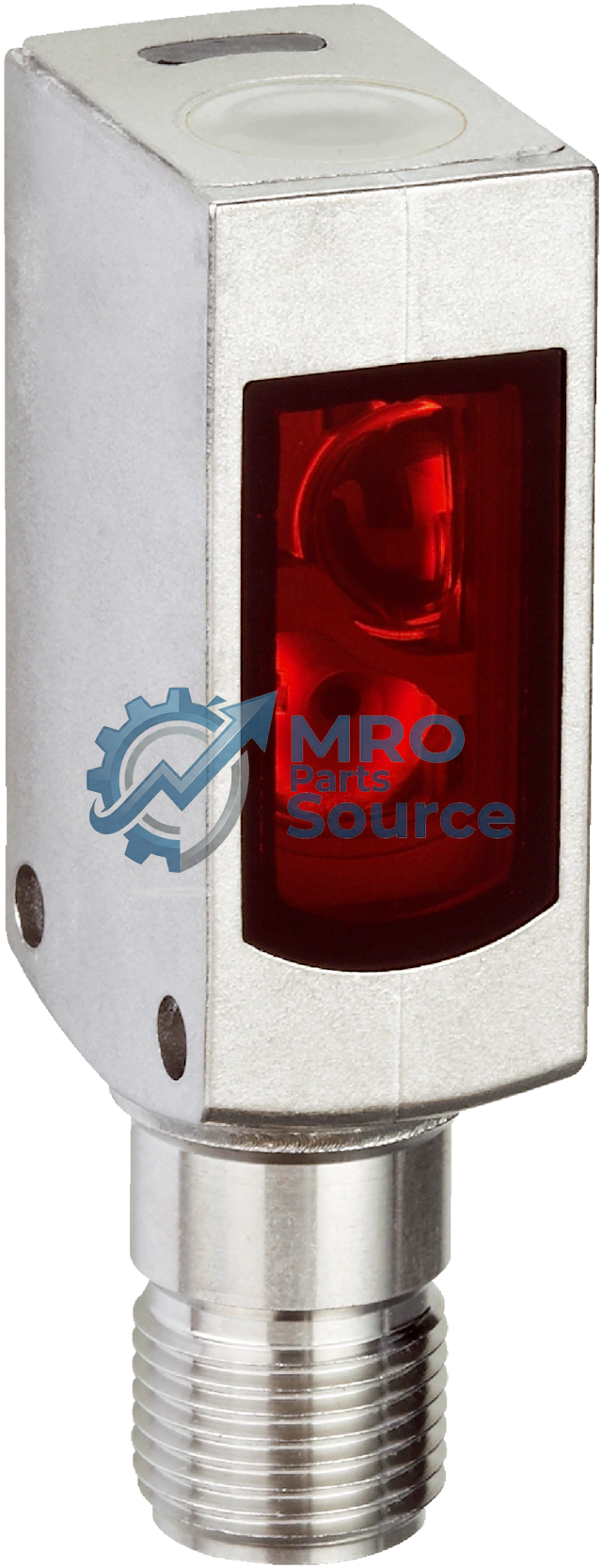

SICK WTB4S-3P2462V Photoelectric Sensors
P/N: 1054675
SICK WTB4S-3P2462V Photoelectric Sensors — datasheet, specifications, part number lookup & authentic sourcing
Get a Quote / Inquire
Overview
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Background suppression |
| Sensing range max. | 4 mm ... 500 mm 1) |
| Sensing range | 10 mm ... 350 mm 1) Emitted beam |
| Light source | PinPoint LED 2) |
| Type of light | Visible red light |
| Light spot size (distance) | Ø 6.5 mm (150 mm) Key LED figures |
| Wave length | 650 nm |
| Adjustment | Single teach-in button |
| Special applications | Hygienic and washdown zones |
| Housing design | Washdown 1) Object with 90% remission (based on standard white, DIN 5033).2) Average service life: 100,000 h at TU = +25 °C. |
Specifications
| Safety-related parameters | |
| MTTFD | 1,186 years |
| DCavg | 0 % |
| TM (mission time) | 20 years |
| Electronics | |
| Supply voltage UB | 10 V DC ... 30 V DC 1) |
| Ripple | pp 2) |
| Current consumption | 30 mA 3) |
| Protection class | III Digital output |
| Type | PNP |
| Switching mode | Light/dark switching |
| Output current Imax. | ≤ 100 mA |
| Response time | 4) |
| Switching frequency | 1,000 Hz 5) |
| Output function | Complementary |
| Circuit protection | A 6)B 7)C 8) 1) Limit values, reverse-polarity protected, operation in short-circuit protected network: max. 8 A.2) May not fall below or exceed UV tolerances.3) Without load.4) Signal transit time with resistive load.5) With light/dark ratio 1:1.6) A = VS connections reverse-polarity protected.7) B = inputs and output reverse-polarity protected.8) C = interference suppression. |
| Mechanics | |
| Housing | Rectangular |
| Design detail | Slim |
| Dimensions (W x H x D) | 15.25 mm x 49.2 mm x 22.2 mm |
| Connection | Male connector M12, 4-pin 1) Material |
| Housing | Metal, Stainless steel V4A (1.4404, 316L) |
| Front screen | Plastic, PMMA |
| Weight | 45 g 1) Max. tightening torque: 0.7 Nm. |
| Ambient data | |
| Enclosure rating | IP66IP67IP68IP69K |
| Ambient operating temperature | –30 °C ... +70 °C 1)–30 °C ... +60 °C |
| Ambient temperature, storage | –30 °C ... +75 °C |
| UL File No. | NRKH.E181493 & NRKH7.E181493 1) At UV ≤ 24 V and IA ## Certificates |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| China Compulsory Product Certification (CCC) exempt | ✔ |
| ECOLAB certificate | ✔ |
| Photobiological safety (DIN EN 62471) certificate | ✔ ## Classifications |
