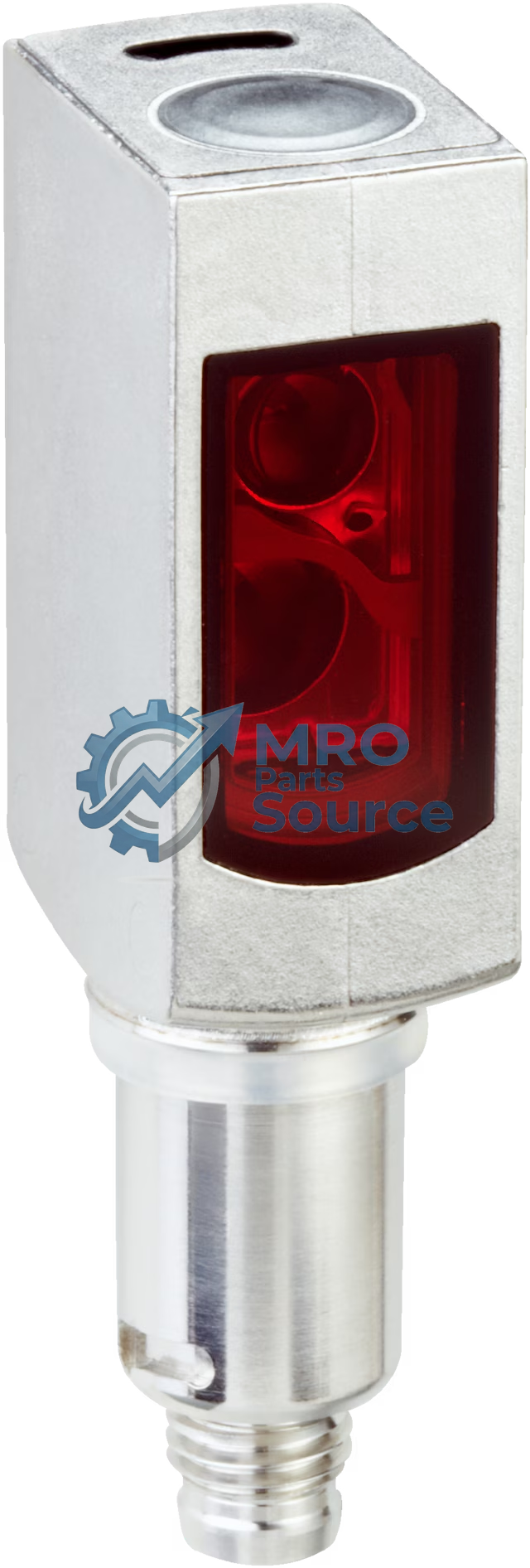

SICK WLG4S-3P5232H Photoelectric Sensors
P/N: 1057053
SICK WLG4S-3P5232H Photoelectric Sensors — datasheet, specifications, part number lookup & authentic sourcing
Get a Quote / Inquire
Overview
| Functional principle | Photoelectric retro-reflective sensor |
| Functional principle detail | Without reflector minimum distance (autocollimation/coaxial optics) |
| Sensing range max. | 0 m ... 5 m 1) |
| Sensing range | 0 m ... 3 m 1) |
| Polarisation filter | Yes Emitted beam |
| Light source | PinPoint LED 2) |
| Type of light | Visible red light |
| Light spot size (distance) | Ø 45 mm (1.5 m) Key LED figures |
| Wave length | 650 nm |
| Adjustment | Single teach-in button |
| Special applications | Hygienic and washdown zones, Detecting transparent objects |
| Housing design | Hygiene |
| AutoAdapt | ✔ 1) Reflector PL80A.2) Average service life: 100,000 h at TU = +25 °C. |
Specifications
| Safety-related parameters | |
| MTTFD | 1,232 years |
| DCavg | 0 % |
| Electronics | |
| Supply voltage UB | 10 V DC ... 30 V DC 1) |
| Ripple | pp 2) |
| Current consumption | 30 mA 3) |
| Protection class | III Digital output |
| Type | PNP |
| Switching mode | Light/dark switching |
| Output current Imax. | ≤ 100 mA |
| Response time | 4) |
| Switching frequency | 1,000 Hz 5) |
| Attenuation along light beam | > 8 % |
| Circuit protection | A 6)B 7)C 8) |
| Special feature | D12 adapter shaft 1) Limit values, reverse-polarity protected, operation in short-circuit protected network: max. 8 A.2) May not fall below or exceed UV tolerances.3) Without load.4) Signal transit time with resistive load.5) With light/dark ratio 1:1.6) A = VS connections reverse-polarity protected.7) B = inputs and output reverse-polarity protected.8) C = interference suppression. |
| Mechanics | |
| Housing | Rectangular |
| Design detail | Slim |
| Dimensions (W x H x D) | 15.25 mm x 63.2 mm x 22.15 mm |
| Connection | Male connector M8, 4-pin 1) Material |
| Housing | Metal, Stainless steel V4A (1.4404, 316L) |
| Front screen | Plastic, PMMA |
| Weight | 140 g 1) Max. tightening torque: 0.6 Nm. |
| Ambient data | |
| Enclosure rating | IP66IP67IP68IP69K |
| Ambient operating temperature | –30 °C ... +70 °C 1)–30 °C ... +60 °C |
| Ambient temperature, storage | –30 °C ... +75 °C |
| UL File No. | FDA, UL No. NRKH.E181493 & cUL No. NRKH7.E181493 1) At UV ≤ 24 V and IA ## Certificates |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| China Compulsory Product Certification (CCC) exempt | ✔ |
| ECOLAB certificate | ✔ |
| Photobiological safety (DIN EN 62471) certificate | ✔ ## Classifications |
| ECLASS 5.1.4 | 27270903 |
| ECLASS 6.0 | 27270903 |
| ECLASS 7.0 | 27270903 |
| ECLASS 8.0 | 27270903 |
| ECLASS 9.0 | 27270903 |
| ECLASS 10.0 | 27270903 |
| ECLASS 11.0 | 27270903 |
| ECLASS 12.0 | 27270903 |
| ECLASS 13.0 | 27270903 |
| ECLASS 14.0 | 27270903 |
| ECLASS 15.0 | 27270903 |
| ETIM 6.0 | EC002719 |
| ETIM 7.0 | EC002719 |
| ETIM 8.0 | EC002719 |
| ETIM 9.0 | EC002719 |
| ETIM 10.0 | EC002719 |
| UNSPSC 091201.0 | 32151804 |
| UNSPSC 100501.0 | 32151804 |
| UNSPSC 111201.0 | 32151804 |
| UNSPSC 120901.0 | 32151804 |
| UNSPSC 131201.0 | 32151804 |
| UNSPSC 140801.0 | 32151804 |
| UNSPSC 151101.0 | 32151804 |
| UNSPSC 160901.0 | 32151804 |
| UNSPSC 171001.0 | 32151804 |
| UNSPSC 180801.0 | 32151804 |
| UNSPSC 190501.0 | 32151804 |
| UNSPSC 200601.0 | 32151804 |
| UNSPSC 210901.0 | 32151804 |
| UNSPSC 220601.0 | 32151804 |
| UNSPSC 230701.0 | 32151804 |
| UNSPSC 240301.0 | 32151804 |
| UNSPSC 250901.0 | 32151804 |
| UNSPSC 260801.0 | 32151804 |
Downloads
- datasheet WLG4S-3P5232H (388 KB)
