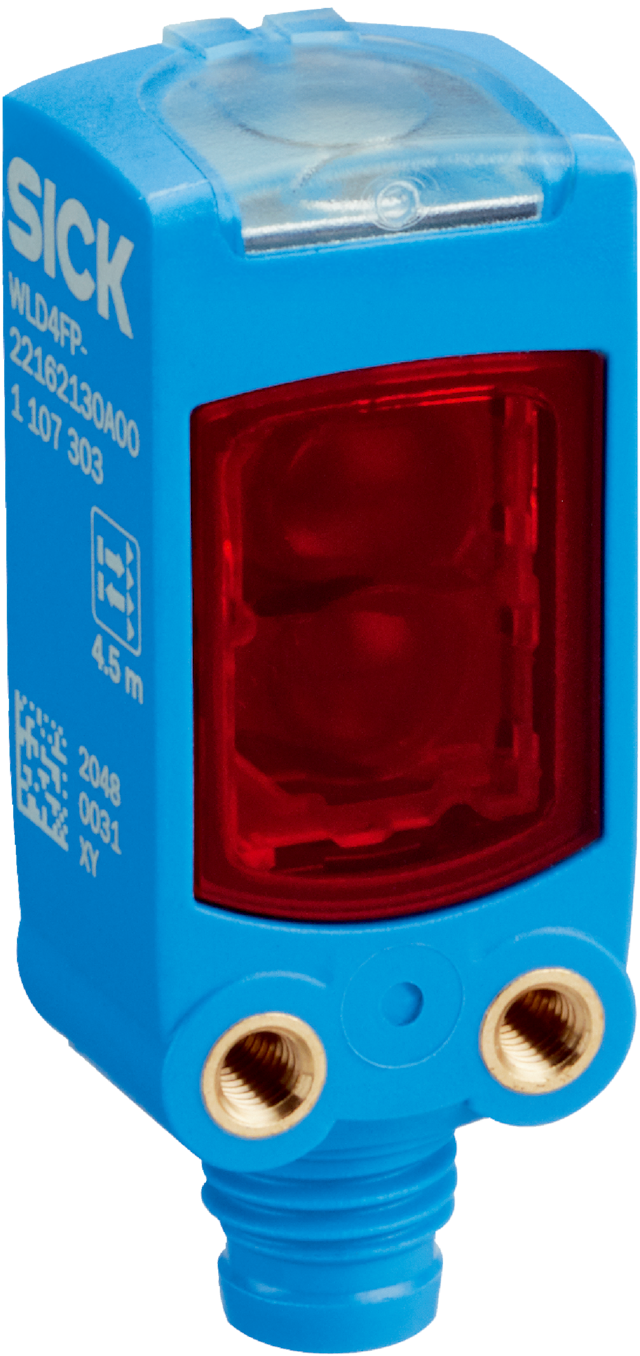

SICK WLD4FP-22861100A00 Photoelectric Sensors

SICK

SICK WLD4FP-22861100A00 Photoelectric Sensors

P/N: 1140920

SICK WLD4FP-22861100A00 Photoelectric Sensors — datasheet, specifications, part number lookup & authentic sourcing

Get a Quote / Inquire

Request a Quote Chat via WhatsApp Email Us

Overview

Functional principlePhotoelectric retro-reflective sensor
Functional principle detailWith minimum distance to reflector (dual lens system) Sensing range
Sensing range min.0 mm
Sensing range max.4.5 m
Maximum distance range from reflector to sensor (operating reserve 1)0.015 m ... 4.5 m
Recommended distance range from reflector to sensor (operating reserve 3,75)0.035 m ... 3.9 m
Reference reflectorReflector P250
Recommended sensing range for the best performance0.035 m ... 3.9 m
Polarisation filterYes Emitted beam
Light sourcePinPoint LED
Type of lightVisible red light
Shape of light spotPoint-shaped
Light spot size (distance)Ø 38 mm (1,000 mm)
Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle)U = +23 °C) Key LED figures
Normative referenceEN 62471:2008-09 | IEC 62471:2006, modified
LED risk group markingFree group
Wave length635 nm
Average service life100,000 h at Ta = +25 °C Adjustment
IO-LinkFor configuring the sensor parameters and Smart Task functions Display
LED blueBluePilot: Alignment aid
LED greenOperating indicatorStatic on: power onFlashing: IO-Link mode
LED yellowStatus of received light beamStatic on: object not presentStatic off: object presentFlashing: Below the 1.5 function reserve

Specifications

Safety-related parameters
MTTFD747 years
DCavg0 %
TM (mission time)20 years ## Communication interface
IO-Link✔ , IO-Link V1.1
Data transmission rateCOM2 (38,4 kBaud)
Cycle time2.3 ms
Process data length16 Bit
Process data structureBit 0 = switching signal QL1 Bit 1 = switching signal QL2 Bit 2 ... 15 = Current receiver level (live)
VendorID26
DeviceID HEX0x80036E
DeviceID DEC8389486
Compatible master port typeA
SIO mode supportYes
Electronics
Supply voltage UB10 V DC ... 30 V DC 1)
Ripple≤ 5 Vpp
Usage categoryDC-12 (According to EN 60947-5-2)DC-13 (According to EN 60947-5-2)
Current consumption≤ 20 mA, without load. At UB = 24 V
Protection classIII Digital output
Number2 (Complementary)
TypePNP
Switching modeLight/dark switching
Signal voltage PNP HIGH/LOWApprox. UB-2.5 V / 0 V
Output current Imax.≤ 100 mA
Circuit protection outputsReverse polarity protected Overcurrent protected Short-circuit protected
Response time≤ 500 µs
Repeatability (response time)150 µs 2)
Switching frequency1,000 Hz 3) Pin/Wire assignment
Function of pin 4/black (BK)Digital output, dark switching, object present → output ǬL1 HIGH 4) IO-Link communication C
Function of pin 4/black (BK) – detailThe pin 4 function of the sensor can be configured Additional possible settings via IO-Link
Function of pin 2/white (WH)Digital output, light switching, object present → output QL1 LOW
Function of pin 2/white (WH) – detailThe pin 2 function of the sensor can be configured
Additional possible settings via IO-Link1) Limit values.2) Signal transit time with resistive load in switching mode.3) With light/dark ratio 1:1.4) This switching output must not be connected to another output.
Mechanics
HousingRectangular
Design detailFlat
Dimensions (W x H x D)16 mm x 40.1 mm x 12.1 mm
ConnectionMale connector M8, 4-pin Material
HousingPlastic, VISTAL®
Front screenPlastic, PMMA
Male connectorPlastic, VISTAL®
WeightApprox. 30 g
Maximum tightening torque of the fixing screws0.4 Nm
Ambient data
Enclosure ratingIP66 (EN 60529)IP67 (EN 60529)
Ambient operating temperature–40 °C ... +60 °C
Ambient temperature, storage–40 °C ... +75 °C
Typ. Ambient light immunityArtificial light: ≤ 50,000 lxSunlight: ≤ 50,000 lx
Shock resistance30 g, 11 ms (3 positive and 3 negative shocks along X, Y, Z axes, 18 total shocks (EN60068-2-27))
Vibration resistance10 Hz ... 1,000 Hz (Amplitude 1 mm, 3 x 30 min (EN60068-2-6))
Air humidity35 % ... 95 %, relative humidity (no condensation)
Electromagnetic compatibility (EMC)EN 60947-5-2
Resistance to cleaning agentECOLAB
UL File No.NRKH.E181493 & NRKH7.E181493 ## Smart Task
Smart Task nameBase logics
Logic functionDirectANDOR
Timer functionDeactivatedSwitch-on delayOff delayON and OFF delayImpulse (one shot)
InverterYes
Switching frequencySIO Logic: 800 Hz 1)IOL: 750 Hz 2)
Response timeSIO Logic: 600  µs 1)IOL: 650 µs 2)
RepeatabilitySIO Logic: 200 µs 1)IOL: 250 µs 2) Switching signal
Switching signal QL1Switching output
Switching signal ǬL1Switching output 1) Use of Smart Task functions without IO-Link communication (SIO mode).2) Use of Smart Task functions with IO-Link communication function. ## Diagnosis Device temperature
Measuring rangeVery cold, cold, moderate, warm, hot
Device statusYes
Detailed device statusYes
Operating hour counterYes
Operating hours counter with reset functionYes
Quality of teachYes
Quality of runYes, Contamination display ## Certificates
EU declaration of conformity✔
UK declaration of conformity✔
ACMA declaration of conformity✔
Moroccan declaration of conformity✔
China RoHS✔
China Compulsory Product Certification (CCC) exempt✔
ECOLAB certificate✔
cULus certificate✔
IO-Link certificate✔
Photobiological safety (DIN EN 62471) certificate✔
Information according to Art. 3 of Data Act (Regulation EU 2023/2854)✔ ## Classifications
ECLASS 5.1.427270903
ECLASS 6.027270903
ECLASS 7.027270903
ECLASS 8.027270903
ECLASS 9.027270903
ECLASS 10.027270903
ECLASS 11.027270903
ECLASS 12.027270903
ECLASS 13.027270903
ECLASS 14.027270903
ECLASS 15.027270903
ETIM 6.0EC002719
ETIM 7.0EC002719
ETIM 8.0EC002719
ETIM 9.0EC002719
ETIM 10.0EC002719
UNSPSC 091201.032151804
UNSPSC 100501.032151804
UNSPSC 111201.032151804
UNSPSC 120901.032151804
UNSPSC 131201.032151804
UNSPSC 140801.032151804
UNSPSC 151101.032151804
UNSPSC 160901.032151804
UNSPSC 171001.032151804
UNSPSC 180801.032151804
UNSPSC 190501.032151804
UNSPSC 200601.032151804
UNSPSC 210901.032151804
UNSPSC 220601.032151804
UNSPSC 230701.032151804
UNSPSC 240301.032151804
UNSPSC 250901.032151804
UNSPSC 260801.032151804
