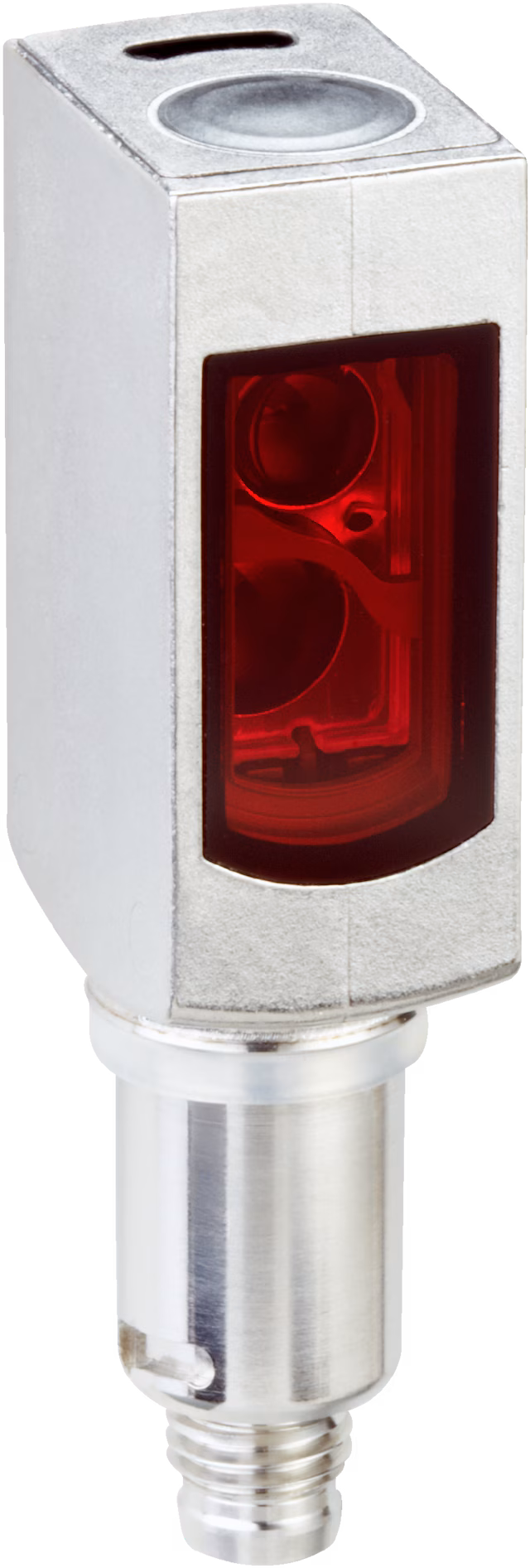

SICK WL4SLGC-3P5232HA00 Photoelectric Sensors

P/N: 1153463

SICK WL4SLGC-3P5232HA00 Photoelectric Sensors — datasheet, specifications, part number lookup & authentic sourcing

Get a Quote / Inquire

Request a Quote Chat via WhatsApp Email Us

Overview

Functional principlePhotoelectric retro-reflective sensor
Functional principle detailWithout reflector minimum distance (autocollimation/coaxial optics)
Sensing range max.0 m ... 4.5 m 1) 2)
Sensing range0 m ... 2 m 1) 2)
Polarisation filterYes Emitted beam
Light sourceLaser 3)
Type of lightVisible red light
Light spot size (distance)Ø 1 mm (500 mm) Key laser figures
Normative referenceEN 60825-1:2014, IEC 60825-1:2014 / CDRH 21 CFR 1040.10 & 1040.11
Laser class1 4)
Wave length650 nm
AdjustmentSingle teach-in button, IO-Link
Special applicationsHygienic and washdown zones, Detecting transparent objects, Detecting small objects
Housing designHygiene 5) 1) Reflective tape REF-AC1000.2) To ensure reliable operation, we recommend using REF-AC1000 reflective tape or reflective-tap reflectors such as P41F, PLV14-A, PLH25-M12, or PLH25-D12. Reflectors with large-scale triple structures must only be used if deemed suitable for the application.3) Average service life: 50,000 h at TU = +25 °C.4) Do not intentionally look into the laser beam. Never point the laser beam at people's eyes.5) Difference between standard/washdown and hygiene: The essential difference between a standard/washdown product and a hygiene product is that where the process and contact with the medium (activity in the vicinity of the food) are concerned, a hygiene product is designed in accordance with the latest standards and hygiene design guidelines, and materials are selected accordingly.

Specifications

Safety-related parameters
MTTFD655 years (EN ISO 13849-1) 1)
DCavg0 % 1) Mode of calculation: Parts-Count-calculation. ## Communication interface
IO-Link✔ , IO-Link V1.1
Data transmission rateCOM2 (38,4 kBaud)
Cycle time2.3 ms
Process data length16 Bit
Process data structureBit 0 = switching signal QL1 Bit 1 = switching signal QL2 Bit 2 ... 15 = empty
VendorID26
DeviceID HEX0x8001CE
DeviceID DEC8389070
Compatible master port typeA
SIO mode supportYes
Electronics
Supply voltage UB10 V DC ... 30 V DC 1)
Ripplepp 2)
Current consumption30 mA 3)
Protection classIII Digital output
TypePNP 4)
Switching modeLight/dark switching 4)
Output current Imax.≤ 100 mA
Response time≤ 0.5 ms 5)
Switching frequency1,000 Hz 6)
Output functionComplementary
Circuit protectionA 7)B 8)C 9)
Special featureD12 adapter shaft 1) Limit values when operated in short-circuit protected network: max. 8 A.2) May not fall below or exceed UV tolerances.3) Without load.4) Q = light switching.5) Signal transit time with resistive load.6) With light/dark ratio 1:1.7) A = VS connections reverse-polarity protected.8) B = inputs and output reverse-polarity protected.9) C = interference suppression.
Mechanics
HousingRectangular
Design detailSlim
Dimensions (W x H x D)15.3 mm x 63.2 mm x 22.2 mm
ConnectionMale connector M8, 4-pin 1) Material
HousingMetal, Stainless steel V4A (1.4404, 316L)
Front screenPlastic, PMMA
Weight140 g 1) Max. tightening torque: 0.6 Nm.
Ambient data
Enclosure ratingIP66IP67IP68IP69K 1)
Ambient operating temperature–10 °C ... +50 °C
Ambient operating temperature extended–30 °C ... +55 °C 2) 3)
Ambient temperature, storage–30 °C ... +70 °C
RoHS certificate✔ 1) Only in case of correctly mounted IP69K connecting cable.2) As of Ta = 50 °C, a max. supply voltage Vmax. = 24 V and a max. load current Imax. = 50 mA is permitted.3) Operation below Tu –10 °C is possible if the sensor is already switched on at Tu > –10 °C, then cools down, and the supply voltage is subsequently not switched off. Switching on below Tu –10 °C is not permissible. ## Smart Task
Smart Task nameBase logics
Logic functionDirectANDORWINDOWHysteresis
Timer functionDeactivatedSwitch-on delayOff delayON and OFF delayImpulse (one shot)
InverterYes
Switching frequencySIO Direct: 1000 HzSIO Logic: 1000 HzIOL: 900 Hz
Response timeSIO Direct: 300 µs ... 450 µs 1)SIO Logic: 500 µs ... 600 µs 2)IOL: 500 µs ... 900 µs 3)
RepeatabilitySIO Direct: 150 µs 1)SIO Logic: 150 µs 2)IOL: 400 µs 3) Switching signal
Switching signal QL1Switching output
Switching signal QL2Switching output 1) SIO Direct: sensor operation in standard I/O mode without IO-Link communication and without using internal sensor logic or time parameters (set to "direct"/"deactivated").2) SIO Logic: Sensor operation in standard I/O mode without IO-Link communication. Sensor-internal logic or timing parameters plus Automation Functions used.3) IOL: Sensor operation with full IO-Link communication and usage of logic, timing and Automation Function parameters. ## Diagnosis
Device statusYes
Quality of teachYes
Quality of runYes, Contamination display ## Certificates
EU declaration of conformity✔
UK declaration of conformity✔
ACMA declaration of conformity✔
Moroccan declaration of conformity✔
China RoHS✔
China Compulsory Product Certification (CCC) exempt✔
ECOLAB certificate✔
Laser safety (IEC 60825-1) certificate✔
Information according to Art. 3 of Data Act (Regulation EU 2023/2854)✔ ## Classifications
