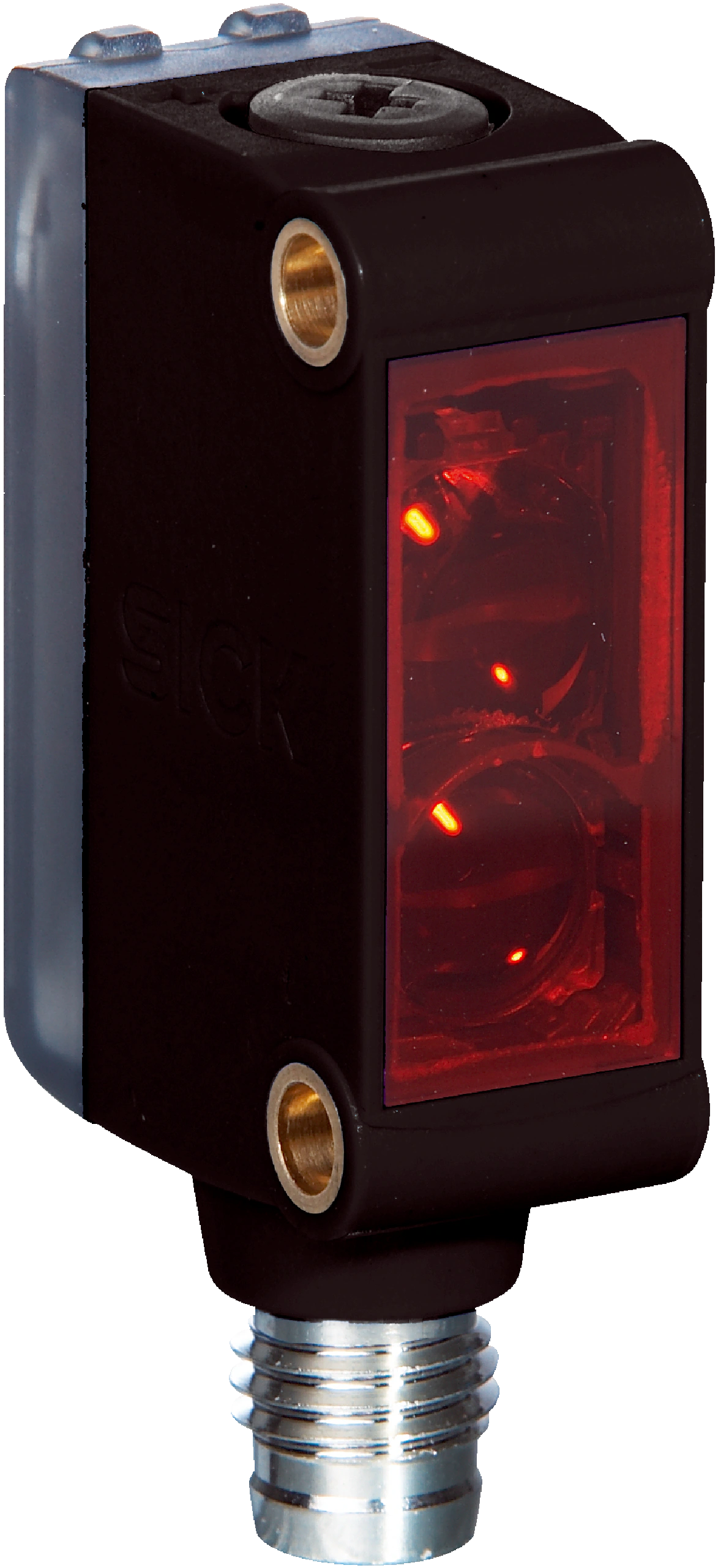

SICK GTB6-P4241 Photoelectric Sensors
P/N: 1082863
SICK GTB6-P4241 Photoelectric Sensors — datasheet, specifications, part number lookup & authentic sourcing
Get a Quote / Inquire
Overview
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Background suppression |
| Sensing range max. | 5 mm ... 450 mm 1) |
| Sensing range | 50 mm ... 350 mm Emitted beam Light source LED 2) Type of light Infrared light Light spot size (distance) |
| Ø 8 mm (100 mm) | |
| Emitted beam | |
| Light source | LED 2) |
| Type of light | Infrared light |
| Light spot size (distance) | Ø 8 mm (100 mm) Key LED figures Wave length |
| 850 nm | |
| Key LED figures | |
| Wave length | 850 nm |
| Adjustment | Mechanical spindle, 5 turns |
- Object with 90% remission (based on standard white, DIN 5033).
- Average service life: 100,000 h at TU = +25 °C.
Specifications
| Safety-related parameters | |
| MTTFD | 1,905 years |
| DCavg | 0 % |
| Electronics | |
| Supply voltage UB | 10 V DC ... 30 V DC 1) |
| Ripple | ± 10 % 2) |
| Current consumption | 30 mA 3) |
| Protection class | III |
| Digital outputTypePNPSwitching modeLight/dark switchingSignal voltage PNP HIGH/LOWVS - (≤ 3 V) / approx. 0 VOutput current Imax.≤ 100 mA 4)Response time< 1 ms 5)Switching frequency500 Hz 6) | |
| Digital output | |
| Type | PNP |
| Switching mode | Light/dark switching |
| Signal voltage PNP HIGH/LOW | VS - (≤ 3 V) / approx. 0 V |
| Output current Imax. | ≤ 100 mA 4) |
| Response time | < 1 ms 5) |
| Switching frequency | 500 Hz 6) |
| Circuit protection | A 7)B 8)D 9) |
| Mechanics | |
| Housing | Rectangular |
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Connection | Male connector M8, 4-pin |
| MaterialHousingPlastic, ABS/PCFront screenPlastic, PMMA | |
| Material | |
| Housing | Plastic, ABS/PC |
| Front screen | Plastic, PMMA |
| Weight | 20 g |
| Ambient data | |
| Enclosure rating | IP67 |
| Ambient operating temperature | –25 °C ... +55 °C 1) |
| Ambient temperature, storage | –40 °C ... +70 °C |
| UL File No. | NRKH.E348498 & NRKH7.E348498 |
Downloads
- datasheet GTB6-P4241 (339 KB)
