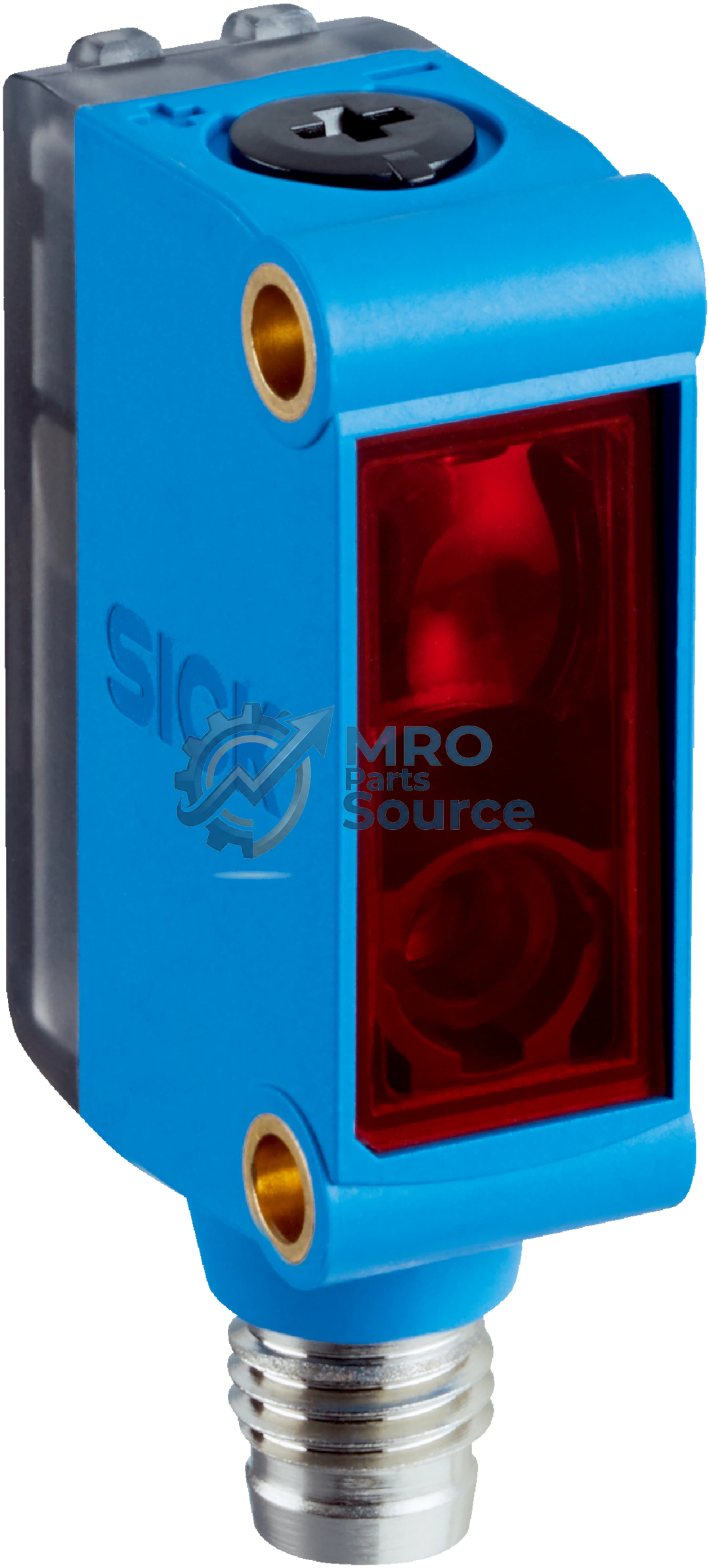

SICK GL6L-P4211 Photoelectric Sensors
P/N: 1105822
SICK GL6L-P4211 Photoelectric Sensors — datasheet, specifications, part number lookup & authentic sourcing
Get a Quote / Inquire
Overview
| Functional principle | Photoelectric retro-reflective sensor Sensing range Sensing range min. 0.08 m Sensing range max. 12 m Maximum distance range from reflector to sensor (operating reserve 1) 0.08 m ... 12 m Recommended distance range from reflector to sensor (operating reserve 2) 0.08 m ... 10 m Reference reflector Reflector P250F Recommended sensing range for the best performance |
| 0.08 m ... 4.2 m | |
| Sensing range | |
| Sensing range min. | 0.08 m |
| Sensing range max. | 12 m |
| Maximum distance range from reflector to sensor (operating reserve 1) | 0.08 m ... 12 m |
| Recommended distance range from reflector to sensor (operating reserve 2) | 0.08 m ... 10 m |
| Reference reflector | Reflector P250F |
| Recommended sensing range for the best performance | 0.08 m ... 4.2 m |
| Polarisation filter | Yes Emitted beam Light source Laser Type of light Visible red light Shape of light spot Point-shaped Light spot size (distance) Ø 3.5 mm (1,000 mm) Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle) |
| < +/- 1.5° (at TU = +23 °C) | |
| Emitted beam | |
| Light source | Laser |
| Type of light | Visible red light |
| Shape of light spot | Point-shaped |
| Light spot size (distance) | Ø 3.5 mm (1,000 mm) |
| Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle) | < +/- 1.5° (at TU = +23 °C) Key laser figures Normative reference IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11 Laser class 1 1) Wave length 680 nm Pulse duration 2 µs Maximum pulse power ≤ 11.9 mW Average service life |
| 100,000 h at Ta = +25 °C | |
| Key laser figures | |
| Normative reference | IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11 |
| Laser class | 1 1) |
| Wave length | 680 nm |
| Pulse duration | 2 µs |
| Maximum pulse power | ≤ 11.9 mW |
| Average service life | 100,000 h at Ta = +25 °C Smallest detectable object (MDO) typ. |
| 3.5 mm, at 1 m distance (object with 90% remission factor (corresponds to standard white according to DIN 5033)) | |
| Smallest detectable object (MDO) typ. | |
| 3.5 mm, at 1 m distance (object with 90% remission factor (corresponds to standard white according to DIN 5033)) | Adjustment Potentiometer For setting the sensing range Operating mode switch |
| For inverting the switching function (light/dark switching) | |
| Adjustment | |
| Potentiometer | For setting the sensing range |
| Operating mode switch | For inverting the switching function (light/dark switching) Display LED green Operating indicator Static on: power on LED yellow Status of received light beam Static on: object not present |
| Static off: object present | |
| Display | |
| LED green | Operating indicator Static on: power on |
| LED yellow | Status of received light beam Static on: object not present Static off: object present |
- Do not intentionally look into the laser beam. Never point the laser beam at people's eyes.
Specifications
| Safety-related parameters | |
| MTTFD | 1,005 years |
| DCavg | 0 % |
| TM (mission time) | 10 years |
| Electronics | |
| Supply voltage UB | 10 V DC ... 30 V DC 1) |
| Ripple | < 5 Vpp |
| Usage category | DC-13 (According to EN 60947-5-2) |
| Current consumption | ≤ 20 mA, without load. At UB = 24 V |
| Protection class | III |
| Digital outputNumber1TypePNPSwitching modeLight/dark switchingSignal voltage PNP HIGH/LOWApprox. UB-3 V / 0 VOutput current Imax.≤ 100 mA 2)Circuit protection outputsReverse polarity protectedOvercurrent protectedShort-circuit protectedResponse time≤ 625 µsSwitching frequency1,000 Hz 3) | |
| Digital output | |
| Number | 1 |
| Type | PNP |
| Switching mode | Light/dark switching |
| Signal voltage PNP HIGH/LOW | Approx. UB-3 V / 0 V |
| Output current Imax. | ≤ 100 mA 2) |
| Circuit protection outputs | Reverse polarity protected |
| Overcurrent protected | |
| Short-circuit protected | |
| Response time | ≤ 625 µs |
| Switching frequency | 1,000 Hz 3) |
| Pin/Wire assignmentFunction of pin 4/black (BK)Digital output, light switching, object present → output Q LOWFunction of pin 4/black (BK) – detailThe pin 4 function of the sensor can be switchedAdditional possible settings via operating mode switch | |
| Pin/Wire assignment | |
| Function of pin 4/black (BK) | Digital output, light switching, object present → output Q LOW |
| Function of pin 4/black (BK) – detail | The pin 4 function of the sensor can be switched |
| Additional possible settings via operating mode switch | |
| Mechanics | |
| Housing | Rectangular |
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Connection | Male connector M8, 4-pin |
| MaterialHousingPlastic, ABSFront screenPlastic, PMMACablePlastic, PVCMale connectorMetal, copper alloy (C3604 CUZN39PB3) | |
| Material | |
| Housing | Plastic, ABS |
| Front screen | Plastic, PMMA |
| Cable | Plastic, PVC |
| Male connector | Metal, copper alloy (C3604 CUZN39PB3) |
| Weight | Approx. 60 g |
| Ambient data | |
| Enclosure rating | IP67 (EN 60529) |
| Ambient operating temperature | –20 °C ... +50 °C 1) 2) |
| Ambient temperature, storage | –40 °C ... +70 °C |
| Typ. Ambient light immunity | Sunlight: ≤ 13,000 lx |
| Shock resistance | 30 g, 11 ms (3 positive and 3 negative shocks along X, Y, Z axes, 18 total shocks (EN60068-2-27)) |
| Vibration resistance | 10 Hz ... 55 Hz (Amplitude 0.5 mm, 3 x 30 min (EN60068-2-6)) |
| Air humidity | 35 % ... 95 %, relative humidity (no condensation) |
| Electromagnetic compatibility (EMC) | EN 60947-5-2 |
| UL File No. | NRKH.E348498 & NRKH7.E348498 |
Downloads
- datasheet GL6L-P4211 (911 KB)
