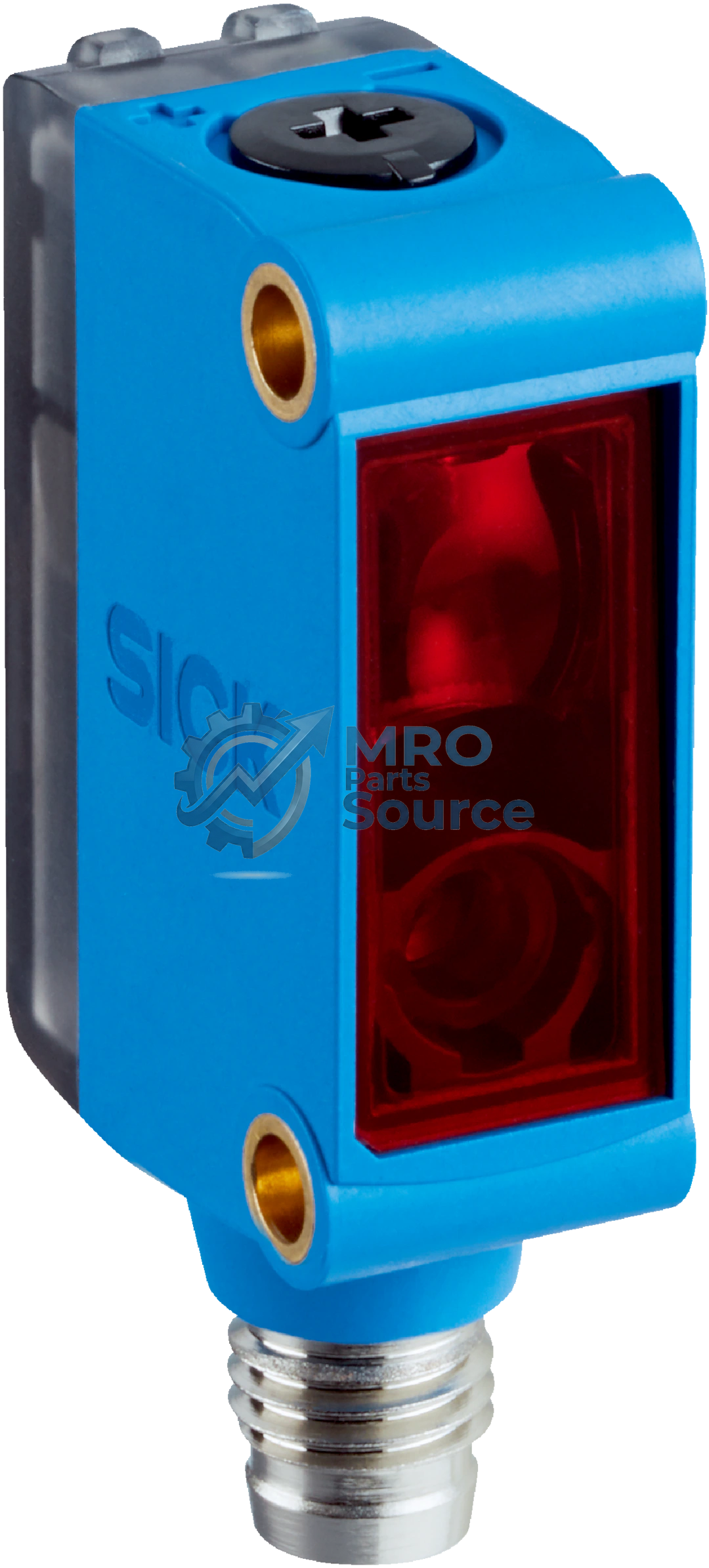

SICK GL6G-P4211S97 Photoelectric Sensors

P/N: 1104671

SICK GL6G-P4211S97 Photoelectric Sensors — datasheet, specifications, part number lookup & authentic sourcing

Get a Quote / Inquire

Overview

Functional principle	Photoelectric retro-reflective sensor
Functional principle detail	With minimum distance to reflector (dual lens system)
Sensing range max.	60 mm ... 400 mm 1)
Sensing range	60 mm ... 150 mm 1)
Polarisation filter	Yes Emitted beam Light source PinPoint LED 2) Type of light
Visible red light
Emitted beam
Light source	PinPoint LED 2)
Type of light	Visible red light Key LED figures Wave length
650 nm
Key LED figures
Wave length	650 nm
Adjustment	Potentiometer, 270°
Special applications	Detecting transparent objects

Electronics
Supply voltage UB	10 V DC ... 30 V DC 1)
Ripple	± 10 % 2)
Current consumption	30 mA 3)
Protection class	III
Digital outputTypePNPSwitching modeLight/dark switchingSwitching mode selectorSelectable via light/dark selectorSignal voltage PNP HIGH/LOWVS - (≤ 3 V) / approx. 0 VOutput current Imax.≤ 100 mA 4)Response time< 625 µs 5)Switching frequency1,000 Hz 6)
Digital output
Type	PNP
Switching mode	Light/dark switching
Switching mode selector	Selectable via light/dark selector
Signal voltage PNP HIGH/LOW	VS - (≤ 3 V) / approx. 0 V
Output current Imax.	≤ 100 mA 4)
Response time	< 625 µs 5)
Switching frequency	1,000 Hz 6)
Attenuation along light beam	> 20 %
Circuit protection	A 7)B 8)D 9)
Mechanics
Housing	Rectangular
Dimensions (W x H x D)	12 mm x 31.5 mm x 21 mm
Connection	Male connector M8, 4-pin
MaterialHousingPlastic, ABS/PCFront screenPlastic, PMMA
Material
Housing	Plastic, ABS/PC
Front screen	Plastic, PMMA
Weight	60 g
Ambient data
Enclosure rating	IP67
Ambient operating temperature	–25 °C ... +55 °C 1)
Ambient temperature, storage	–40 °C ... +70 °C
UL File No.	NRKH.E348498 & NRKH7.E348498
