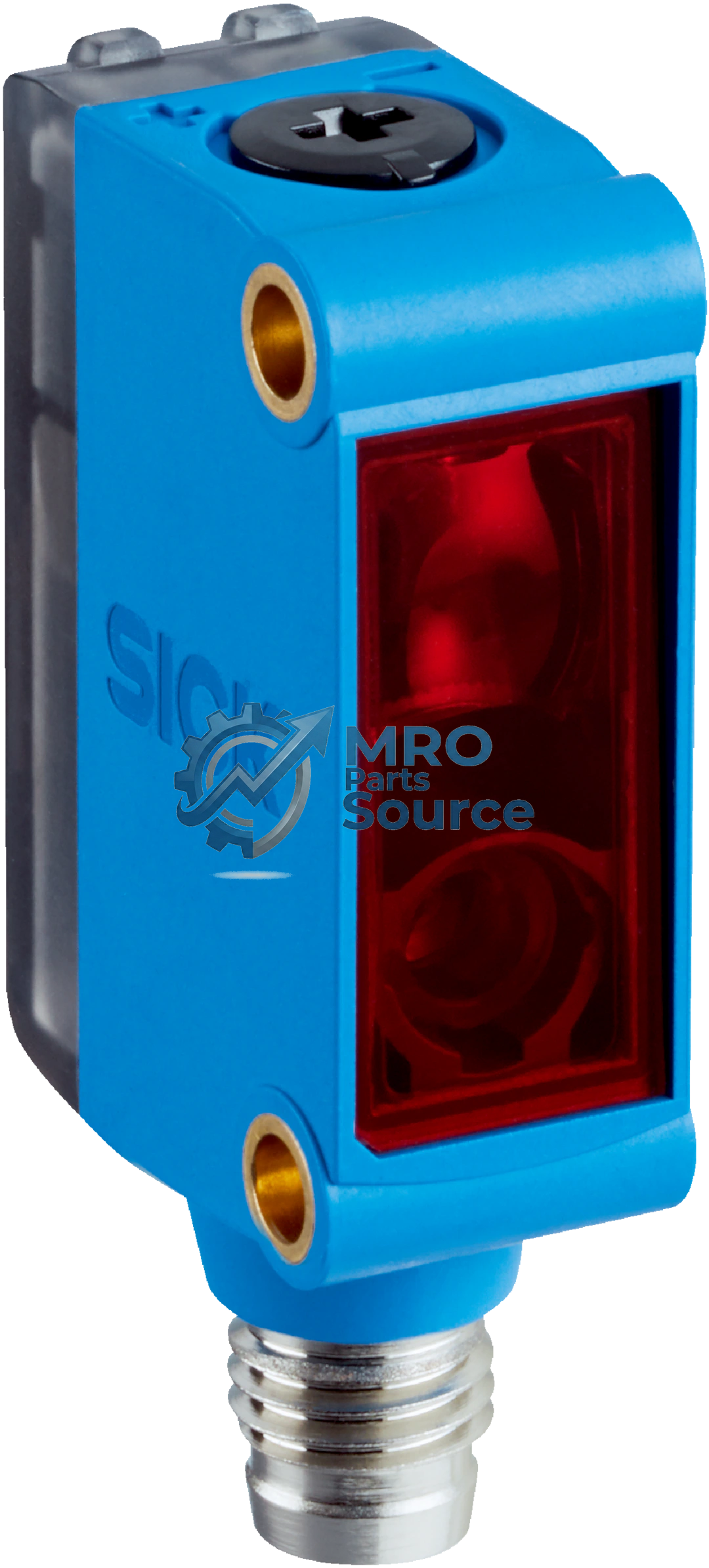

SICK GL6-P4212 Photoelectric Sensors

P/N: 1062110

SICK GL6-P4212 Photoelectric Sensors — datasheet, specifications, part number lookup & authentic sourcing

Get a Quote / Inquire

Overview

Functional principle	Photoelectric retro-reflective sensor
Functional principle detail	With minimum distance to reflector (dual lens system)
Sensing range max.	0.03 m ... 6 m 1)
Sensing range	0.07 m ... 5 m 1)
Polarisation filter	Yes Emitted beam Light source PinPoint LED 2) Type of light Visible red light Light spot size (distance)
Ø 8 mm (350 mm)
Emitted beam
Light source	PinPoint LED 2)
Type of light	Visible red light
Light spot size (distance)	Ø 8 mm (350 mm) Key LED figures Wave length
650 nm
Key LED figures
Wave length	650 nm
Adjustment	Potentiometer, 270°
Items supplied	Reflector P250, Stainless steel mounting bracket (1.4301/304) BEF-W100-A

Safety-related parameters
MTTFD	1,705 years
DCavg	0 %
Electronics
Supply voltage UB	10 V DC ... 30 V DC 1)
Ripple	± 10 % 2)
Current consumption	30 mA 3)
Protection class	III
Digital outputTypePNPSwitching modeLight/dark switchingSwitching mode selectorSelectable via light/dark selectorSignal voltage PNP HIGH/LOWVS - (≤ 3 V) / approx. 0 VOutput current Imax.≤ 100 mA 4)Response time< 625 µs 5)Switching frequency1,000 Hz 6)
Digital output
Type	PNP
Switching mode	Light/dark switching
Switching mode selector	Selectable via light/dark selector
Signal voltage PNP HIGH/LOW	VS - (≤ 3 V) / approx. 0 V
Output current Imax.	≤ 100 mA 4)
Response time	< 625 µs 5)
Switching frequency	1,000 Hz 6)
Circuit protection	A 7)B 8)D 9)
Mechanics
Housing	Rectangular
Dimensions (W x H x D)	12 mm x 31.5 mm x 21 mm
Connection	Male connector M8, 4-pin
MaterialHousingPlastic, ABS/PCFront screenPlastic, PMMA
Material
Housing	Plastic, ABS/PC
Front screen	Plastic, PMMA
Weight	20 g
Ambient data
Enclosure rating	IP67
Ambient operating temperature	–25 °C ... +55 °C 1)
Ambient temperature, storage	–40 °C ... +70 °C
UL File No.	NRKH.E348498 & NRKH7.E348498
