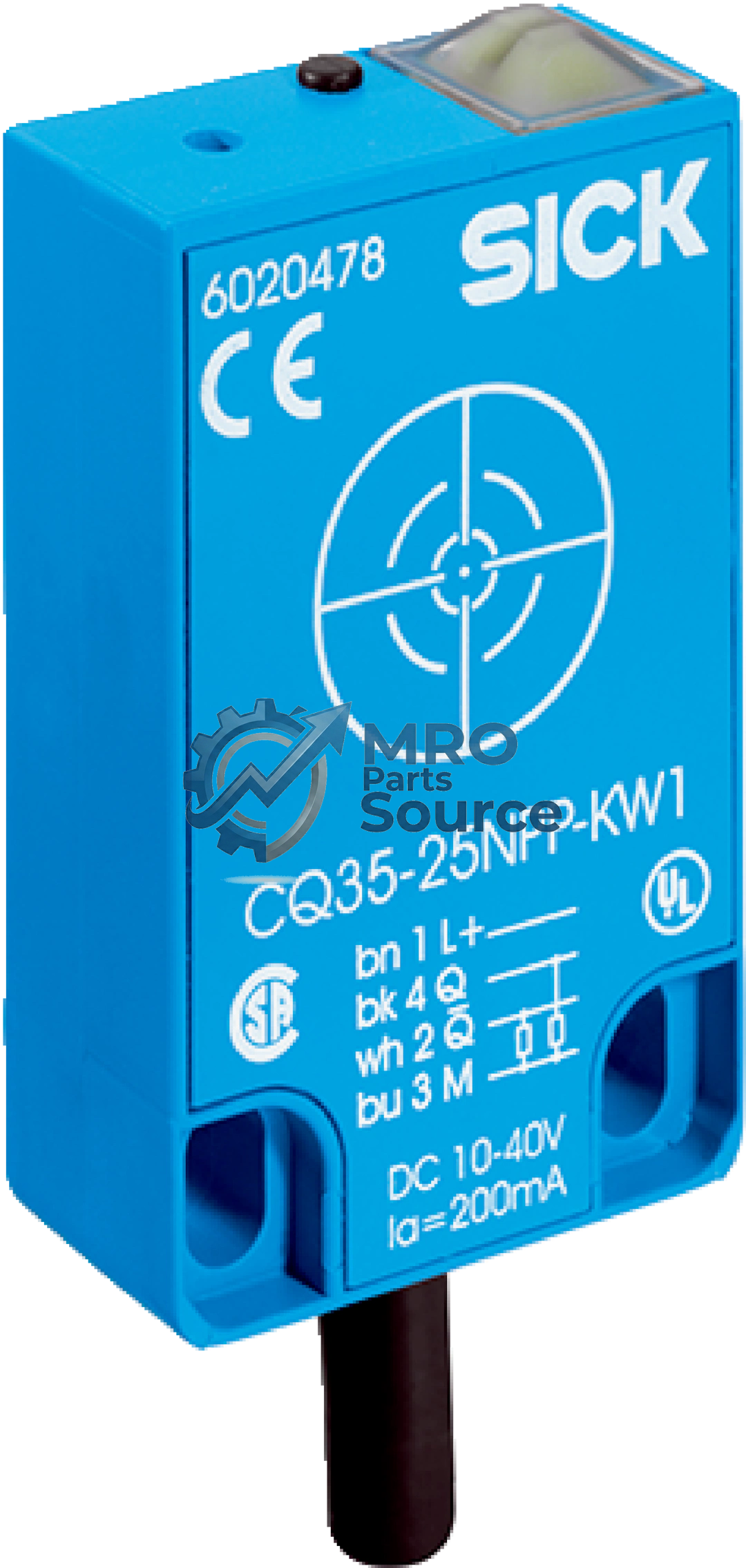

SICK CQ35-25NNP-KW1 Capacitive proximity sensors

P/N: 6021463

SICK CQ35-25NNP-KW1 Capacitive proximity sensors — datasheet, specifications, part number lookup & authentic sourcing

Get a Quote / Inquire

Overview

Housing	Rectangular
Dimensions (W x H x D)	35 mm x 69.5 mm x 15 mm
Sensing range Sn	4 mm ... 25 mm
Safe sensing range Sa	18 mm
Installation type	Non-flush
Switching frequency	50 Hz
Connection type	Cable, 4-wire, 2 m 1)
Switching output	NPN
Switching output detail	NPN
Output function	Complementary
Electrical wiring	DC 4-wire Adjustment Potentiometer
Sensitivity (270°)
Adjustment
Potentiometer	Sensitivity (270°)
Enclosure rating	IP67 2)
Items supplied	Screwdriver for potentiometer adjustment (1 x)

Mechanics/electronics
Supply voltage	10 V DC ... 36 V DC
Ripple	≤ 10 % 1)
Voltage drop	≤ 2.5 V DC 2)
Current consumption	10 mA 3)
Time delay before availability	≤ 100 ms
Hysteresis	4 % ... 20 %
Reproducibility	≤ 5 % 4) 5)
Temperature drift (of Sr)	± 10 %
EMC	According to EN 60947-5-2 6)
Continuous current Ia	≤ 200 mA
Cable material	PVC
Conductor size	0.34 mm²
Short-circuit protection	✔
Power-up pulse protection	✔
Shock and vibration resistance	30 g, 11 ms / 10 ... 55 Hz, 1 mm
Ambient operating temperature	–25 °C ... +75 °C
Housing material	Plastic, PC
Sensing face material	Plastic
UL File No.	NRKH.E191603
Safety-related parameters
MTTFD	897 years
DCavg	0 %
TM (mission time)	20 years
Reduction Factors
Note	The values are reference values which may vary
Metal	1
Water	1
PVC	Approx. 0.4
Oil	Approx. 0.25
Glass	0.6
Ceramics	0.5
Alcohol	0.7
Wood	0.2 ... 0.7 ## Installation note
Remark	Associated graphic see "Installation"
A	35 mm
B	35 mm
F	6 x Sn (max. 150 mm)
