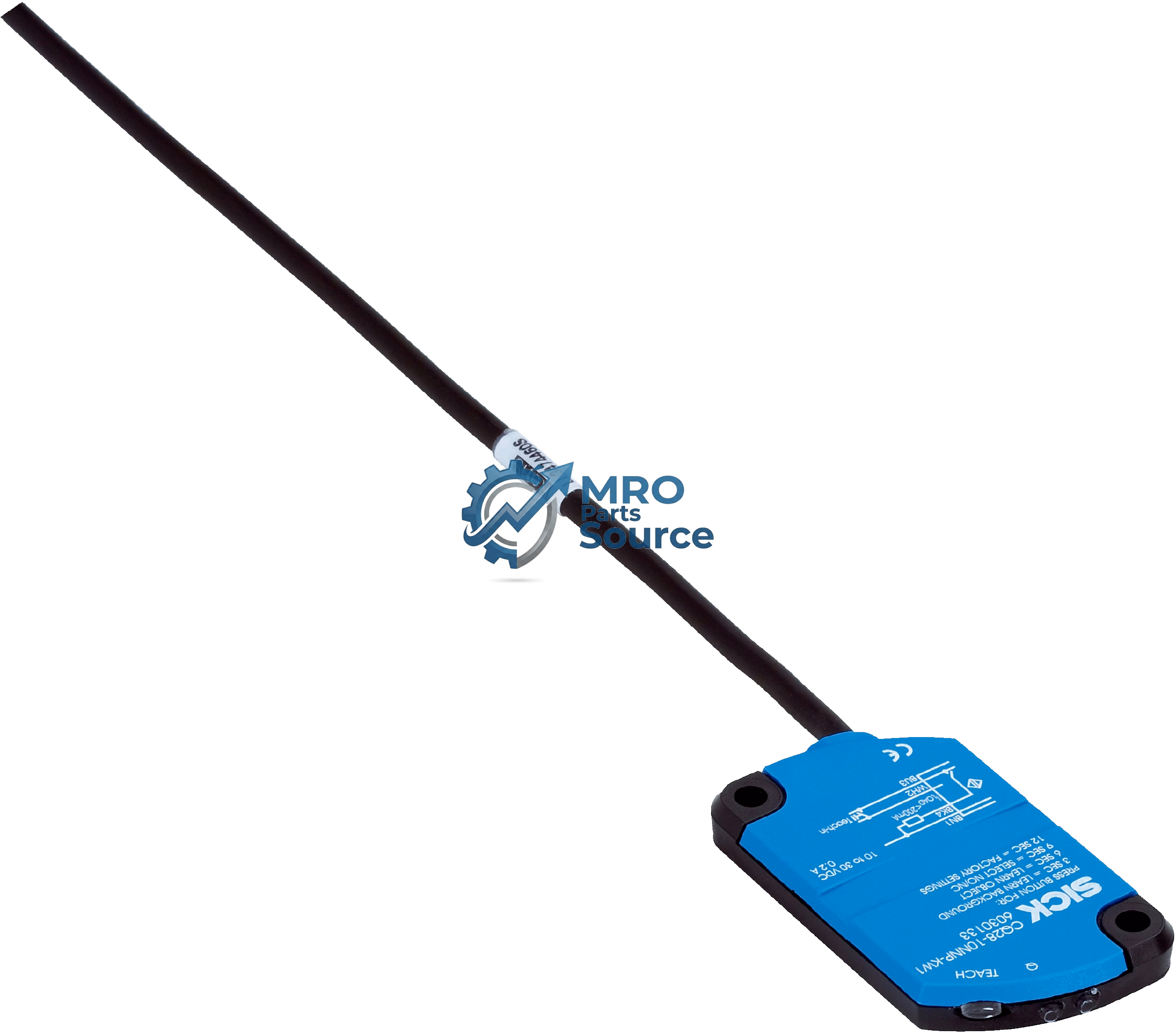

SICK CQ28-10NPP-KW1 Capacitive proximity sensors

P/N: 6030132

SICK CQ28-10NPP-KW1 Capacitive proximity sensors — datasheet, specifications, part number lookup & authentic sourcing

Get a Quote / Inquire

Overview

Housing	Rectangular
Dimensions (W x H x D)	28 mm x 46 mm x 5.5 mm
Sensing range Sn	1 mm ... 10 mm
Safe sensing range Sa	7.2 mm
Installation type	Non-flush
Switching frequency	10 Hz
Connection type	Cable, 4-wire, 2 m 1)
Switching output	PNP
Switching output detail	PNP
Output function	NC or NO
Electrical wiring	DC 4-wire Adjustment Teach-in button Sensitivity Wire/pin
Sensitivity
Adjustment
Teach-in button	Sensitivity
Wire/pin	Sensitivity
Enclosure rating	IP68 2)

Mechanics/electronics
Supply voltage	10 V DC ... 30 V DC
Ripple	≤ 10 %
Voltage drop	≤ 2.5 V DC 1)
Current consumption	12 mA 2)
Time delay before availability	≤ 300 ms
Reproducibility	≤ 5 % 3) 4)
Temperature drift (of Sr)	± 10 %
EMC	According to EN 60947-5-2 5)
Continuous current Ia	≤ 200 mA
Cable material	PVC
Conductor size	0.14 mm²
Short-circuit protection	✔
Shock and vibration resistance	30 g, 11 ms / 10 ... 55 Hz, 1 mm
Ambient operating temperature	–20 °C ... +85 °C
Ambient temperature, storage	–40 °C ... +85 °C
Housing material	Plastic, PBT
Sensing face material	Plastic
UL File No.	NRKH.E191603
Safety-related parameters
MTTFD	1,112 years
DCavg	0 %
TM (mission time)	20 years
Reduction Factors
Note	The values are reference values which may vary
Metal	1
Water	1
PVC	Approx. 0.4
Oil	Approx. 0.25
Glass	0.6
Ceramics	0.5
Alcohol	0.7
Wood	0.2 ... 0.7 ## Installation note
Remark	Associated graphic see "Installation"
A	27.6 mm
B	27.6 mm
F	6 x Sn (max. 60 mm)
