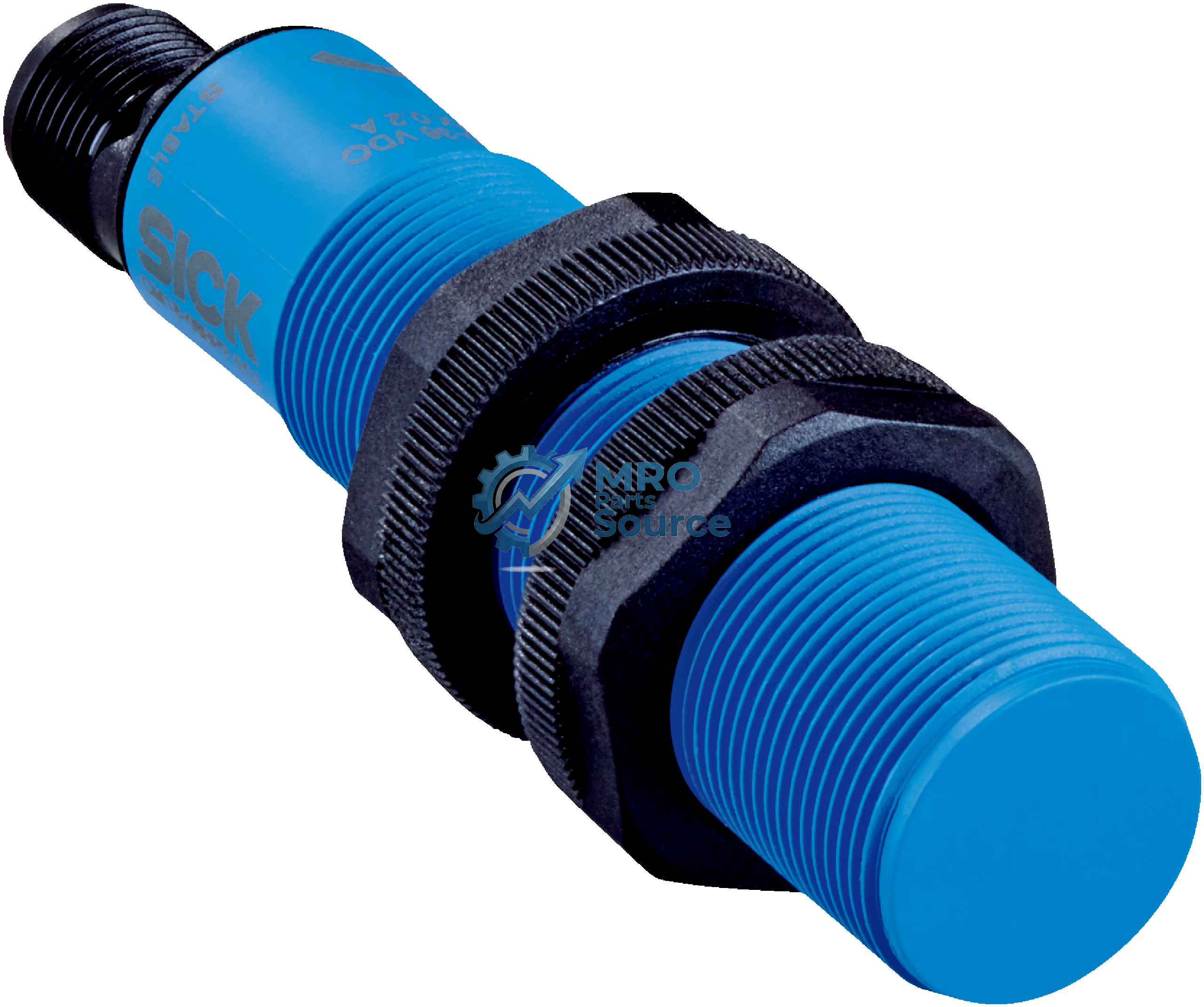

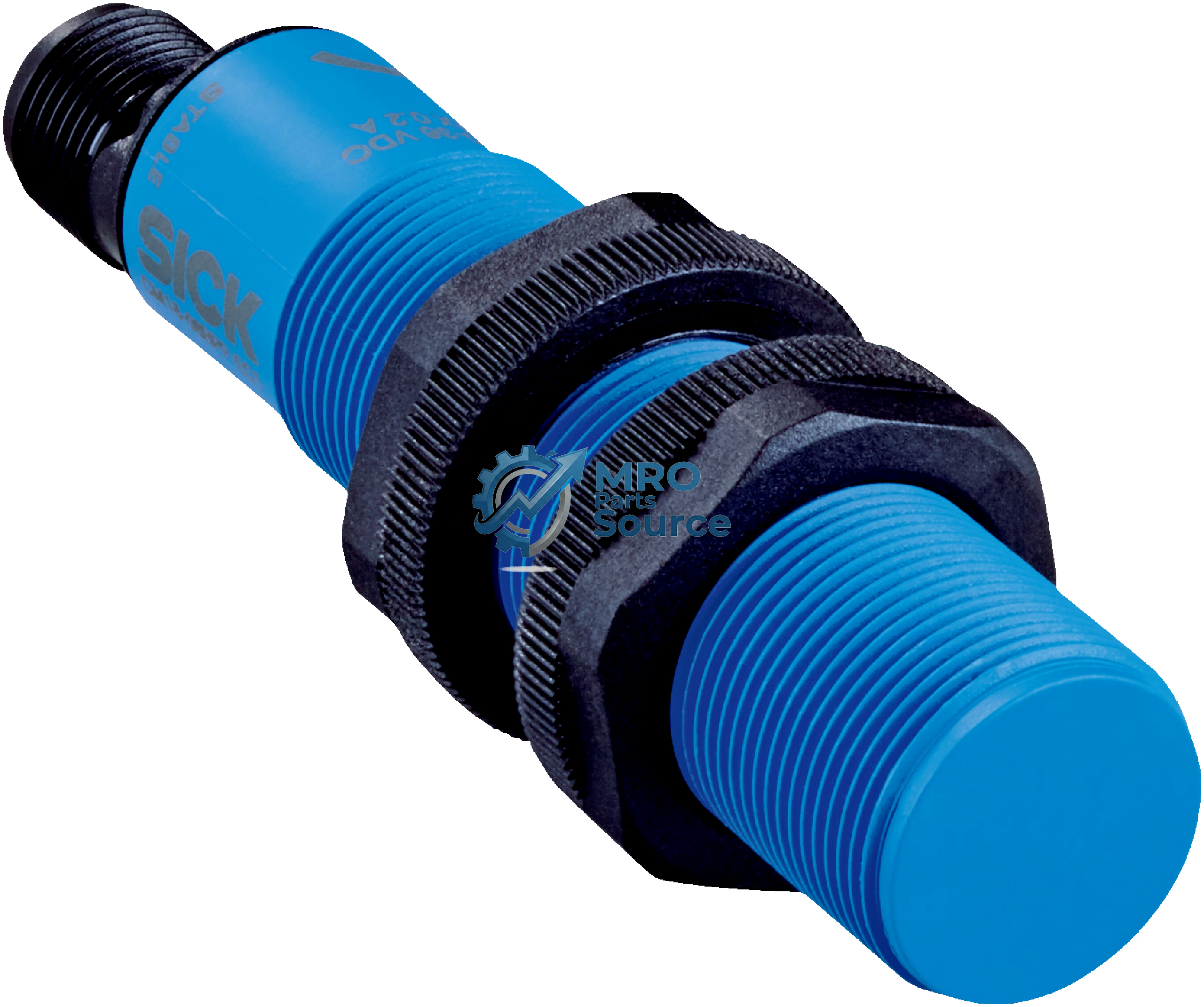

SICK CM18-08BPP-EC1 Capacitive proximity sensors

P/N: 6058145

SICK CM18-08BPP-EC1 Capacitive proximity sensors — datasheet, specifications, part number lookup & authentic sourcing

Get a Quote / Inquire

Overview

Housing	Metric
Thread size	M18 x 1
Diameter	Ø 18 mm
Sensing range Sn	0 mm ... 8 mm
Safe sensing range Sa	6.12 mm 1)
Installation type	Flush
Switching frequency	50 Hz
Connection type	Male connector M12, 4-pin
Switching output	PNP
Switching output detail	PNP
Output function	Complementary
Output characteristic	Wire configurable
Electrical wiring	DC 4-wire Adjustment Potentiometer
Sensitivity (11 turns)
Adjustment
Potentiometer	Sensitivity (11 turns)
Enclosure rating	IP67 IP68 2) IP69K
Items supplied	Mounting nut, PA12 plastic (2x) Screwdriver for potentiometer adjustment (1 x)

For flush mounting in electrically conductive materials Sa = 0.8 x Sr at temperatures <0 °C and >60 °C.
1 m water depth / 60 min.

Mechanics/electronics
Supply voltage	10 V DC ... 36 V DC
Ripple	≤ 10 % 1)
Voltage drop	≤ 2.5 V DC 2)
Current consumption	12 mA 3)
Time delay before availability	≤ 200 ms
Hysteresis	3 % ... 20 %
Reproducibility	≤ 5 % 4) 5)
Temperature drift (of Sr)	± 10 %
EMC	According to EN 60947-5-2
Continuous current Ia	≤ 200 mA
Short-circuit protection	✔
Power-up pulse protection	✔
Shock and vibration resistance	According to EN 60068
Ambient operating temperature	–30 °C ... +85 °C 6)
Ambient temperature, storage	–40 °C ... +85 °C
Housing material	Plastic, PBT
Housing length	85 mm
Thread length	55 mm
Tightening torque, max.	≤ 2.6 Nm
UL File No.	NRKH.E191603
Safety-related parameters
MTTFD	919 years
DCavg	0 %
TM (mission time)	20 years
Reduction Factors
Note	The values are reference values which may vary
Metal	1
Water	1
PVC	Approx. 0.4
Oil	Approx. 0.25
Glass	0.6
Ceramics	0.5
Alcohol	0.7
Wood	0.2 ... 0.7 ## Installation note
Remark	Associated graphic see "Installation"
B	18 mm
C	18 mm
D	24 mm
F	24 mm
