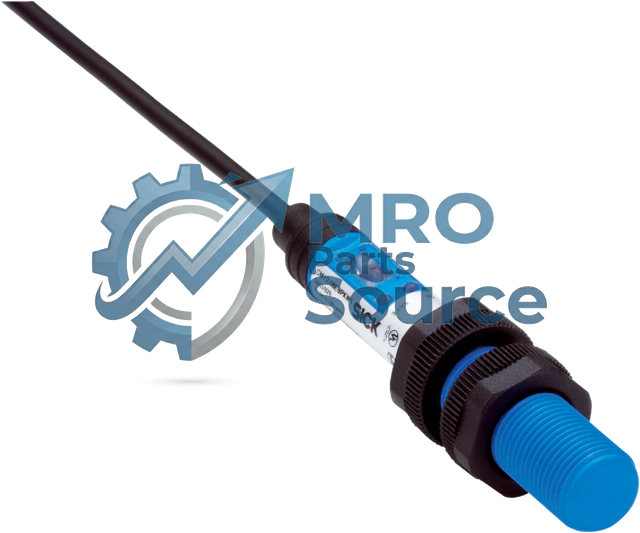

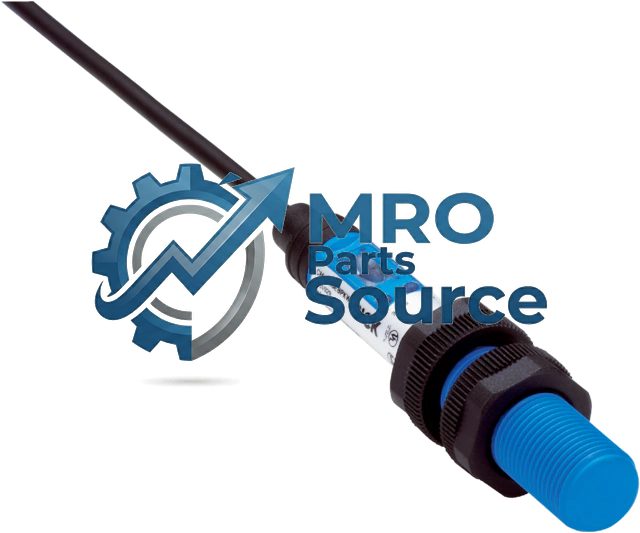

SICK CM12-08EBP-KW1 Capacitive proximity sensors
P/N: 6051029
SICK CM12-08EBP-KW1 Capacitive proximity sensors — datasheet, specifications, part number lookup & authentic sourcing
Get a Quote / Inquire
Overview
| Housing | Metric |
| Thread size | M12 x 1 |
| Diameter | Ø 12 mm |
| Sensing range Sn | 0.5 mm ... 8 mm 1) 0.5 mm ... 4 mm 2) |
| Safe sensing range Sa | 5.76 mm |
| Installation type | Non-flush / flush 3) |
| Switching frequency | 15 Hz |
| Connection type | Cable, 4-wire, 2 m 4) |
| Switching output | PNP / NPN |
| Switching output detail | PNP / NPN |
| Output function | NC or NO |
| Output characteristic | Wire configurable 5) |
| Electrical wiring | DC 4-wire Adjustment Teach-in button Sensitivity Wire/pin |
| Sensitivity | |
| Adjustment | |
| Teach-in button | Sensitivity |
| Wire/pin | Sensitivity |
| Enclosure rating | IP68 (According to EN 60529) 6) |
| Items supplied | Mounting nut, PA12 plastic (2x) |
- For non-flush installation.
- For flush mounting.
- For flush mounting, Teach-in necessary.
- Do not bend below 0 °C.
- Automatic detection.
- 1.3 m water depth / 60 min.
Specifications
| Mechanics/electronics | |
| Supply voltage | 10 V DC ... 36 V DC |
| Ripple | ≤ 10 % 1) |
| Voltage drop | ≤ 2.5 V DC 2) |
| Current consumption | 12 mA 3) |
| Time delay before availability | ≤ 120 ms |
| Hysteresis | 3 % ... 20 % |
| Reproducibility | ≤ 5 % 4) 5) |
| EMC | According to EN 60947-5-2 6) |
| Continuous current Ia | ≤ 200 mA |
| Cable material | PVC |
| Conductor size | 0.14 mm² |
| Short-circuit protection | ✔ |
| Power-up pulse protection | ✔ |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| Ambient operating temperature | –20 °C ... +85 °C |
| Ambient temperature, storage | –40 °C ... +85 °C |
| Housing material | Plastic |
| Housing length | 84.7 mm |
| Thread length | 46.5 mm |
| Tightening torque, max. | ≤ 1 Nm |
| UL File No. | NRKH.E191603 |
| Safety-related parameters | |
| MTTFD | 603 years |
| DCavg | 0 % |
| TM (mission time) | 20 years |
| Reduction Factors | |
| Note | The values are reference values which may vary |
| Metal | 1 |
| Water | 1 |
| PVC | Approx. 0.4 |
| Oil | Approx. 0.25 |
| Glass | 0.6 |
| Ceramics | 0.5 |
| Alcohol | 0.7 |
| Wood | 0.2 ... 0.7 ## Installation note |
| Remark | Associated graphic see "Installation" |
| A | 8 mm |
| B | 12 mm |
| C | 12 mm |
| D | 12 mm |
| E | 8 mm |
| F | 6 x Sn (max. 48 mm) |
Downloads
- datasheet CM12-08EBP-KW1 (453 KB)
