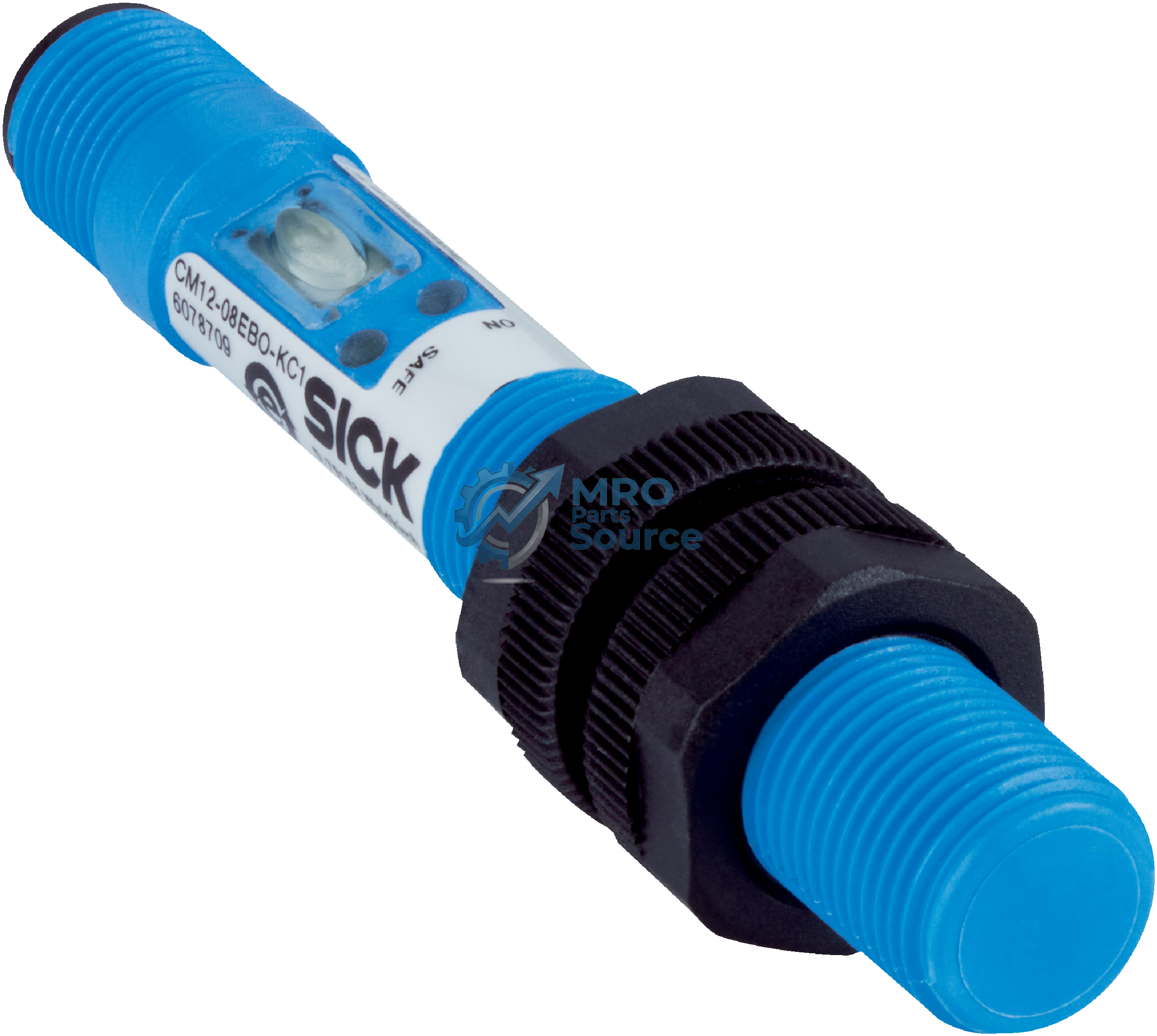

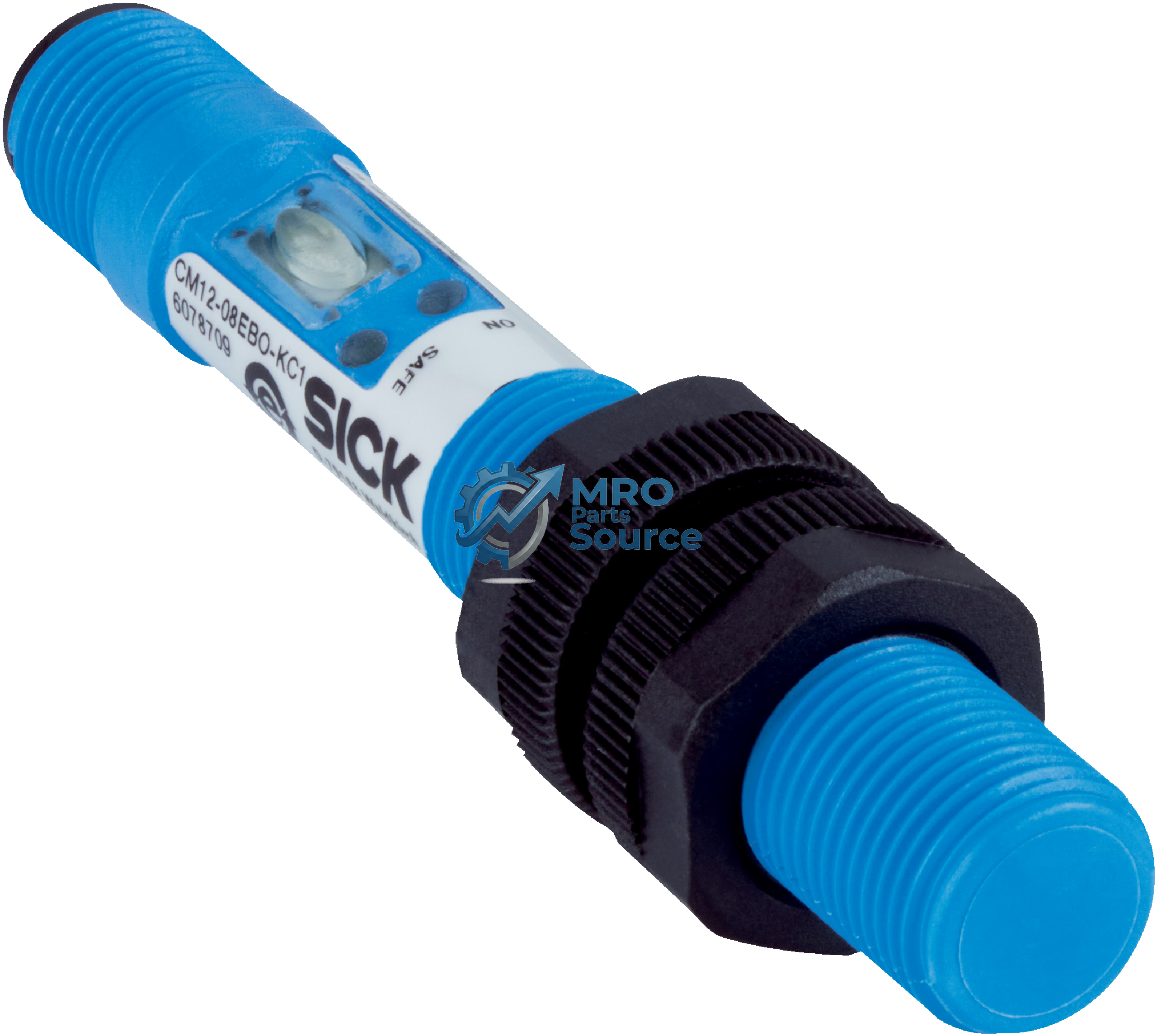

SICK CM12-08EBP-KC1 Capacitive proximity sensors

P/N: 6051030

SICK CM12-08EBP-KC1 Capacitive proximity sensors — datasheet, specifications, part number lookup & authentic sourcing

Get a Quote / Inquire

Overview

Housing	Metric
Thread size	M12 x 1
Diameter	Ø 12 mm
Sensing range Sn	0.5 mm ... 8 mm 1) 0.5 mm ... 4 mm 2)
Safe sensing range Sa	5.76 mm
Installation type	Non-flush / flush 3)
Switching frequency	15 Hz
Connection type	Male connector M12, 4-pin
Switching output	PNP / NPN
Switching output detail	PNP / NPN
Output function	NC or NO
Output characteristic	Wire configurable 4)
Electrical wiring	DC 4-wire Adjustment Teach-in button Sensitivity Wire/pin
Sensitivity
Adjustment
Teach-in button	Sensitivity
Wire/pin	Sensitivity
Enclosure rating	IP68 (According to EN 60529) 5)
Items supplied	Mounting nut, PA12 plastic (2x)

Mechanics/electronics
Supply voltage	10 V DC ... 36 V DC
Ripple	≤ 10 % 1)
Voltage drop	≤ 2.5 V DC 2)
Current consumption	12 mA 3)
Time delay before availability	≤ 120 ms
Hysteresis	3 % ... 20 %
Reproducibility	≤ 5 % 4) 5)
EMC	According to EN 60947-5-2 6)
Continuous current Ia	≤ 200 mA
Short-circuit protection	✔
Power-up pulse protection	✔
Shock and vibration resistance	30 g, 11 ms / 10 ... 55 Hz, 1 mm
Ambient operating temperature	–20 °C ... +85 °C
Ambient temperature, storage	–40 °C ... +85 °C
Housing material	Plastic
Housing length	84.7 mm
Thread length	46.5 mm
Tightening torque, max.	≤ 1 Nm
UL File No.	NRKH.E191603
Safety-related parameters
MTTFD	603 years
DCavg	0 %
TM (mission time)	20 years
Reduction Factors
Note	The values are reference values which may vary
Metal	1
Water	1
PVC	Approx. 0.4
Oil	Approx. 0.25
Glass	0.6
Ceramics	0.5
Alcohol	0.7
Wood	0.2 ... 0.7 ## Installation note
Remark	Associated graphic see "Installation"
A	8 mm
B	12 mm
C	12 mm
D	12 mm
E	8 mm
F	6 x Sn (max. 48 mm)
