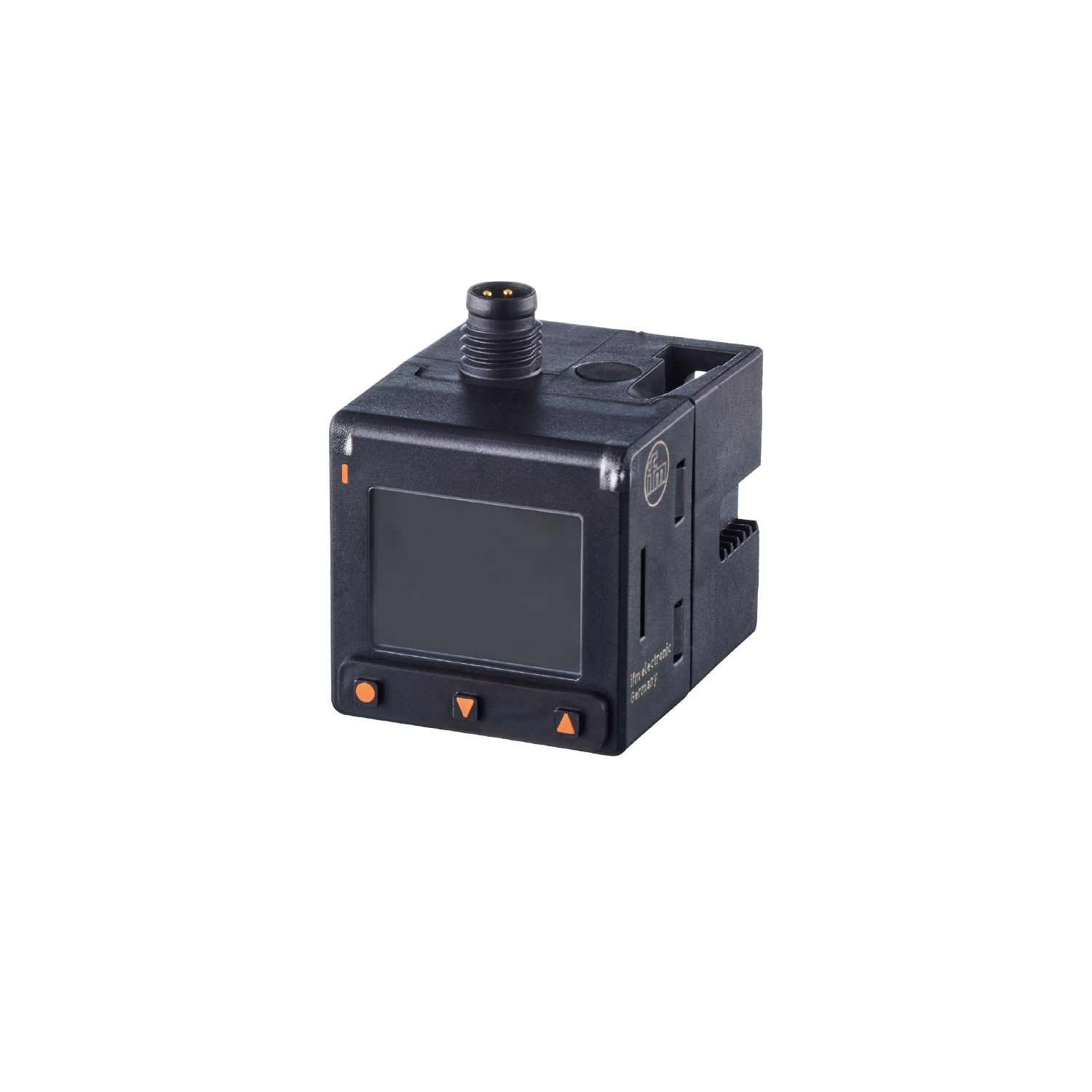

IFM PQC819 Pressure Sensors

Pressure sensor for pneumatics

IFM PQC819 Pressure Sensors — datasheet, specifications, part number lookup & authentic sourcing

Get a Quote / Inquire

Request a Quote Chat via WhatsApp Email Us

Product Highlights

Reliable monitoring of the system pressure in pneumatics and in compressed air systems
Very high overpressure and vacuum resistance
Clearly visible TFT display
Red/green display for clear identification of the acceptable range
With programmable switching output and analogue output
Convenient operation via buttons or parameter setting via IO-Link

Overview

Product designation	Electronic pressure sensor
Application	for industrial applications
Process connection	threaded connection G 1/8 internal thread (2x)
Operating voltage DC	18...30 V
Voltage type	DC
Electrical design	PNP/NPN
Total number of outputs	2
Output function	normally open / normally closed; (parameterisable); analogue
Output signal	switching signal; analogue signal; IO-Link; (configurable)
Analogue current output	4...20, invertible; (scalable) mA
Analogue voltage output	0...10 / 1...5, invertible; (scalable) V
Measuring range	-1...0 bar-1000...0 mbar-100...0 kPa
Connection	M8 Connector
Materials	PBT; PC; TPE; NBR; FKM; brass; silicon (coated)
Materials (wetted parts)	PBT; FKM; brass; silicon (coated)
Display	Display 1": 128 x 96 pixels; switching status: 1 x LED yellow
Ambient temperature	0...60 °C
Medium temperature	0...60 °C
Communication interface	IO-Link
Brand	ifm electronic gmbh or equivalent
Type	PQC819

Specifications

Product characteristics
Number of inputs and outputs	Number of digital outputs: 1; Number of analogue outputs: 1
Measuring range	-1...0 bar -1000...0 mbar -100...0 kPa
Process connection	threaded connection G 1/8 internal thread (2x)
Application
Special feature	Gold-plated contacts
Application	for industrial applications
Media	compressed air; nitrogen (N2)
Conditionally suitable for	other media on request
Medium temperature[°C]	0...60
Min. burst pressure
20 bar	2 MPa
Pressure rating
10 bar	1 MPa
Vacuum resistance
-1000 mbar	-0.1 MPa
Type of pressure	relative pressure; vacuum
Electrical data
Operating voltage[V]	18...30 DC
Current consumption[mA]	< 30
Min. insulation resistance[MΩ]	100; (500 V DC)
Protection class	III
Reverse polarity protection	yes
Overvoltage protection	yes; (< 40 V)
Power-on delay time[s]	0.3
Integrated watchdog	yes
Inputs / outputs
Number of inputs and outputs	Number of digital outputs: 1; Number of analogue outputs: 1
Outputs
Total number of outputs	2
Output signal	switching signal; analogue signal; IO-Link; (configurable)
Electrical design	PNP/NPN; (configurable)
Number of digital outputs	1
Output function	normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC[V]	2.5
Permanent current rating of switching output DC[mA]	100
Switching frequency DC[Hz]	< 170
Number of analogue outputs	1
Analogue current output[mA]	4...20, invertible; (scalable)
Max. load[Ω]	500
Analogue voltage output[V]	0...10 / 1...5, invertible; (scalable)
Min. load resistance[Ω]	2000
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes
Measuring/setting range
Measuring range	-1...0 bar -1000...0 mbar -100...0 kPa
Set point SP
-1...0 bar	-100...0 kPa
Analogue start point
-1...-0.2 bar	-100...-20 kPa
Analogue end point
-0.8...0 bar	-80...0 kPa
In steps of
0.001 bar	0.1 kPa
Accuracy / deviations
Switch point accuracy[% of the span]	< ± 1; (turn down 1:1)
Repeatability[% of the span]	< ± 0,1; (with temperature fluctuations < 10 K: turn down 1:1)
Characteristics deviation[% of the span]	< ± 1; (turn down 1:1; including linearity, hysteresis and repeatability)
Linearity deviation[% of the span]	< ± 1 % (limit value setting to DIN EN IEC 62828-1)
Hysteresis deviation[% of the span]	< ± 0,25; (turn down 1:1)
Long-term stability[% of the span]	< ± 0,1; (turn down 1:1; per year)
Temperature coefficient zero point[% of the span / 10 K]	0,2; (Turn down 1:1)
Temperature coefficient span[% of the span / 10 K]	0,2; (Turn down 1:1)
Response times
Response time[ms]	6
Damping process value dAP[s]	0...4
Damping for the analogue output dAA[s]	0...99.99
Software / programming
Parameter setting options	display can be rotated and switched off; analogue output selectable and scalable; Teach function; simulation function; diagnostic function
Interfaces
Communication interface	IO-Link
Transmission type	COM3 (230,4 kBaud)
IO-Link revision	1.1.3
SDCI standard	IEC 61131-9: 2019-06
Profiles
Smart Sensor - SSP 4.1.1	Measuring and Switching Sensor, 1 channel
BLOB	Binary Large Object transfer
Common - I&D	Identification and Diagnosis
Extension	Quantity detection, switches when value exceeds the setpoint
Function	Locator
Function	ProductURI
SIO mode	yes
Required master port type	A
Process data analogue	1
Process data binary	2
Min. process cycle time[ms]	0.6
IO-Link resolution pressure[bar]	0.0001
IO-Link process data (cyclical)
function	bit length
pressure	16
device status	4
SSC1.1	1
SSC1.2	1
IO-Link functions (acyclical)	application specific tag; internal temperature; Medium temperature
Supported DeviceIDs
Type of operation	DeviceID
default	1726
Operating conditions
Ambient temperature[°C]	0...60
Storage temperature[°C]	-25...85
Protection	IP 65
Tests / approvals
EMC
DIN EN 61326-1
Shock resistance
DIN EN 60068-2-27	50 g (11 ms)
Vibration resistance
DIN EN 60068-2-6	20 g (10...2000 Hz)
MTTF[years]	392
UL approval
UL approval no.	J067
File number UL	E174189
Pressure Equipment Directive	Sound engineering practice; can be used for stable gases fluid group 2
Mechanical data
Weight[g]	53.2
Housing	rectangular
Dimensions[mm]	37.7 x 30 x 38.6
Materials	PBT; PC; TPE; NBR; FKM; brass; silicon (coated)
Materials (wetted parts)	PBT; FKM; brass; silicon (coated)
Min. pressure cycles	50 million
Process connection	threaded connection G 1/8 internal thread (2x)
Displays / operating elements
Display
Display 1"	128 x 96 pixels
switching status	1 x LED, yellow
Display unit	mbar; kPa; mmHg; kgf/cm²; %
Accessories
Items supplied	head cap screw: 2 x (M3 x 8 mm)
Remarks
Pack quantity	1 pcs.
Electrical connection
Connector	1 x M8; coding: A; Contacts: 4, gold-plated
