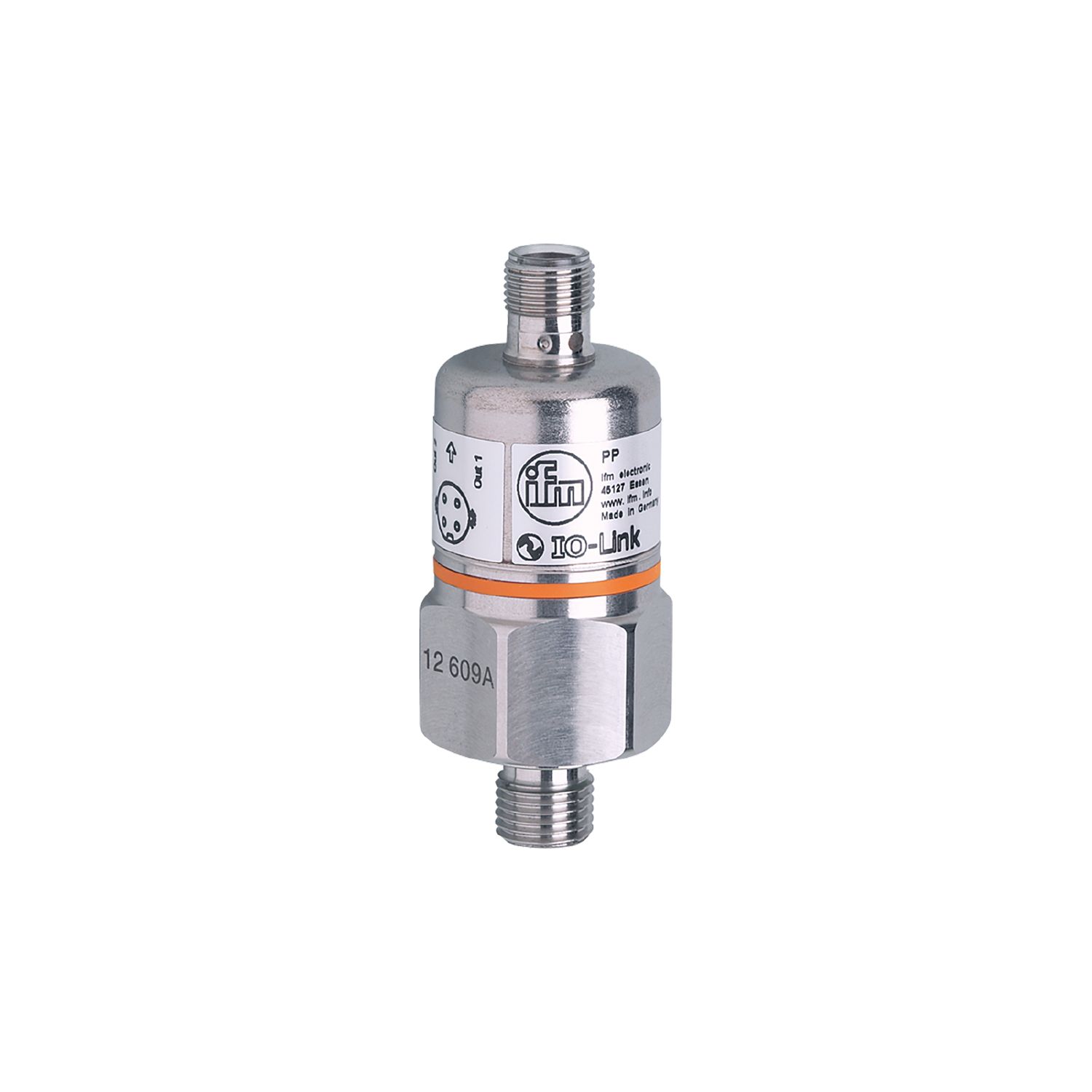

IFM PP7554 Pressure Sensors

Pressure switch with ceramic measuring cell

IFM PP7554 Pressure Sensors — datasheet, specifications, part number lookup & authentic sourcing

Get a Quote / Inquire

Request a Quote Chat via WhatsApp Email Us

Product Highlights

Robust design for use in harsh industrial environments
Two switching outputs, one of which can be configured as diagnostic output
High shock and vibration resistance
Lifespan of more than 100 million pressure cycles
User-friendly communication and parameterisation via IO-Link

Overview

Product designation	Electronic pressure sensor
Application	for industrial applicationsfor railway applications
Process connection	threaded connection G 1/4 external thread internal thread:M5
Operating voltage DC	9.6...36 V
Voltage type	DC
Electrical design	PNP
Total number of outputs	2
Output function	normally open / normally closed; (parameterisable)
Output signal	switching signal; IO-Link; (configurable)
Measuring range	-1...10 bar-14.5...145 psi-100...1000 kPa-0.1...1 MPa
Connection	M12 Connector
Materials	stainless steel (304/1.4301); FKM; EPDM/X; PA
Materials (wetted parts)	stainless steel (303/1.4305); ceramics; FKM
Display	operation: 2 x LED green; switching status: 2 x LED yellow
Ambient temperature	-25...85 °C
Medium temperature	-25...90 °C
Communication interface	IO-Link
Brand	ifm electronic gmbh or equivalent
Type	PP7554

Specifications

Product characteristics
Number of inputs and outputs	Number of digital outputs: 2
Measuring range	-1...10 bar -14.5...145 psi -100...1000 kPa -0.1...1 MPa
Process connection	threaded connection G 1/4 external thread internal thread:M5
Application
Application	for industrial applications; for railway applications
Media	liquids and gases
Medium temperature[°C]	-25...90
Min. burst pressure	150 bar 2175 psi 15 MPa
Pressure rating	75 bar 1087 psi 7.5 MPa
Type of pressure	relative pressure; vacuum
Electrical data
Operating voltage[V]	9.6...36 DC; (communication mode: 18...32)
Current consumption[mA]	< 45
Min. insulation resistance[MΩ]	100; (500 V DC)
Protection class	III
Reverse polarity protection	yes
Power-on delay time[s]	0.3
Inputs / outputs
Number of inputs and outputs	Number of digital outputs: 2
Outputs
Total number of outputs	2
Output signal	switching signal; IO-Link; (configurable)
Electrical design	PNP
Number of digital outputs	2
Output function	normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC[V]	2
Permanent current rating of switching output DC[mA]	250
Switching frequency DC[Hz]	170
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes
Measuring/setting range
Measuring range	-1...10 bar -14.5...145 psi -100...1000 kPa -0.1...1 MPa
Set point SP	-0.9...10 bar -13...145 psi -0.09...1 MPa
Reset point rP	-0.95...9.95 bar -14...144 psi -0.095...0.995 MPa
In steps of	0.05 bar 1 psi 0.005 MPa
Factory setting
SP1 = 2.50 bar rP1 = 2.30 bar
SP2 = 7.50 bar rP2 = 7.30 bar
Accuracy / deviations
Switch point accuracy[% of the span]	< ± 0,5
Repeatability[% of the span]	< ± 0,1; (with temperature fluctuations < 10 K)
Characteristics deviation[% of the span]	< ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting)
Zero-point stabilisation[% of the span]
switching output, display	1,0
Zero-point stabilisation[% of the span]
IO-Link	1,0; (see operating instructions zero-point behaviour)
Hysteresis deviation[% of the span]	< ± 0,1
Long-term stability[% of the span]	< ± 0,1; (per year)
Temperature coefficient zero point[% of the span / 10 K]	< ± 0,2; (0...80 °C)
Temperature coefficient span[% of the span / 10 K]	< ± 0,2; (0...80 °C)
Response times
Response time[ms]	< 3
Damping process value dAP in steps[s]	0,003 - 0,006 - 0,010 - 0,017 - 0,060 - 0,125 - 0,250 - 0,500
Interfaces
Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.0
SIO mode	yes
Required master port type	A
Process data analogue	1
Process data binary	2
Min. process cycle time[ms]	2.3
Supported DeviceIDs
Type of operation	DeviceID
default	6
Operating conditions
Ambient temperature[°C]	-25...85
Storage temperature[°C]	-40...100
Protection	IP 68; (7 days / 1 m water depth / 0.1 bar)
Tests / approvals
EMC
immunity	EN 61000-6-2
EN 61000-4-2 ESD	4 kV contact discharge / 15 kV air discharge
EN 61000-4-3 HF radiated	20 V/m
EN 61000-4-4 Burst	4 kV coupling clamp
EN 61000-4-5 Surge	0,5 kV supply / 1 kV signal for DC units
EN 61000-4-6 HF conducted	10 V
immunity	according to the automotive directive 1995/54/EC / 04/104EG / 05/83/EG
absorber chamber test to ISO 11452-2:	80 V/m
Shock resistance
DIN IEC 60068-2-27 / DIN IEC 60068-2-29	1000 g
DIN EN 61373	category 3
Vibration resistance
DIN IEC 68-2-6	20 g (10...2000 Hz)
DIN EN 60068-2-64	14 g
DIN EN 61373	category 2
MTTF[years]	310
Pressure Equipment Directive	Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
Railway applications
DIN EN 50155	Klasse T3, C1, S1
Mechanical data
Weight[g]	226
Housing	cylindrical
Dimensions[mm]	Ø 30 / L = 79.5
Materials	stainless steel (304/1.4301); FKM; EPDM/X; PA
Materials (wetted parts)	stainless steel (303/1.4305); ceramics; FKM
Min. pressure cycles	100 million
Process connection	threaded connection G 1/4 external thread internal thread:M5
Restrictor element integrated	no (can be retrofitted)
Displays / operating elements
Display
operation	2 x LED, green
switching status	2 x LED, yellow
Teach function	yes
Remarks
Remarks
with reference to UL: "limited voltage" with overcurrent protection in accordance with UL508
Pack quantity	1 pcs.
Electrical connection
Connector	1 x M12; coding: A; Contacts: 4

Downloads

PP7554 (248 KB)
