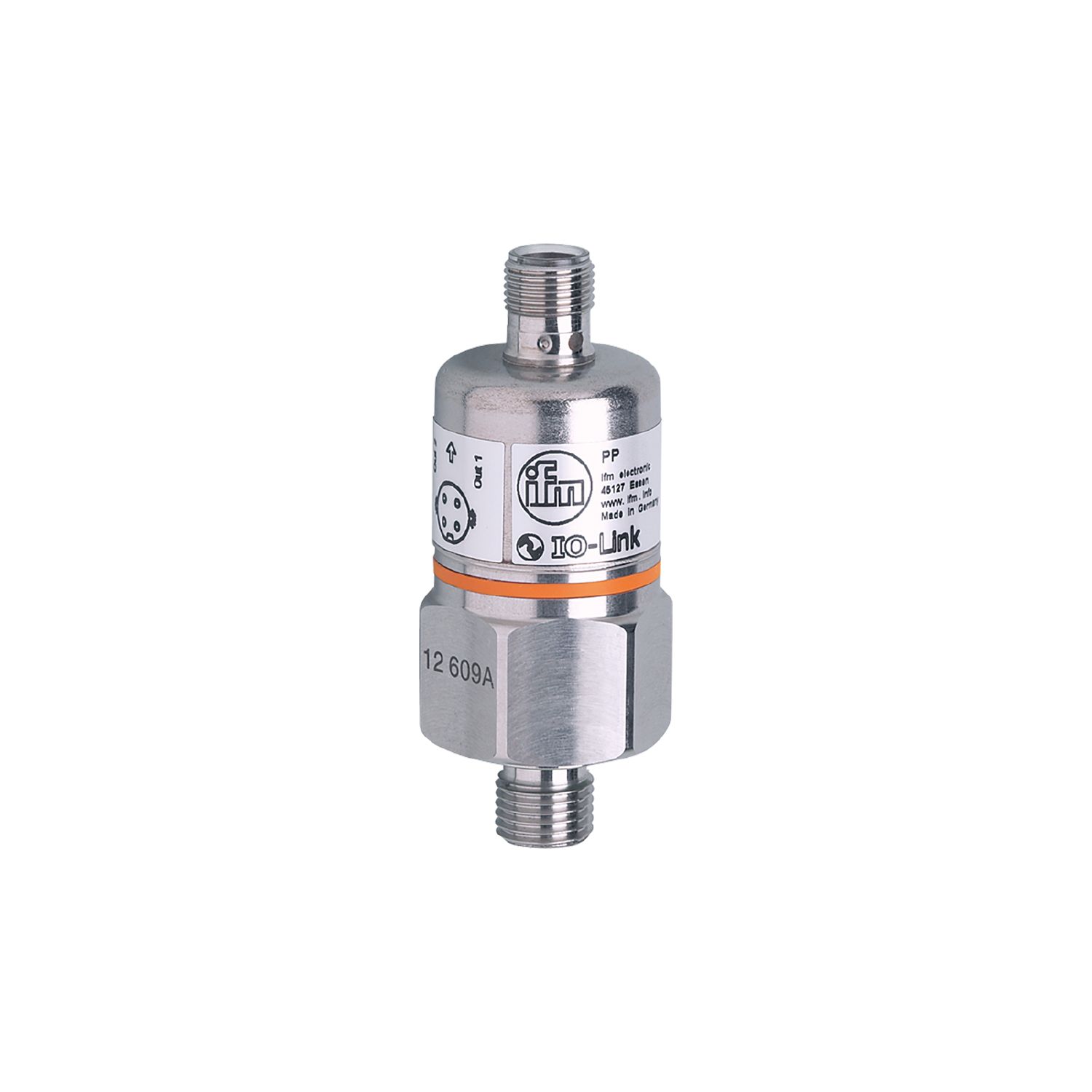

IFM PP7551 Pressure Sensors

Pressure switch with ceramic measuring cell

IFM PP7551 Pressure Sensors — datasheet, specifications, part number lookup & authentic sourcing

Get a Quote / Inquire

Request a Quote Chat via WhatsApp Email Us

Product Highlights

Overview

Product designationElectronic pressure sensor
Applicationfor industrial applicationsfor railway applications
Process connectionthreaded connection G 1/4 external thread internal thread:M5
Operating voltage DC9.6...36 V
Voltage typeDC
Electrical designPNP
Total number of outputs2
Output functionnormally open / normally closed; (parameterisable)
Output signalswitching signal; IO-Link; (configurable)
Measuring range0...250 bar0...3625 psi0...25 MPa
ConnectionM12 Connector
Materialsstainless steel (304/1.4301); FKM; EPDM/X; PA
Materials (wetted parts)stainless steel (303/1.4305); ceramics; FKM
Displayoperation: 2 x LED green; switching status: 2 x LED yellow
Ambient temperature-25...85 °C
Medium temperature-25...90 °C
Communication interfaceIO-Link
Brandifm electronic gmbh or equivalent
TypePP7551

Specifications

Product characteristics
Number of inputs and outputsNumber of digital outputs: 2
Measuring range0...250 bar 0...3625 psi 0...25 MPa
Process connectionthreaded connection G 1/4 external thread internal thread:M5
Application
Applicationfor industrial applications; for railway applications
Medialiquids and gases
Conditionally suitable foruse in gases at pressures > 25 bar only on request
Medium temperature[°C]-25...90
Min. burst pressure850 bar 12300 psi 85 MPa
Pressure rating400 bar 5800 psi 40 MPa
Type of pressurerelative pressure
Electrical data
Operating voltage[V]9.6...36 DC; (communication mode: 18...32)
Current consumption[mA]< 45
Min. insulation resistance[MΩ]100; (500 V DC)
Protection classIII
Reverse polarity protectionyes
Power-on delay time[s]0.3
Inputs / outputs
Number of inputs and outputsNumber of digital outputs: 2
Outputs
Total number of outputs2
Output signalswitching signal; IO-Link; (configurable)
Electrical designPNP
Number of digital outputs2
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC[V]2
Permanent current rating of switching output DC[mA]250
Switching frequency DC[Hz]170
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes
Measuring/setting range
Measuring range0...250 bar 0...3625 psi 0...25 MPa
Set point SP2...250 bar 40...3620 psi 0.2...25 MPa
Reset point rP1...249 bar 20...3600 psi 0.1...24.9 MPa
In steps of1 bar 20 psi 0.1 MPa
Factory setting
SP1 = 63 bar rP1 = 58 bar
SP2 = 188 bar rP2 = 183 bar
Accuracy / deviations
Switch point accuracy[% of the span]< ± 0,5
Repeatability[% of the span]< ± 0,1; (with temperature fluctuations < 10 K)
Characteristics deviation[% of the span]< ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting)
Zero-point stabilisation[% of the span]
switching output, display1,0
Zero-point stabilisation[% of the span]
IO-Link1,0; (see operating instructions zero-point behaviour)
Hysteresis deviation[% of the span]< ± 0,1
Long-term stability[% of the span]< ± 0,1; (per year)
Temperature coefficient zero point[% of the span / 10 K]< ± 0,2; (0...80 °C)
Temperature coefficient span[% of the span / 10 K]< ± 0,2; (0...80 °C)
Response times
Response time[ms]< 3
Damping process value dAP in steps[s]0,003 - 0,006 - 0,010 - 0,017 - 0,060 - 0,125 - 0,250 - 0,500
Interfaces
Communication interfaceIO-Link
Transmission typeCOM2 (38,4 kBaud)
IO-Link revision1.0
SIO modeyes
Required master port typeA
Process data analogue1
Process data binary2
Min. process cycle time[ms]2.3
Supported DeviceIDs
Type of operationDeviceID
default3
Operating conditions
Ambient temperature[°C]-25...85
Storage temperature[°C]-40...100
ProtectionIP 68; (7 days / 1 m water depth / 0.1 bar)
Tests / approvals
EMC
immunityEN 61000-6-2
EN 61000-4-2 ESD4 kV contact discharge / 15 kV air discharge
EN 61000-4-3 HF radiated20 V/m
EN 61000-4-4 Burst4 kV coupling clamp
EN 61000-4-5 Surge0,5 kV supply / 1 kV signal for DC units
EN 61000-4-6 HF conducted10 V
immunityaccording to the automotive directive 1995/54/EC / 04/104EG / 05/83/EG
absorber chamber test to ISO 11452-2:80 V/m
Shock resistance
DIN IEC 60068-2-27 / DIN IEC 60068-2-291000 g
DIN EN 61373category 3
Vibration resistance
DIN IEC 68-2-620 g (10...2000 Hz)
DIN EN 60068-2-6414 g
DIN EN 61373category 2
MTTF[years]308
UL approval
UL approval no.J010
Pressure Equipment DirectiveSound engineering practice; can be used for group 2 fluids; group 1 fluids on request
Railway applications
DIN EN 50155Klasse T3, C1, S1
Mechanical data
Weight[g]227.5
Housingcylindrical
Dimensions[mm]Ø 30 / L = 79.5
Materialsstainless steel (304/1.4301); FKM; EPDM/X; PA
Materials (wetted parts)stainless steel (303/1.4305); ceramics; FKM
Min. pressure cycles100 million
Process connectionthreaded connection G 1/4 external thread internal thread:M5
Restrictor element integratedno (can be retrofitted)
Displays / operating elements
Display
operation2 x LED, green
switching status2 x LED, yellow
Teach functionyes
Remarks
Pack quantity1 pcs.
Electrical connection
Connector1 x M12; coding: A; Contacts: 4
