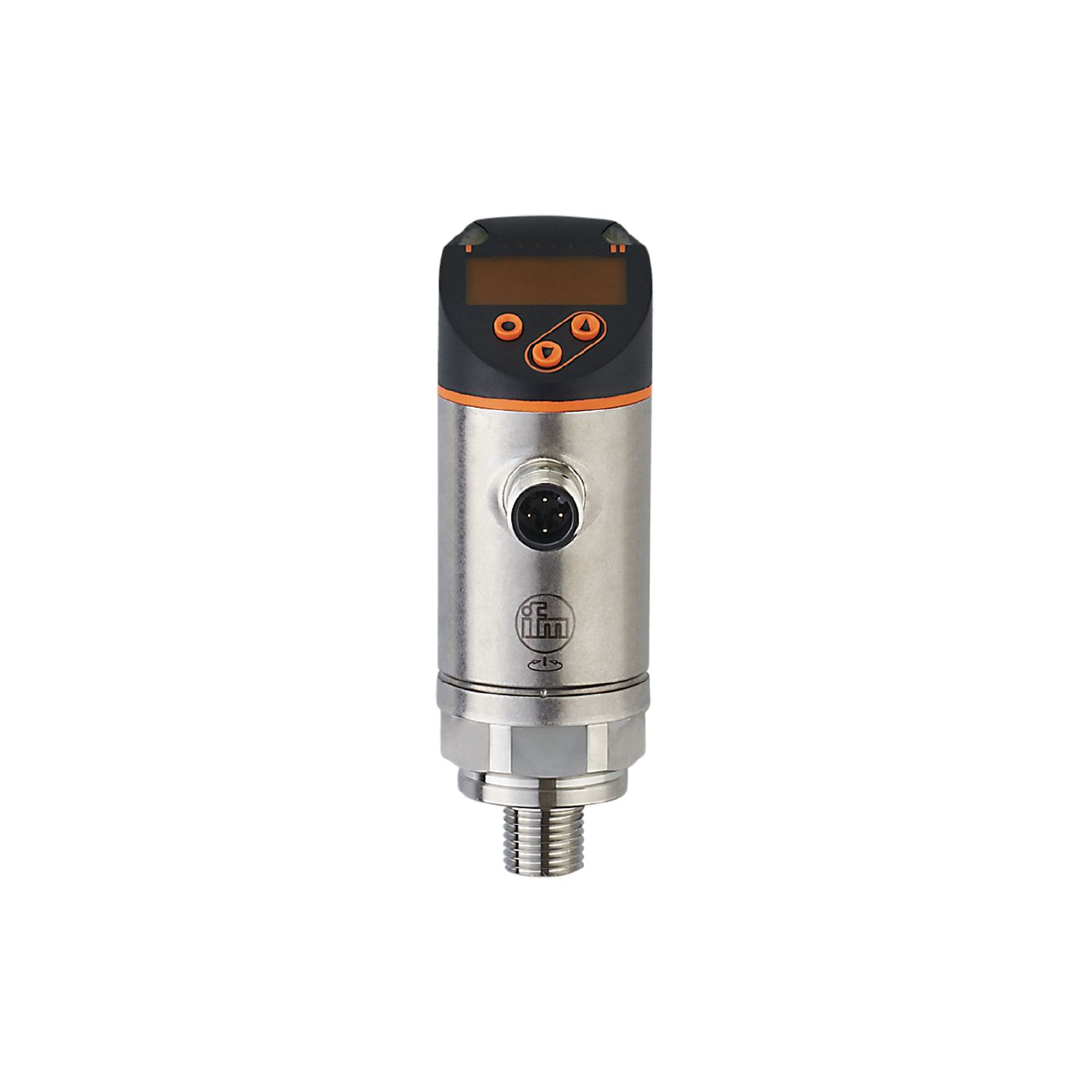

Pressure sensor with display

IFM PN2696 Pressure Sensors — datasheet, specifications, part number lookup & authentic sourcing

Get a Quote / Inquire

Request a Quote Chat via WhatsApp Email Us

Product Highlights

Overview

Product designationElectronic pressure sensor
Applicationfor industrial applications
Process connectionthreaded connection 1/4" NPT external thread
Operating voltage DC18...30 V
Voltage typeDC
Electrical designPNP/NPN
Total number of outputs2
Output functionnormally open / normally closed; (parameterisable); analogue
Output signalswitching signal; analogue signal; IO-Link; (configurable)
Analogue current output4...20; (scalable 1:5) mA
Analogue voltage output0...10; (scalable 1:5) V
Measuring range-0.125...2.5 bar-125...2500 mbar-1.8...36.25 psi-12.5...250 kPa
ConnectionM12 Connector
Materialsstainless steel (316L/1.4404); PBT+PC-GF30; PBT-GF20; PC
Materials (wetted parts)stainless steel (316L/1.4404); AI2O3 (96%; ceramics); FKM
DisplayDisplay unit: 3 x LED green (bar, psi, kPa); switching status: 2 x LED yellow; measured values: alphanumeric display red/green 4-digit
Ambient temperature-25...80 °C
Medium temperature-25...80 °C
Communication interfaceIO-Link
Brandifm electronic gmbh or equivalent
TypePN2696

Specifications

Product characteristics
Number of inputs and outputsNumber of digital outputs: 2; Number of analogue outputs: 1
Measuring range-0.125...2.5 bar -125...2500 mbar -1.8...36.25 psi -12.5...250 kPa
Process connectionthreaded connection 1/4" NPT external thread
Application
Special featureGold-plated contacts
Measuring elementceramic-capacitive pressure measuring cell
Applicationfor industrial applications
Medialiquids and gases
Medium temperature[°C]-25...80
Min. burst pressure50 bar 725 psi 5000 kPa
Pressure rating20 bar 290 psi 2000 kPa
Vacuum resistance[mbar]-1000
Type of pressurerelative pressure
MAWP for applications according to CRN20 bar 290 psi 2000 kPa
Electrical data
Operating voltage[V]18...30 DC; (to SELV/PELV)
Current consumption[mA]< 35
Min. insulation resistance[MΩ]100; (500 V DC)
Protection classIII
Reverse polarity protectionyes
Power-on delay time[s]0.3
Integrated watchdogyes
Inputs / outputs
Number of inputs and outputsNumber of digital outputs: 2; Number of analogue outputs: 1
Outputs
Total number of outputs2
Output signalswitching signal; analogue signal; IO-Link; (configurable)
Electrical designPNP/NPN
Number of digital outputs2
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC[V]2
Permanent current rating of switching output DC[mA]250
Switching frequency DC[Hz]< 500
Number of analogue outputs1
Analogue current output[mA]4...20; (scalable 1:5)
Max. load[Ω]500
Analogue voltage output[V]0...10; (scalable 1:5)
Min. load resistance[Ω]2000
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes
Measuring/setting range
Measuring range-0.125...2.5 bar -125...2500 mbar -1.8...36.25 psi -12.5...250 kPa
Analogue start point-0.125...2 bar -1.8...29 psi -12.5...200 kPa
Analogue end point0.375...2.5 bar 5.45...36.25 psi 37.5...250 kPa
Factory setting / CMPT = 2
Set point SP-0.11...2.5 bar -1.6...36.25 psi -11...250 kPa
Reset point rP-0.12...2.49 bar -1.75...36.1 psi -12...249 kPa
Min. difference between SP and rP0.015 bar 0.15 psi 1.5 kPa
In steps of0.005 bar 0.05 psi 0.5 kPa
Status_B High Resolution / CMPT = 3
Set point SP-0.109...2.5 bar -1.58...36.26 psi -10.9...250 kPa
Reset point rP-0.12...2.49 bar -1.73...36.11 psi -12...249 kPa
Min. difference between SP and rP0.011 bar 0.15 psi 1.1 kPa
In steps of0.001 bar 0.01 psi 0.1 kPa
Accuracy / deviations
Switch point accuracy[% of the span]< ± 0,4; (Turn down 1:1)
Repeatability[% of the span]< ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1)
Characteristics deviation[% of the span]< ± 0,25 (BFSL) / < ± 0,5 (LS); (Turn down 1:1; BFSL = Best Fit Straight Line; LS = limit value setting)
Hysteresis deviation[% of the span]< ± 0,1; (Turn down 1:1)
Long-term stability[% of the span]< ± 0,05; (Turn down 1:1; per 6 months)
Temperature coefficient zero point[% of the span / 10 K]< ± 0,2; (-0...80 °C)
Temperature coefficient span[% of the span / 10 K]< ± 0,2; (-0...80 °C)
Notes on the accuracy / deviationswitch point accuracy, linearity error under DNV GL: < ± 1%: < ± 1%
Response times
Response time[ms]< 1.5
Delay time programmable dS, dr[s]0...50
Damping process value dAP[s]0...4
Damping for the analogue output dAA[s]0...4
Max. response time analogue output[ms]3
Software / programming
Parameter setting optionshysteresis / window; normally open / normally closed; switch-on/switch-off delay; Damping; Display unit; current/voltage output
Interfaces
Communication interfaceIO-Link
Transmission typeCOM2 (38,4 kBaud)
IO-Link revision1.1
SDCI standardIEC 61131-9
SIO modeyes
Required master port typeA; (when pin 2 not connected: B)
Supported DeviceIDs
Type of operationDeviceID
Factory setting / CMPT = 2474
Status_B High Resolution / CMPT = 3990
NoteFor further information please see the IODD PDF file under "Downloads"
Factory setting / CMPT = 2
Profiles
Smart Sensor - SSP 0Generic Profiled Sensor
FunctionDevice identification
FunctionProcess data variable
FunctionDevice diagnosis
Min. process cycle time[ms]2.3
IO-Link resolution pressure[bar]0.001
IO-Link process data (cyclical)
functionbit length
pressure14
binary switching information2
IO-Link functions (acyclical)application specific tag
Status_B High Resolution / CMPT = 3
Profiles
Smart Sensor - SSP 3.1Measuring Sensor
Common - I&DIdentification and Diagnosis
Min. process cycle time[ms]3
IO-Link resolution pressure[bar]0.001
IO-Link process data (cyclical)
functionbit length
pressure16
device status4
binary switching information2
IO-Link functions (acyclical)application specific tag
Operating conditions
Ambient temperature[°C]-25...80
Storage temperature[°C]-40...100
ProtectionIP 65; IP 67
Tests / approvals
EMC
DIN EN 61000-6-2
DIN EN 61000-6-3
Shock resistance
DIN EN 60068-2-2750 g (11 ms)
Vibration resistance
DIN EN 60068-2-620 g (10...2000 Hz)
MTTF[years]138
UL approval
UL approval no.J012
Pressure Equipment DirectiveSound engineering practice; can be used for group 2 fluids; group 1 fluids on request
Mechanical data
Weight[g]245
Housingcylindrical
Dimensions[mm]Ø 34 / L = 90.7
Materialsstainless steel (316L/1.4404); PBT+PC-GF30; PBT-GF20; PC
Materials (wetted parts)stainless steel (316L/1.4404); AI2O3 (96%; ceramics); FKM
Min. pressure cycles100 million
Tightening torque[Nm]> 50; (depends on the lubrication, the seal and the pressure load)
Process connectionthreaded connection 1/4" NPT external thread
Restrictor element integratedno (can be retrofitted)
Displays / operating elements
Display
Display unit3 x LED, green (bar, psi, kPa)
switching status2 x LED, yellow
measured valuesalphanumeric display, red/green 4-digit
Remarks
Pack quantity1 pcs.
Electrical connection
Connector1 x M12; coding: A; Contacts: 4, gold-plated
