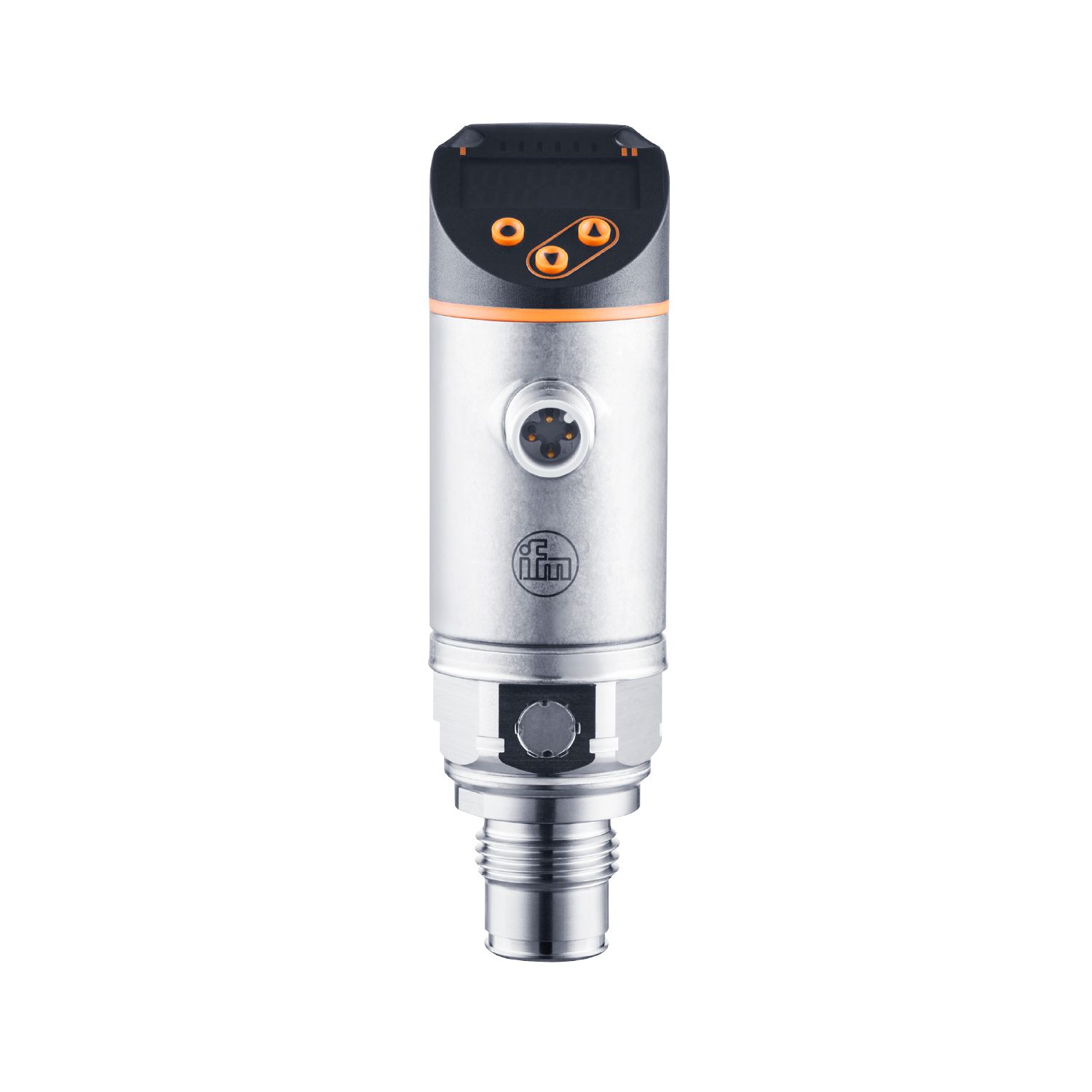

IFM PF1515 Pressure Sensors

Pressure sensor with display

IFM PF1515 Pressure Sensors — datasheet, specifications, part number lookup & authentic sourcing

Get a Quote / Inquire

Request a Quote Chat via WhatsApp Email Us

Product Highlights

For the installation of pressure sensors in containers and pipes
Easy, quick and secure mounting
High pressure rating
Stable fixing by screwing in
Easy parameter setting and process value output via IO-Link

Overview

Product designation	Electronic pressure sensor
Application	flush mountable for industrial applicationsfor industrial applications
Process connection	threaded connection G 1/2 external thread - 21 mm
Operating voltage DC	18...32 V
Voltage type	DC
Electrical design	PNP/NPN
Total number of outputs	2
Output function	normally open / normally closed; (parameterisable); analogue
Output signal	switching signal; analogue signal; IO-Link; (configurable)
Analogue current output	4...20; (scalable 1:10) mA
Analogue voltage output	0...10; (scalable 1:10) V
Measuring range	-1...6 bar-100...600 kPa
Connection	M12 Connector
Materials	Housing: stainless steel (316L/1.4404); Operating units: PBT, PC; sealings: FKM; pressure compensation element: PTFE
Materials (wetted parts)	measuring cell: Al2O3 (ceramics); Process connection: stainless steel (316L/1.4435) surface characteristics: Ra < 0,4 µm / Rz = 4 µm; Sealing: PTFE; (FKM for sealing with seal DIN EN ISO 1179-2, see operating instructions)
Display	Display unit: 2x LED green (bar, kPa); switching status: 2 x LED yellow; measured values: alphanumeric display red/green 4-digit
Ambient temperature	-25...80 °C
Medium temperature	-25...80; (flush mount zero-leak using metal-to-metal seal. for permissible temperatures of other sealing versions, see sealing materials under “Accessories”) °C
Communication interface	IO-Link
Brand	ifm electronic gmbh or equivalent
Type	PF1515

Specifications

Product characteristics
Number of inputs and outputs	Number of digital outputs: 2; Number of analogue outputs: 1
Measuring range
-1...6 bar	-100...600 kPa
Process connection	threaded connection G 1/2 external thread - 21 mm
Application
Special feature	Gold-plated contacts
Measuring element	ceramic-capacitive pressure measuring cell
Temperature monitoring	yes
Application	flush mountable for industrial applications; for industrial applications
Media	viscous media and liquids with suspended particles; Liquids; other media on request
Medium temperature[°C]	-25...80; (flush mount zero-leak using metal-to-metal seal. for permissible temperatures of other sealing versions, see sealing materials under “Accessories”)
Min. burst pressure
120 bar	12000 kPa
Pressure rating
50 bar	5000 kPa
Vacuum resistance
-1000 mbar	-100 kPa
Type of pressure	relative pressure; vacuum
No dead space	yes
Electrical data
Operating voltage[V]	18...32 DC
Current consumption[mA]	15...40; (240 at max. load current)
Min. insulation resistance[MΩ]	100; (500 V DC)
Protection class	III
Reverse polarity protection	yes
Power-on delay time[s]	0.5
Integrated watchdog	yes
Inputs / outputs
Number of inputs and outputs	Number of digital outputs: 2; Number of analogue outputs: 1
Outputs
Total number of outputs	2
Output signal	switching signal; analogue signal; IO-Link; (configurable)
Electrical design	PNP/NPN
Number of digital outputs	2
Output function	normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC[V]	2
Permanent current rating of switching output DC[mA]	100
Switching frequency DC[Hz]	< 170
Number of analogue outputs	1
Analogue current output[mA]	4...20; (scalable 1:10)
Max. load[Ω]	500
Analogue voltage output[V]	0...10; (scalable 1:10)
Min. load resistance[Ω]	2000
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes
Measuring/setting range
Measuring range
-1...6 bar	-100...600 kPa
Set point SP
-1...6 bar	-100...600 kPa
Analogue start point
-1...5.4 bar	-100...540 kPa
Analogue end point
-0.4...6 bar	-40...600 kPa
In steps of
0.001 bar	0.1 kPa
Measuring range (bar)
Factory setting	SSC1.1 SP1 = 1.5 bar SSC1.1 SP2 = 1.38 bar
SSC1.2 SP1 = 4.5 bar	SSC1.2 SP2 = 4.38 bar
ASP = 0.00 bar	AEP = 6 bar
dAP = 0.06 s	dAA = 0.06 s
Measuring range (kPa)
Factory setting	SSC1.1 SP1 = 150 kPa SSC1.1 SP2 = 138 kPa
SSC1.2 SP1 = 450 kPa	SSC1.2 SP2 = 438 kPa
ASP = 0.00 kPa	AEP = 600 kPA
dAP = 0.06 s	dAA = 0.06 s
Accuracy / deviations
Switch point accuracy[% of the span]	< ± 0,5; (DIN EN IEC 62828-1; Turn down 1:1)
Repeatability[% of the span]	< ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1)
Characteristics deviation[% of the span]	< ± 0,5; (DIN IEC EN 62828-1; incl. zero point and span error, non-linearity, hysteresis; Turn down 1:1)
Linearity deviation[% of the span]	< ± 0,15; (Turn down 1:1)
Zero-point stabilisation[% of the span]
IO-Link, analogue output	0,25; (see operating instructions zero-point behaviour)
display, switching output	0,5
Hysteresis deviation[% of the span]	< ± 0,15; (Turn down 1:1)
Long-term stability	< ± 0,1; (turn down 1:1; per year)
Temperature coefficient zero point and span[% of the span / 10 K]	< ± 0,1; (-25...80 °C)
Temperature monitoring
Accuracy[K]	± 2 + (0,045 x ( Ambient temperature - Medium temperature ))
Repeatability[K]	± 0,2
Response times
Response time[ms]	< 3
Damping process value dAP[s]	0...99.99
Damping for the analogue output dAA[s]	0...99.99
Step response time analogue output[ms]	3
Temperature monitoring
Dynamic response T05 / T09[s]	< 10 / < 45; (DIN EN 60751 water; > 0,9 m/s)
Software / programming
Parameter setting options	hysteresis / window; normally open / normally closed; switch-on/switch-off delay; Damping; Display unit; current/voltage output
Interfaces
Communication interface	IO-Link
Transmission type	COM3 (230,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles
Smart Sensor - SSP 4.1.2	Measuring and Switching Sensor, 2 channel
Common - I&D	Identification and Diagnosis
Extension	Quantity detection, switches when value exceeds the setpoint
Function	Locator
Function	ProductURI
SIO mode	yes
Required master port type	A
Min. process cycle time[ms]	1
IO-Link resolution pressure[bar]	0.02
IO-Link resolution temperature[K]	0.2
IO-Link process data (cyclical)
function	bit length
pressure	16
temperature	16
device status	4
binary switching information pressure	2
binary switching information temperature	2
IO-Link functions (acyclical)	application specific tag; internal temperature; operating hours counter; switching cycles counter; Pressure peak counter; Temperature peak counter
Supported DeviceIDs
Type of operation	DeviceID
default	1972
Note	For further information please see the IODD PDF file under "Downloads"
Operating conditions
Ambient temperature[°C]	-25...80
Storage temperature[°C]	-40...100
Protection	IP 65; IP 67; IP 69; (to DIN EN 60529)
Tests / approvals
EMC
DIN EN 61326-1
Shock resistance
DIN EN 60068-2-27	50 g (11 ms)
Vibration resistance
DIN EN 60068-2-6	10 g (10...2000 Hz)
MTTF[years]	245
Embedded software included	yes
Mechanical data
Weight[g]	215.95
Housing	cylindrical
Dimensions[mm]	Ø 34 / L = 117.8
Materials	Housing: stainless steel (316L/1.4404); Operating units: PBT, PC; sealings: FKM; pressure compensation element: PTFE
Materials (wetted parts)	measuring cell: Al2O3 (ceramics); Process connection: stainless steel (316L/1.4435) surface characteristics: Ra < 0,4 µm / Rz = 4 µm; Sealing: PTFE; (FKM for sealing with seal DIN EN ISO 1179-2, see operating instructions)
Min. pressure cycles	100 million
Tightening torque[Nm]	25
Process connection	threaded connection G 1/2 external thread - 21 mm
Displays / operating elements
Display
Display unit	2x LED, green (bar, kPa)
switching status	2 x LED, yellow
measured values	alphanumeric display, red/green 4-digit
Operating elements	3 pushbuttons
Accessories
Items supplied
Gasket: G1/2, FKM DIN EN ISO1179-2 (-15...80°C), E30492
Accessories (optional)	Gasket: G1/2, EPDM DIN EN ISO1179-2 (-25...80°C), E30451 Gasket: G1/2, FFKM DIN EN ISO1179-2 (-5...80°C), E30513 O-ring: 16,4 x 1, FKM (-15...80°C), E30510 O-ring: 16,4 x 1, EPDM (-25...80°C), E30511 O-ring: 16,4 x 1, FFKM (-5...80°C), E30512 cover for filter system: E30605
Remarks
Pack quantity	1 pcs.
Electrical connection - plug
Connector	1 x M12; coding: A; Contacts: 4, gold-plated
