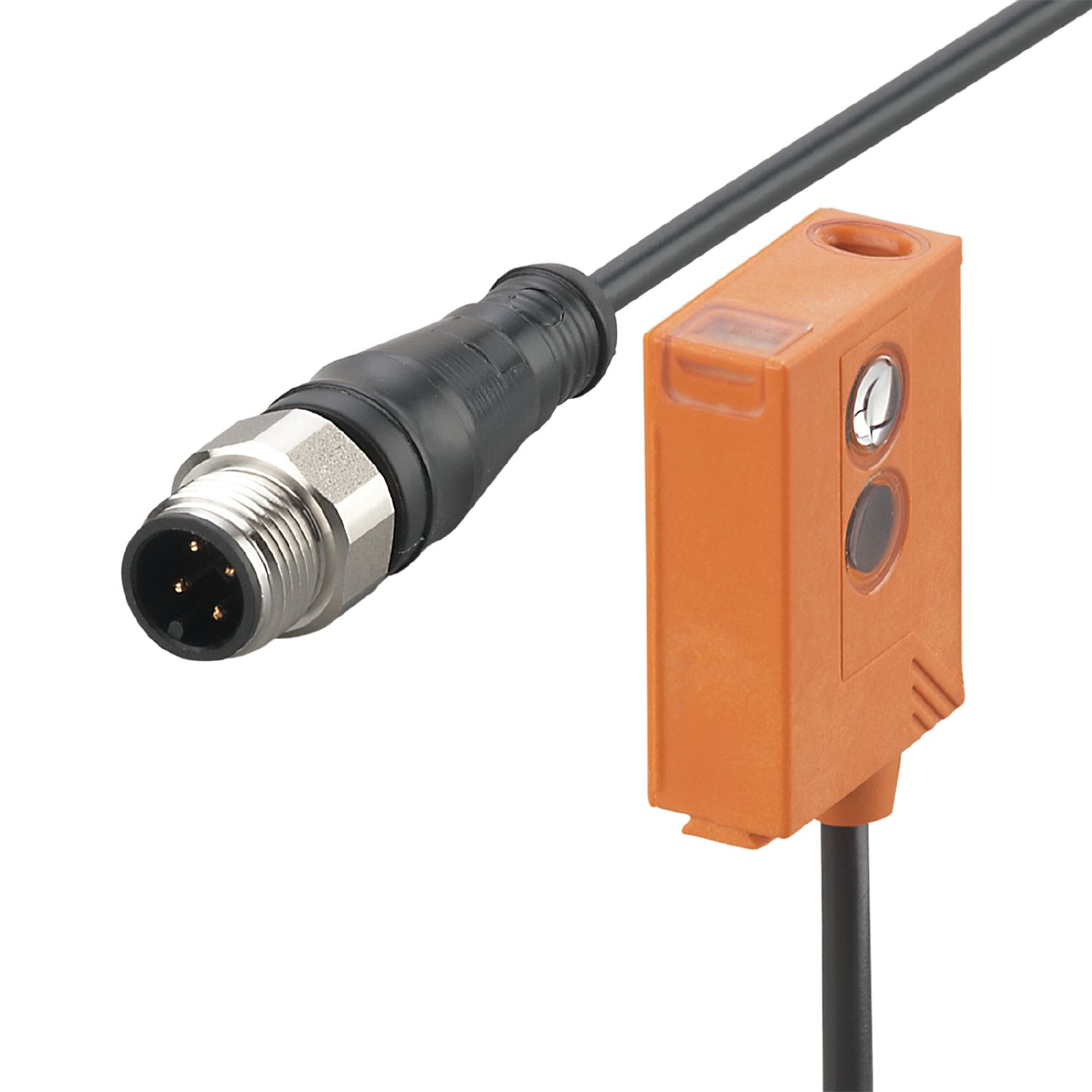

IFM OJ5061 Photoelectric Sensors
Diffuse reflection sensor
IFM OJ5061 Photoelectric Sensors — datasheet, specifications, part number lookup & authentic sourcing
Get a Quote / Inquire
Product Highlights
- Particularly compact housing for use where space is restricted
- Very long range
- Simple alignment due to visible red light
- Intuitive setting of sensitivity and output function
- Easy mounting by clipping onto a mounting base
Overview
| Product designation | Diffuse reflection sensor |
| Application | Industrial applications / factory automation |
| Voltage type | DC |
| Operating voltage DC | 10...30 V |
| Electrical design | PNP |
| Output function | light-on/dark-on mode; (programmable) |
| Lens alignment | front lens |
| Range | 1...600 mm |
| Type of light | red light |
| Connection | 0.15 m PVC-Cable; M12 Connector |
| Materials | housing: ABS; fixture: diecast zinc; LED window: SEPS; pushbutton: SEPS |
| Display | switching status: 1 x LED yellow; operation: 1 x LED green; function: 1 x LED red |
| Protection | IP 67 |
| Ambient temperature | -25...60 °C |
| Brand | ifm electronic gmbh or equivalent |
| Type | OJ5061 |
Specifications
| Product characteristics | |
| Type of light | red light |
| Housing | rectangular |
| Application | |
| Special feature | Gold-plated contacts |
| Function principle | Diffuse reflection sensor |
| Application | Industrial applications / factory automation |
| Electrical data | |
| Operating voltage[V] | 10...30 DC |
| Current consumption[mA] | < 22 |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length[nm] | 660 |
| Outputs | |
| Electrical design | PNP |
| Output function | light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC[V] | 2.5 |
| Permanent current rating of switching output DC[mA] | 200 |
| Switching frequency DC[Hz] | 2000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
| Detection zone | |
| Range[mm] | 1...600; (white paper 200 x 200 mm 90% remission) |
| Range adjustable | yes |
| Max. light spot diameter[mm] | 60 |
| Light spot dimensions refer to | at maximum range |
| Operating conditions | |
| Ambient temperature[°C] | -25...60 |
| Protection | IP 67 |
| Tests / approvals | |
| EMC | |
| EN 60947-5-2 | |
| MTTF[years] | 867 |
| Mechanical data | |
| Weight[g] | 53.2 |
| Housing | rectangular |
| Dimensions[mm] | 35 x 24 x 11 |
| Materials | housing: ABS; fixture: diecast zinc; LED window: SEPS; pushbutton: SEPS |
| Lens material | |
| front pane:glass | |
| Lens alignment | front lens |
| Displays / operating elements | |
| Display | |
| switching status | 1 x LED, yellow |
| operation | 1 x LED, green |
| function | 1 x LED, red |
| Electronic lock | yes |
| Accessories | |
| Items supplied | Basic clip: 1, E20964 screws: 2 x (M3 x 16 mm) spring washers: 2 Nuts: 2 |
| Remarks | |
| Remarks | |
| operating voltage "supply class 2" according to cULus | |
| Pack quantity | 1 pcs. |
| Electrical connection | |
| Cable | 0.15 m, PVC |
| Connector | 1 x M12; coding: A; Contacts: 4, gold-plated; Moulded body: PVC; Locking: stainless steel (316L/1.4404) |
Downloads
- OJ5061 (324 KB)
