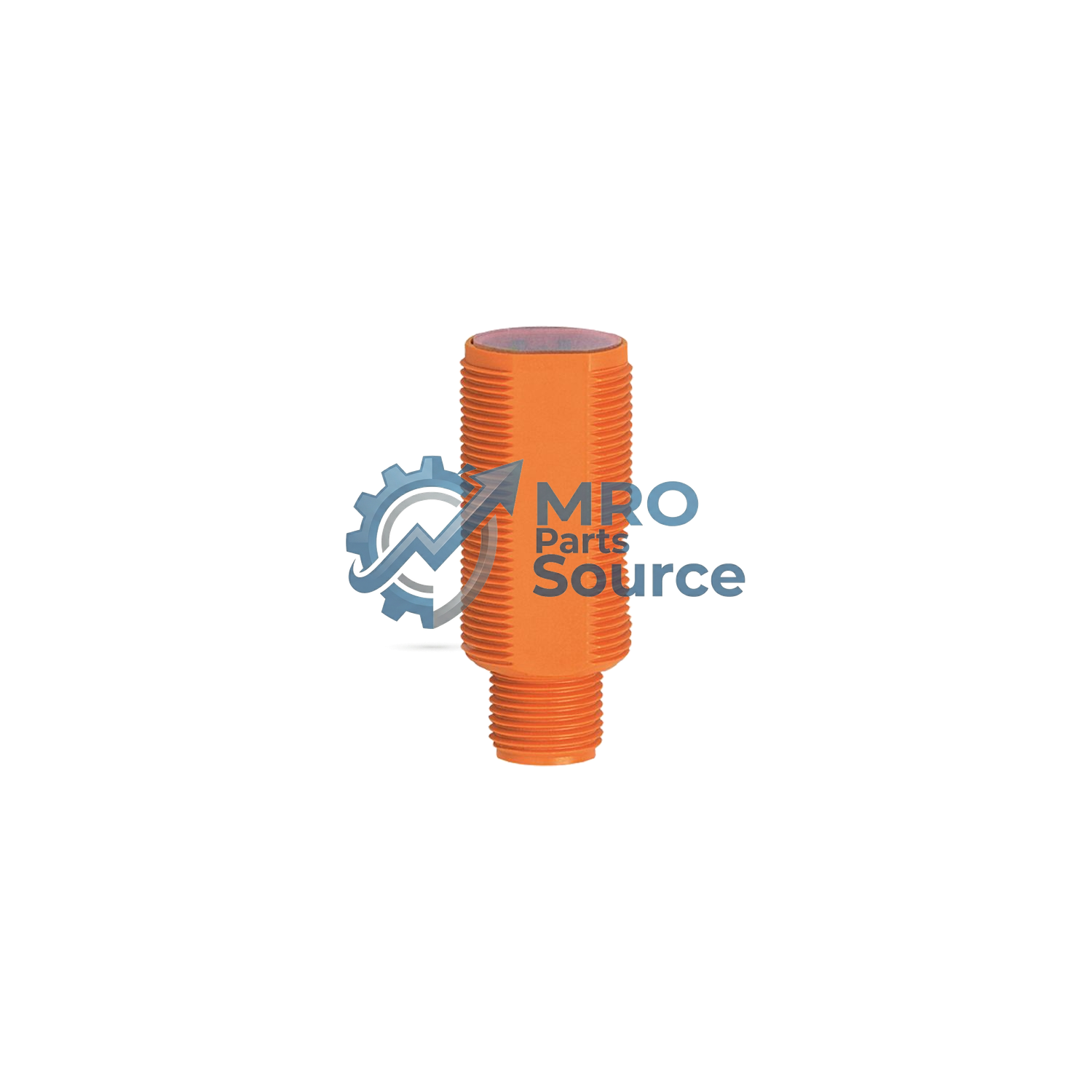

IFM OGT100 Photoelectric Sensors
Diffuse reflection sensor
IFM OGT100 Photoelectric Sensors — datasheet, specifications, part number lookup & authentic sourcing
Get a Quote / Inquire
Product Highlights
- Very long range
- For use in conveying and materials handling
- Intuitive setting of the sensitivity via potentiometer
- Excellent price/performance ratio
- Low-cost alternative to units with metal housing
Overview
| Product designation | Diffuse reflection sensor |
| Application | For use in conveying and materials handling |
| Voltage type | DC |
| Operating voltage DC | 10...30 V |
| Electrical design | PNP |
| Output function | light-on mode |
| Range | 10...400 mm |
| Type of light | red light |
| Housing length | 44 mm |
| Connection | M12 Connector |
| Materials | housing: ABS |
| Display | switching status: 1 x LED yellow |
| Protection | IP 65 |
| Ambient temperature | -25...60 °C |
| Brand | ifm electronic gmbh or equivalent |
| Type | OGT100 |
Specifications
| Product characteristics | |
| Type of light | red light |
| Housing | threaded type |
| Application | |
| Function principle | Diffuse reflection sensor |
| Application | For use in conveying and materials handling |
| Electrical data | |
| Operating voltage[V] | 10...30 DC |
| Current consumption[mA] | 20 |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length[nm] | 645 |
| Outputs | |
| Electrical design | PNP |
| Output function | light-on mode |
| Max. voltage drop switching output DC[V] | 2.5 |
| Permanent current rating of switching output DC[mA] | 200 |
| Switching frequency DC[Hz] | 1000 |
| Short-circuit protection | yes |
| Overload protection | yes |
| Detection zone | |
| Range[mm] | 10...400; (white paper 200 x 200 mm 90% remission) |
| Setting range[mm] | 70...400 |
| Range adjustable | yes |
| Max. light spot diameter[mm] | 25 |
| Light spot dimensions refer to | at maximum range |
| Operating conditions | |
| Ambient temperature[°C] | -25...60 |
| Protection | IP 65; (in conjunction with a corresponding connector) |
| Tests / approvals | |
| EMC | |
| EN 60947-5-2 | |
| MTTF[years] | 641 |
| Mechanical data | |
| Weight[g] | 14.8 |
| Housing | threaded type |
| Dimensions[mm] | M18 x 1 / L = 44 |
| Thread designation | M18 x 1 |
| Materials | housing: ABS |
| Lens material | front pane:PMMA |
| Displays / operating elements | |
| Display | |
| switching status | 1 x LED, yellow |
| Operating elements | potentiometer |
| Accessories | |
| Items supplied | lock nuts: 2 |
| Remarks | |
| Pack quantity | 1 pcs. |
| Electrical connection | |
| Connector | 1 x M12; coding: A; Contacts: 4 |
Downloads
- OGT100 (196 KB)
