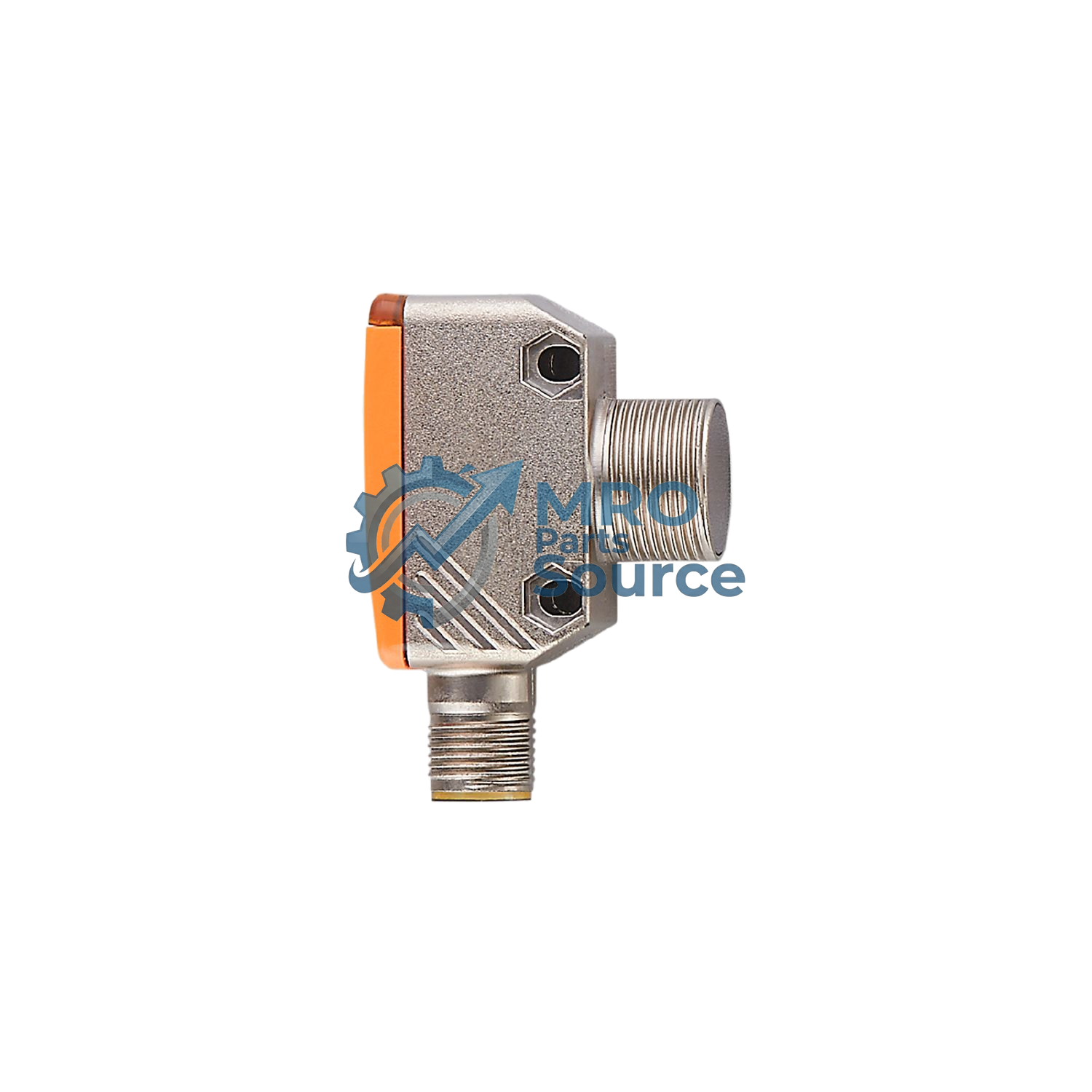

IFM OGH580 Photoelectric Sensors
Diffuse reflection sensor with background suppression
IFM OGH580 Photoelectric Sensors — datasheet, specifications, part number lookup & authentic sourcing
Get a Quote / Inquire
Product Highlights
- Robust rectangular metal housing with M18 thread on the side
- Particularly space-saving design for use where space is restricted
- Precise background suppression
- Programmable light-on/dark-on mode
- Intuitive setting of the sensitivity via pushbutton
- User-friendly communication and parameterisation via IO-Link
Overview
| Product designation | Diffuse reflection sensor |
| Application | Industrial applications / factory automation |
| Voltage type | DC |
| Operating voltage DC | 10...30 V |
| Electrical design | PNP |
| Output function | light-on/dark-on mode; (programmable) |
| Lens alignment | side lens |
| Range | 15...200 mm |
| Type of light | red light |
| Connection | M12 Connector |
| Materials | housing: diecast zinc; rear of the housing: PEI |
| Display | switching status: 1 x LED yellow; operation: 1 x LED green |
| Protection | IP 65IP 67 |
| Ambient temperature | -25...60 °C |
| Communication interface | IO-Link |
| Brand | ifm electronic gmbh or equivalent |
| Type | OGH580 |
Specifications
| Product characteristics | |
| Type of light | red light |
| Housing | rectangular with M18 thread |
| Application | |
| Special feature | Background suppression |
| Function principle | Diffuse reflection sensor |
| Application | Industrial applications / factory automation |
| Electrical data | |
| Operating voltage[V] | 10...30 DC; ("supply class 2" to cULus) |
| Rated insulation voltage[V] | 32 |
| Current consumption[mA] | 25 |
| Protection class | III |
| Reverse polarity protection | yes |
| Max. power-on delay time[ms] | 300 |
| Type of light | red light |
| Wave length[nm] | 645 |
| Outputs | |
| Electrical design | PNP |
| Output function | light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC[V] | 2.5 |
| Permanent current rating of switching output DC[mA] | 200 |
| Switching frequency DC[Hz] | 1000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Detection zone | |
| Range[mm] | 15...200; (white paper 200 x 200 mm 90% remission) |
| Range on white object (90 % remission)[mm] | 15...200 |
| Range on grey object (18 % remission)[mm] | 15...200 |
| Range on black object (6 % remission)[mm] | 15...200 |
| Range adjustable | yes |
| Max. light spot diameter[mm] | 13 |
| Light spot dimensions refer to | at maximum range |
| Background suppression available | yes |
| Interfaces | |
| Communication interface | IO-Link |
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| Profiles | |
| Smart Sensor - SSP 3.1 | Measuring Sensor |
| Common - I&D | Identification and Diagnosis |
| Function | Multiple switching signal |
| Function | Teach channel |
| SIO mode | yes |
| Required master port type | A |
| Min. process cycle time[ms] | 10 |
| IO-Link process data (cyclical) | |
| function | bit length |
| process value | 16 |
| device status | 4 |
| binary switching information | 1 |
| IO-Link functions (acyclical) | application specific tag; operating hours counter; switching cycles counter |
| Supported DeviceIDs | |
| Type of operation | DeviceID |
| default | 1164 |
| Note | For further information please see the IODD PDF file under "Downloads" |
| Operating conditions | |
| Ambient temperature[°C] | -25...60 |
| Storage temperature[°C] | -40...60 |
| Protection | IP 65; IP 67 |
| Tests / approvals | |
| EMC | |
| EN 60947-5-2 | |
| MTTF[years] | 782 |
| UL approval | |
| Ta | -25...60 °C |
| Enclosure type | Type 1 |
| voltage supply | Class 2 |
| File number UL | E174191 |
| Mechanical data | |
| Weight[g] | 60.5 |
| Housing | rectangular with M18 thread |
| Dimensions[mm] | 52.6 x 19 x 35.6 |
| Thread designation | M18 x 1 |
| Materials | housing: diecast zinc; rear of the housing: PEI |
| Lens material | |
| front pane:PEI | |
| Lens alignment | side lens |
| Displays / operating elements | |
| Display | |
| switching status | 1 x LED, yellow |
| operation | 1 x LED, green |
| Operating elements | |
| switch point | pushbutton |
| Output function | pushbutton |
| Accessories | |
| Items supplied | lock nut: 1 |
| Remarks | |
| Pack quantity | 1 pcs. |
| Electrical connection | |
| Connector | 1 x M12; coding: A; Contacts: 4 |
| Other data | |
| Repeatability / precision: 6 σ | |
| repeatability of the measured values | |
| Abstand | white (90 % remission) black (6 %...90 % remission) |
| 20 mm | 0.5 mm 1.0 mm |
| 50 mm | 0.8 mm 2.0 mm |
| 100 mm | 1.5 mm 4.5 mm |
| 150 mm | 3.0 mm 9.0 mm |
| 200 mm | 6.0 mm 20.0 mm |
| accuracy | |
| Abstand | white (90 % remission) black (6 %...90 % remission) |
| 20 mm | ± 2.0 mm ± 2.5 mm |
| 50 mm | ± 3.5 mm ± 4.5 mm |
| 100 mm | ± 6.0 mm ± 7.5 mm |
| 150 mm | ± 7.5 mm ± 11.0 mm |
| 200 mm | ± 10.0 mm ± 17.0 mm |
| The values apply at | |
| Extraneous light on the object | < 10 klx |
| constant ambient conditions | 23 °C / 960 hPa |
| minimum power-on time in minutes | 10 |
