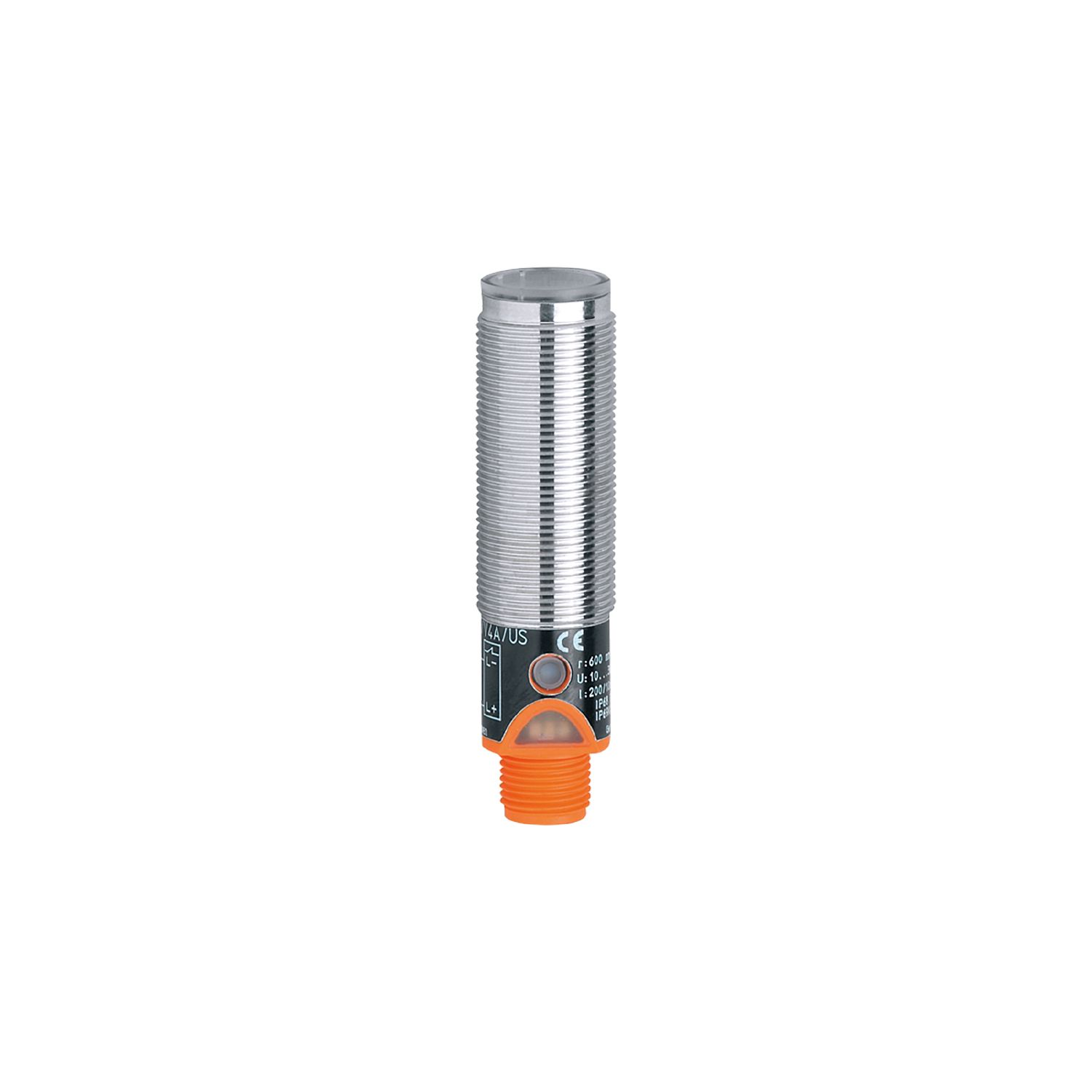

IFM OG5119 Photoelectric Sensors
Diffuse reflection sensor with background suppression
IFM OG5119 Photoelectric Sensors — datasheet, specifications, part number lookup & authentic sourcing
Get a Quote / Inquire
Product Highlights
- Robust stainless steel housing for use in harsh industrial environments
- Precise background suppression
- Intuitive setting of the sensitivity via pushbutton
- Programmable light-on/dark-on mode
- LED display to check operation, switching status and function
Overview
| Product designation | Diffuse reflection sensor |
| Application | Industrial applications / factory automation |
| Voltage type | DC |
| Operating voltage DC | 10...36 V |
| Electrical design | PNP |
| Output function | light-on/dark-on mode; (programmable) |
| Range | 30...130 mm |
| Type of light | red light |
| Housing length | 70.5 mm |
| Connection | M12 Connector |
| Materials | housing: stainless steel (316L/1.4404); End cap: PBT |
| Display | switching status: 1 x LED yellow; operation: 1 x LED green; function: 1 x LED red |
| Protection | IP 68IP 69K |
| Ambient temperature | -20...80 °C |
| Brand | ifm electronic gmbh or equivalent |
| Type | OG5119 |
Specifications
| Product characteristics | |
| Type of light | red light |
| Housing | threaded type |
| Application | |
| Special feature | Gold-plated contacts; Background suppression |
| Function principle | Diffuse reflection sensor |
| Application | Industrial applications / factory automation |
| Electrical data | |
| Operating voltage[V] | 10...36 DC |
| Current consumption[mA] | < 40 |
| Protection class | II |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length[nm] | 660 |
| Outputs | |
| Electrical design | PNP |
| Output function | light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC[V] | 2.5 |
| Permanent current rating of switching output DC[mA] | 150; (200 (...60 °C)) |
| Switching frequency DC[Hz] | 250 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
| Detection zone | |
| Range[mm] | 30...130; (white paper 200 x 200 mm 90% remission) |
| Range adjustable | yes |
| Max. light spot diameter[mm] | 12 |
| Light spot dimensions refer to | at maximum range |
| Background suppression available | yes |
| Operating conditions | |
| Ambient temperature[°C] | -20...80 |
| Protection | IP 68; IP 69K |
| Tests / approvals | |
| EMC | |
| EN 60947-5-2 | |
| EN 55011 | class B |
| MTTF[years] | 521 |
| Mechanical data | |
| Weight[g] | 60 |
| Housing | threaded type |
| Dimensions[mm] | M18 x 1 / L = 70.5 |
| Thread designation | M18 x 1 |
| Materials | housing: stainless steel (316L/1.4404); End cap: PBT |
| Lens material | front pane:PMMA |
| Displays / operating elements | |
| Display | |
| switching status | 1 x LED, yellow |
| operation | 1 x LED, green |
| function | 1 x LED, red |
| Accessories | |
| Items supplied | lock nuts: 2 |
| Remarks | |
| Remarks | |
| operating voltage "supply class 2" according to cULus | |
| Pack quantity | 1 pcs. |
| Electrical connection | |
| Connector | 1 x M12; coding: A; Contacts: 4, gold-plated |
Downloads
- OG5119 (252 KB)
