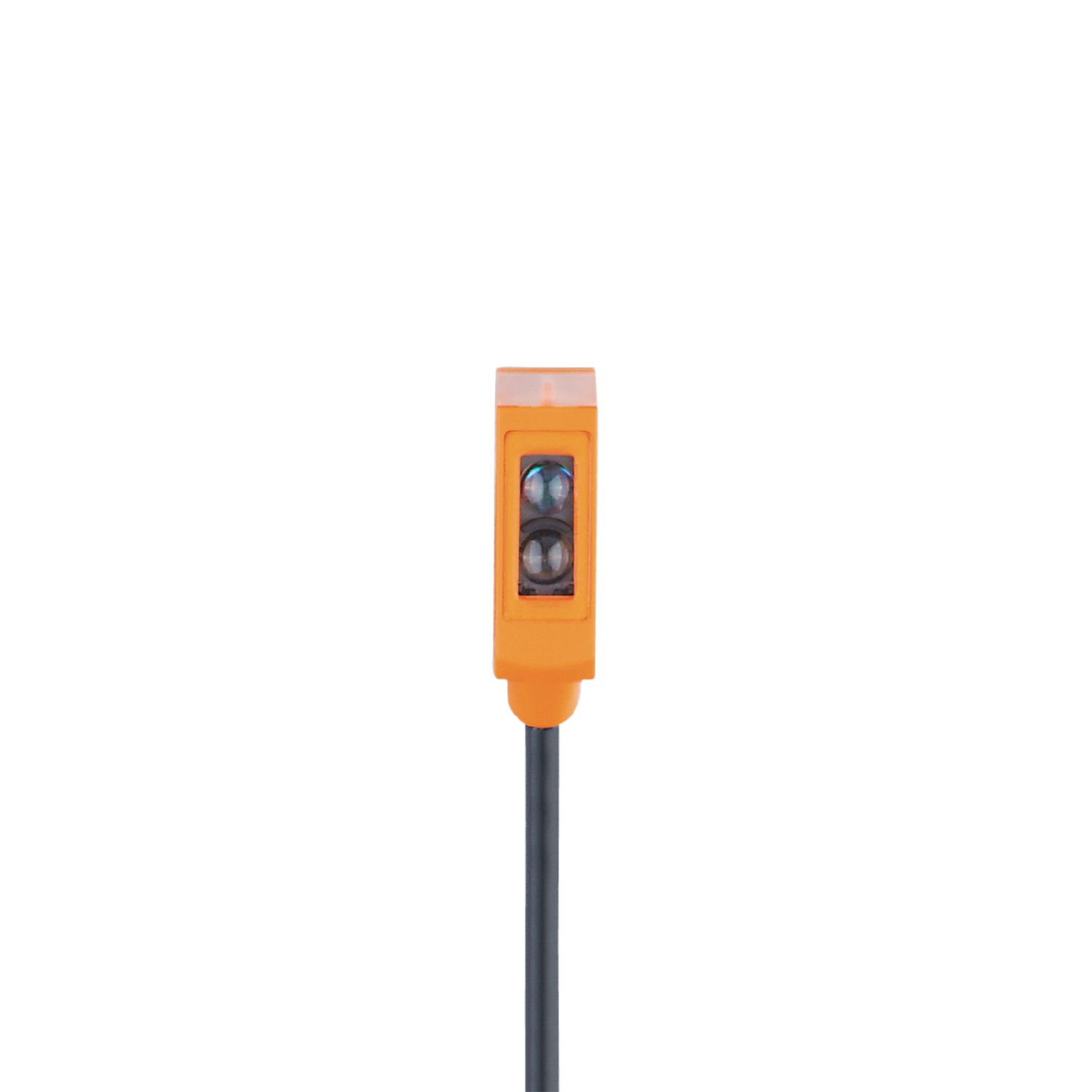

IFM O8T201 Photoelectric Sensors
Diffuse reflection sensor
IFM O8T201 Photoelectric Sensors — datasheet, specifications, part number lookup & authentic sourcing
Get a Quote / Inquire
Product Highlights
- Particularly small housing for use where space is restricted
- For the reliable position detection in feeding and handling technology
- Ready for operation immediately thanks to fixed setting
- Precise detection of very small, very flat or highly reflective components
- Very long range
Overview
| Product designation | Diffuse reflection sensor |
| Application | For applications in robotics, assembly and handling technology |
| Voltage type | DC |
| Operating voltage DC | 10...30 V |
| Electrical design | NPN |
| Output function | light-on mode |
| Lens alignment | side lens |
| Range | 0...180 mm |
| Type of light | red light |
| Connection | 2 m PVC-Cable |
| Materials | housing: ABS; rear of the housing: stainless steel (316L/1.4404) |
| Display | switching status: 1 x LED yellow; operation: 1 x LED green |
| Protection | IP 65IP 67 |
| Ambient temperature | -25...60 °C |
| Brand | ifm electronic gmbh or equivalent |
| Type | O8T201 |
Specifications
| Product characteristics | |
| Type of light | red light |
| Housing | rectangular |
| Application | |
| Function principle | Diffuse reflection sensor |
| Application | For applications in robotics, assembly and handling technology |
| Electrical data | |
| Operating voltage[V] | 10...30 DC |
| Current consumption[mA] | 20; ((24 V)) |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length[nm] | 633 |
| Outputs | |
| Electrical design | NPN |
| Output function | light-on mode |
| Max. voltage drop switching output DC[V] | 2.5 |
| Permanent current rating of switching output DC[mA] | 100 |
| Switching frequency DC[Hz] | 1000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Detection zone | |
| Range[mm] | 0...180; (white paper 200 x 200 mm) |
| Max. light spot diameter[mm] | 18 |
| Light spot dimensions refer to | at maximum range |
| Operating conditions | |
| Ambient temperature[°C] | -25...60 |
| Protection | IP 65; IP 67 |
| Tests / approvals | |
| EMC | |
| EN 60947-5-2 | |
| MTTF[years] | 1067 |
| UL approval | |
| Ta | -25...60 °C |
| Enclosure type | Type 1 |
| voltage supply | Limited Voltage/Current |
| UL approval no. | E014 |
| File number UL | E174191 |
| Mechanical data | |
| Weight[g] | 40 |
| Housing | rectangular |
| Dimensions[mm] | 28.1 x 8.1 x 14.4 |
| Materials | housing: ABS; rear of the housing: stainless steel (316L/1.4404) |
| Lens material | |
| front pane:PMMA | |
| Lens alignment | side lens |
| Displays / operating elements | |
| Display | |
| switching status | 1 x LED, yellow |
| operation | 1 x LED, green |
| Remarks | |
| Pack quantity | 1 pcs. |
| Electrical connection | |
| Cable | 2 m, PVC, black, Ø 2.9 mm; 3 x 0.08 mm² |
Downloads
- O8T201 (306 KB)
