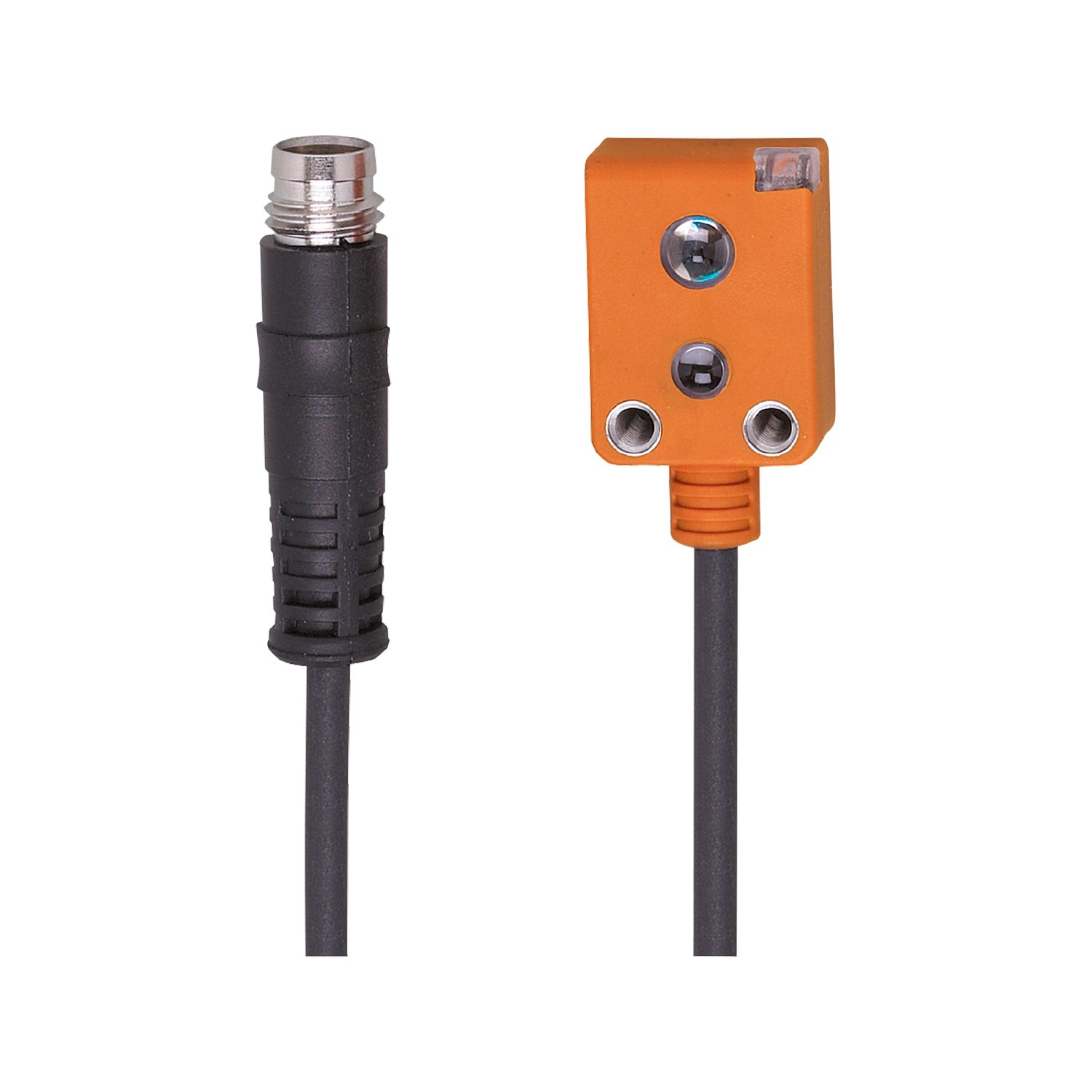

IFM O7H200 Photoelectric Sensors
Diffuse reflection sensor with background suppression
IFM O7H200 Photoelectric Sensors — datasheet, specifications, part number lookup & authentic sourcing
Get a Quote / Inquire
Product Highlights
- Particularly small housing for use where space is restricted
- For the reliable position detection in feeding and handling technology
- Small light spot and narrow light cone for detecting of small objects
- Precise background suppression
- Simple alignment due to visible red light
Overview
| Product designation | Diffuse reflection sensor |
| Application | For applications in robotics, assembly and handling technology |
| Voltage type | DC |
| Operating voltage DC | 10...30 V |
| Electrical design | PNP |
| Output function | light-on mode |
| Lens alignment | side lens |
| Range | 5...30 mm |
| Type of light | red light |
| Connection | 0.2 m PUR-Cable; M8 Connector |
| Materials | housing: PA |
| Display | switching status: 1 x LED yellow |
| Protection | IP 65 |
| Ambient temperature | -25...60 °C |
| Brand | ifm electronic gmbh or equivalent |
| Type | O7H200 |
Specifications
| Product characteristics | |
| Type of light | red light |
| Housing | rectangular |
| Application | |
| Special feature | Background suppression |
| Function principle | Diffuse reflection sensor |
| Application | For applications in robotics, assembly and handling technology |
| Electrical data | |
| Operating voltage[V] | 10...30 DC; ("supply class 2" according to UL) |
| Current consumption[mA] | 20; ((24 V)) |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length[nm] | 633 |
| Outputs | |
| Electrical design | PNP |
| Output function | light-on mode |
| Max. voltage drop switching output DC[V] | 2.5 |
| Permanent current rating of switching output DC[mA] | 100 |
| Switching frequency DC[Hz] | 750 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Detection zone | |
| Range[mm] | 5...30; (white paper 200 x 200 mm) |
| Range on white object (90 % remission)[mm] | 5...30 |
| Range on grey object (18 % remission)[mm] | 6...30 |
| Range on black object (6 % remission)[mm] | 7...29 |
| Range adjustable | no |
| Max. light spot diameter[mm] | 2.5 |
| Light spot dimensions refer to | at maximum range |
| Background suppression available | yes |
| Operating conditions | |
| Ambient temperature[°C] | -25...60 |
| Protection | IP 65 |
| Tests / approvals | |
| EMC | |
| EN 60947-5-2 | |
| MTTF[years] | 1610 |
| Mechanical data | |
| Weight[g] | 14.4 |
| Housing | rectangular |
| Dimensions[mm] | 20.3 x 15 x 9 |
| Materials | housing: PA |
| Lens material | |
| front pane:PMMA | |
| Lens alignment | side lens |
| Tightening torque[Nm] | 0.5 |
| Displays / operating elements | |
| Display | |
| switching status | 1 x LED, yellow |
| Remarks | |
| Pack quantity | 1 pcs. |
| Electrical connection | |
| Cable | 0.2 m, PUR; 3 x 0.14 mm² |
| Connector | 1 x M8; coding: A; Contacts: 3; Locking: snap-fit |
Downloads
- O7H200 (212 KB)
