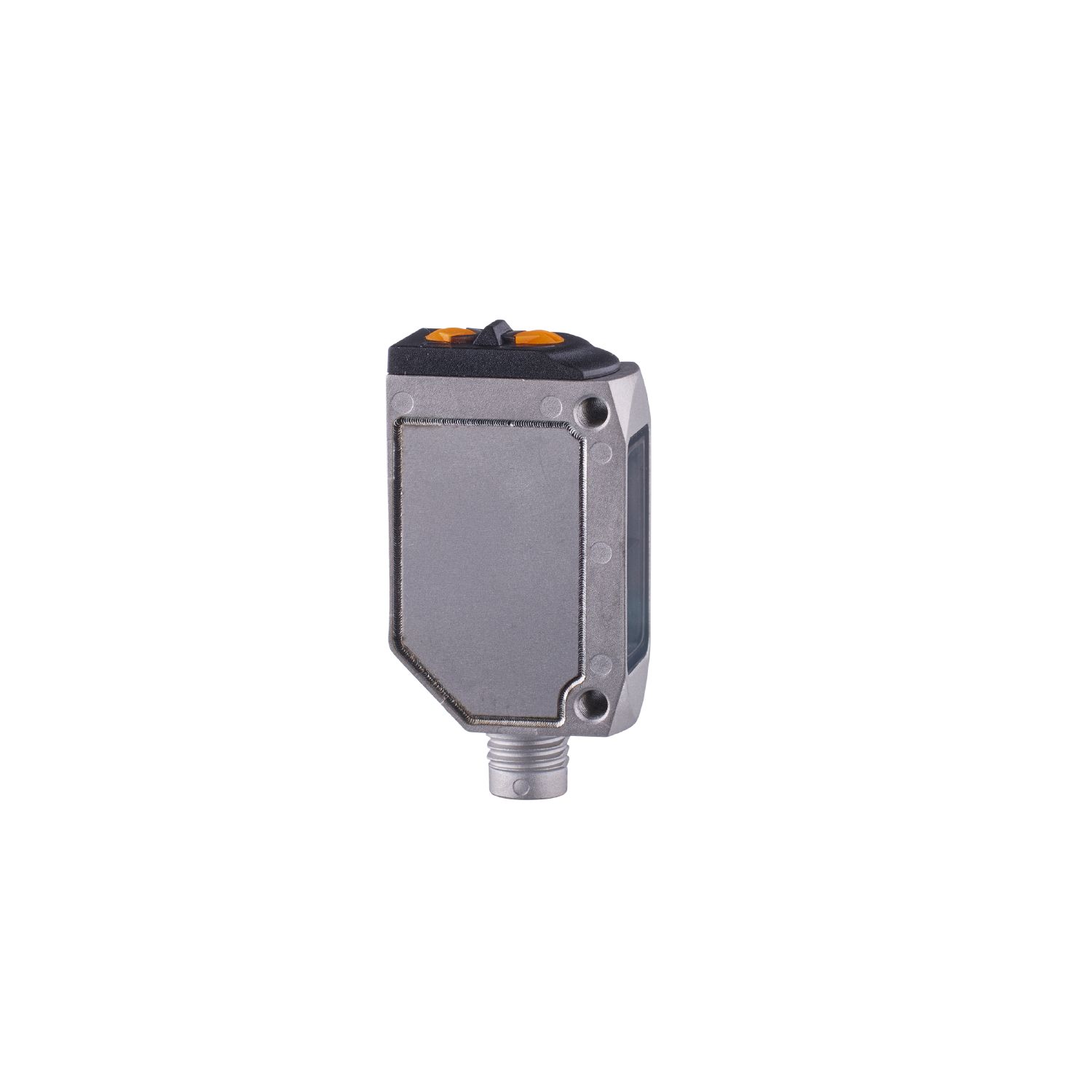

IFM O6T309 Photoelectric Sensors
Diffuse reflection sensor
IFM O6T309 Photoelectric Sensors — datasheet, specifications, part number lookup & authentic sourcing
Get a Quote / Inquire
Product Highlights
- Robust stainless steel housing for use in the food industry
- Resistant to high-pressure cleaning with aggressive cleaning agents
- High protection rating for the requirements of harsh industrial environments
- Intuitive setting of range and output function
- User-friendly communication and parameterisation via IO-Link
Overview
| Product designation | Diffuse reflection sensor |
| Application | food and beverage industry |
| Voltage type | DC |
| Operating voltage DC | 10...30 V |
| Electrical design | PNP |
| Output function | light-on/dark-on mode; (selectable) |
| Lens alignment | side lens |
| Range | 5...500 mm |
| Type of light | red light |
| Connection | M8 Connector |
| Materials | housing: stainless steel (316L/1.4404); Sealing: EPDM; plastics: PPSU |
| Display | switching status: 1 x LED yellow; operation: 1 x LED green |
| Protection | IP 65IP 67IP 68IP 69K |
| Ambient temperature | -25...80 °C |
| Communication interface | IO-Link |
| Brand | ifm electronic gmbh or equivalent |
| Type | O6T309 |
Specifications
| Product characteristics | |
| Type of light | red light |
| Housing | rectangular |
| Application | |
| Function principle | Diffuse reflection sensor |
| Application | food and beverage industry |
| Electrical data | |
| Operating voltage[V] | 10...30 DC |
| Current consumption[mA] | 16; ((24 V)) |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length[nm] | 633 |
| Outputs | |
| Electrical design | PNP |
| Output function | light-on/dark-on mode; (selectable) |
| Max. voltage drop switching output DC[V] | 2.5 |
| Permanent current rating of switching output DC[mA] | 100 |
| Switching frequency DC[Hz] | 1000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Detection zone | |
| Range[mm] | 5...500; (white paper 200 x 200 mm 90% remission) |
| Setting range[mm] | 100...500 |
| Range adjustable | yes |
| Max. light spot diameter[mm] | 15 |
| Light spot dimensions refer to | at maximum range |
| Interfaces | |
| Communication interface | IO-Link |
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| Profiles | |
| Smart Sensor - SSP 0 | Generic Profiled Sensor |
| Function | Device identification |
| Function | Multiple switching signal |
| SIO mode | yes |
| Required master port type | A |
| Min. process cycle time[ms] | 2.5 |
| IO-Link process data (cyclical) | |
| function | bit length |
| process value | 8 |
| binary switching information | 1 |
| IO-Link functions (acyclical) | application specific tag; operating hours counter; switching cycles counter |
| Supported DeviceIDs | |
| Type of operation | DeviceID |
| default | 423 |
| Operating conditions | |
| Ambient temperature[°C] | -25...80 |
| Protection | IP 65; IP 67; IP 68; IP 69K |
| Tests / approvals | |
| EMC | |
| EN 60947-5-2 | |
| MTTF[years] | 681 |
| UL approval | |
| Ta | -25...40 °C |
| Enclosure type | Type 1 |
| voltage supply | Class 2 |
| UL approval no. | E010 |
| Mechanical data | |
| Weight[g] | 34.4 |
| Housing | rectangular |
| Dimensions[mm] | 41.3 x 13 x 21 |
| Materials | housing: stainless steel (316L/1.4404); Sealing: EPDM; plastics: PPSU |
| Lens material | |
| front pane:PMMA | |
| Lens alignment | side lens |
| Tightening torque[Nm] | 1; (screws) |
| Displays / operating elements | |
| Display | |
| switching status | 1 x LED, yellow |
| operation | 1 x LED, green |
| Remarks | |
| Remarks | |
| operating voltage "supply class 2" according to cULus | |
| Pack quantity | 1 pcs. |
| Electrical connection | |
| Connector | 1 x M8; coding: A; Contacts: 4 |
