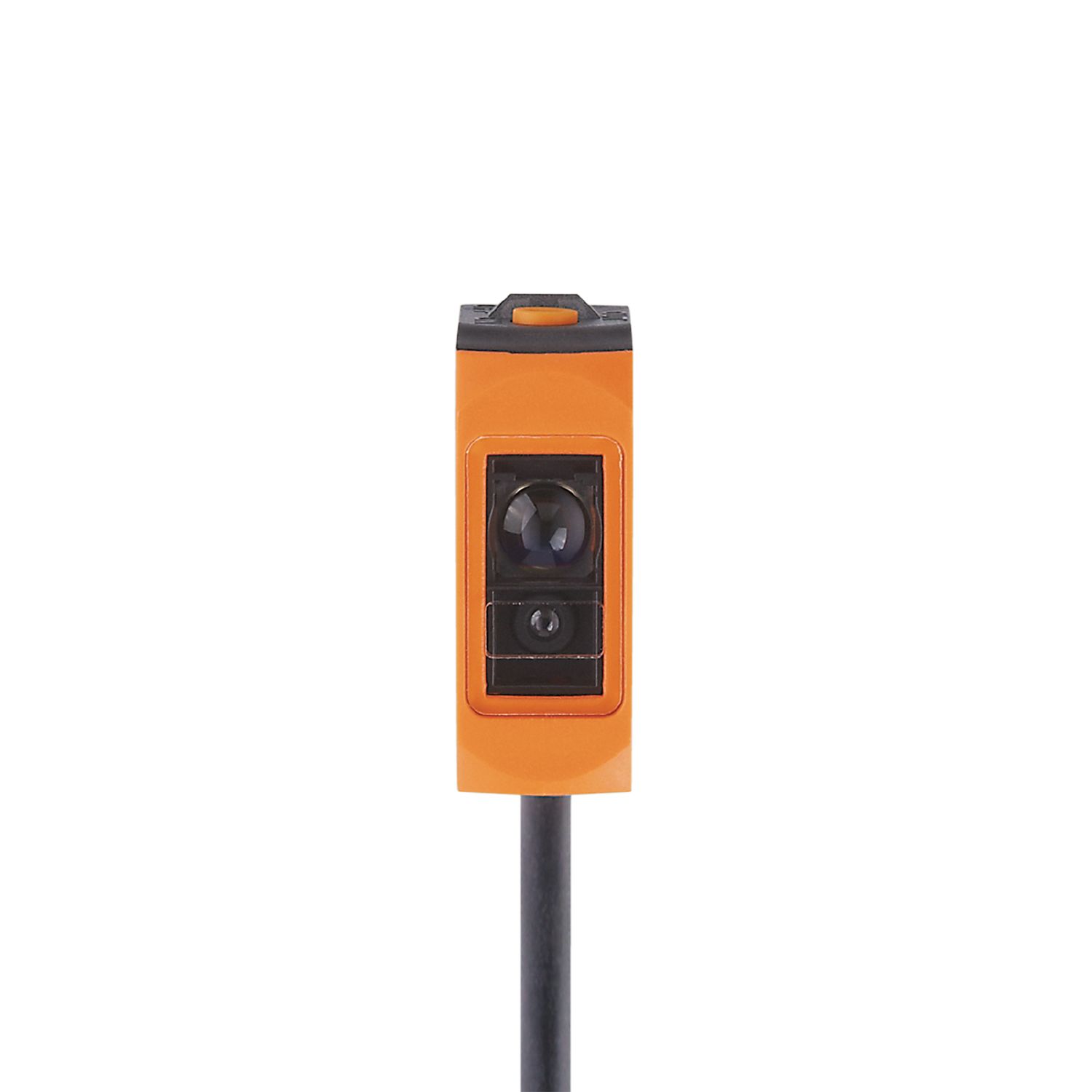

IFM O6H706 Photoelectric Sensors

Diffuse reflection sensor with background suppression

IFM O6H706 Photoelectric Sensors — datasheet, specifications, part number lookup & authentic sourcing

Get a Quote / Inquire

Request a Quote Chat via WhatsApp Email Us

Product Highlights

Overview

Product designationDiffuse reflection sensor
ApplicationIndustrial applications / factory automation
Voltage typeDC
Operating voltage DC10...30 V
Electrical designPNP
Output functionlight-on/dark-on mode; (selectable)
Range1...200 mm
Type of lightred light
Laser protection class1
Connection2 m PUR-Cable
Materialshousing: ABS orange; upper part of the housing: PPSU black; Sealing: EPDM
Displayswitching status: 1 x LED yellow; operation: 1 x LED green
ProtectionIP 65IP 67
Ambient temperature-10...60 °C
Communication interfaceIO-Link
Brandifm electronic gmbh or equivalent
TypeO6H706

Specifications

Product characteristics
Type of lightred light
Laser protection class1
Housingrectangular
Application
Special featureBackground suppression
Function principleDiffuse reflection sensor
ApplicationIndustrial applications / factory automation
Electrical data
Operating voltage[V]10...30 DC
Current consumption[mA]16; ((24 V))
Protection classIII
Reverse polarity protectionyes
Type of lightred light
Wave length[nm]650
Outputs
Electrical designPNP
Output functionlight-on/dark-on mode; (selectable)
Max. voltage drop switching output DC[V]2.5
Permanent current rating of switching output DC[mA]100
Switching frequency DC[Hz]1001
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Detection zone
Range[mm]1...200; (white paper 200 x 200 mm)
Range on white object (90 % remission)[mm]1...200
Range on grey object (18 % remission)[mm]8...170
Range on black object (6 % remission)[mm]12...100
Max. light spot diameter[mm]2.2
Light spot dimensions refer toat maximum range
Background suppression availableyes
Interfaces
Communication interfaceIO-Link
Transmission typeCOM2 (38,4 kBaud)
IO-Link revision1.1
SDCI standardIEC 61131-9
Profiles
Smart Sensor - SSP 0Generic Profiled Sensor
FunctionDevice identification
FunctionMultiple switching signal
FunctionProcess data variable
FunctionDevice diagnosis
FunctionTeach channel
SIO modeyes
Required master port typeA
Min. process cycle time[ms]10
IO-Link process data (cyclical)
functionbit length
process value32
device status4
binary switching information1
IO-Link functions (acyclical)application specific tag; operating hours counter; switch-on cycle counter
Supported DeviceIDs
Type of operationDeviceID
default1026
Operating conditions
Ambient temperature[°C]-10...60
ProtectionIP 65; IP 67
Tests / approvals
EMC
EN 60947-5-2
Laser protection class1
Notes on laser protection
Caution:laser light
laser class:1 EN / IEC60825-1:2007 EN / IEC60825-1:2014
Complies with 21 CFR 1040.10 except for conformance with IEC 60825-1 Ed. 3, as described in Laser Notice No. 56, dated May 8, 2019.
MTTF[years]513
UL approval
Ta-25...60 °C
Enclosure typeType 1
voltage supplyClass 2
File number ULE174191
Mechanical data
Weight[g]60.5
Housingrectangular
Dimensions[mm]35.4 x 13 x 21
Materialshousing: ABS orange; upper part of the housing: PPSU black; Sealing: EPDM
Lens material
front pane:PMMA
Tightening torque[Nm]0.5; (screws)
Displays / operating elements
Display
switching status1 x LED, yellow
operation1 x LED, green
Remarks
Remarks
operating voltage "supply class 2" according to cULus
Pack quantity1 pcs.
Electrical connection
Cable2 m, PUR, black, Ø 3.7 mm; 3 x 0.25 mm²
Other data
Repeatability / precision: 6 σ
repeatability of the measured values
Abstandwhite (90 % remission) black (6 %...90 % remission)
20 mm0.1 mm 0.5 mm
100 mm0.5 mm 2.0 mm
200 mm4 mm OL
accuracy
Abstandwhite (90 % remission) black (6 %...90 % remission)
20 mm± 1.0 mm ± 1.3 mm
100 mm± 5.0 mm ± 6.5 mm
200 mm± 20.0 mm OL
The values apply at
Extraneous light on the object< 10 klx
