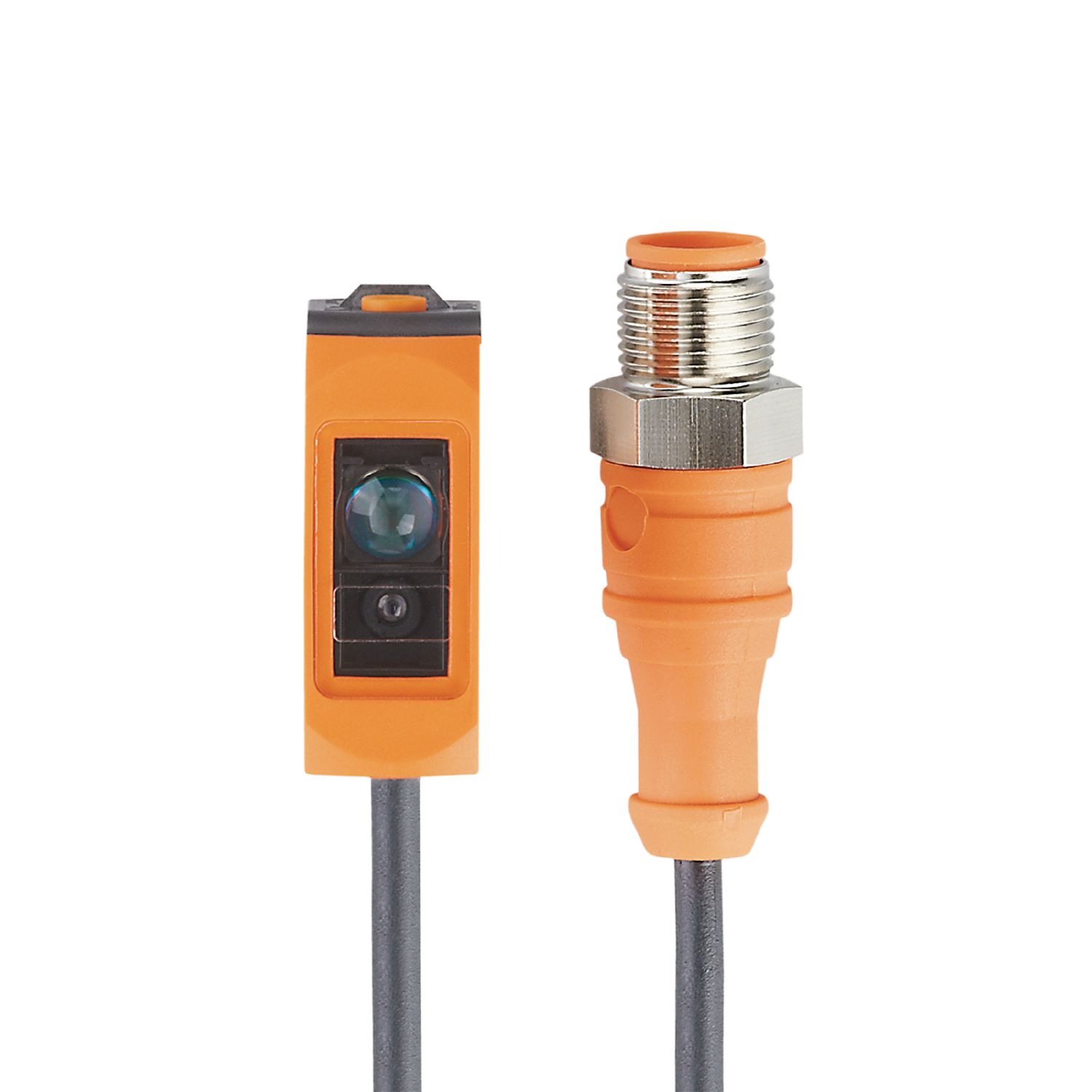

IFM O6H701 Photoelectric Sensors
Diffuse reflection sensor with background suppression
IFM O6H701 Photoelectric Sensors — datasheet, specifications, part number lookup & authentic sourcing
Get a Quote / Inquire
Product Highlights
- Precise background suppression
- Excellent price/performance ratio
- Compact rectangular design
- Reliable transmission of the distance as linearised process value via IO-Link
Overview
| Product designation | Diffuse reflection sensor |
| Application | Industrial applications / factory automation |
| Voltage type | DC |
| Operating voltage DC | 10...30 V |
| Electrical design | PNP |
| Output function | light-on/dark-on mode; (selectable) |
| Lens alignment | side lens |
| Range | 1...100 mm |
| Type of light | red light |
| Laser protection class | 1 |
| Connection | 0.3 m PUR-Cable; M12 Connector |
| Materials | housing: ABS; PPSU; Sealing: EPDM |
| Display | switching status: 1 x LED yellow; operation: 1 x LED green |
| Protection | IP 65IP 67 |
| Ambient temperature | -10...60 °C |
| Communication interface | IO-Link |
| Brand | ifm electronic gmbh or equivalent |
| Type | O6H701 |
Specifications
| Product characteristics | |
| Type of light | red light |
| Laser protection class | 1 |
| Housing | rectangular |
| Application | |
| Special feature | Background suppression |
| Function principle | Diffuse reflection sensor |
| Application | Industrial applications / factory automation |
| Electrical data | |
| Operating voltage[V] | 10...30 DC |
| Current consumption[mA] | 16; (24 V) |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length[nm] | 650 |
| Outputs | |
| Electrical design | PNP |
| Output function | light-on/dark-on mode; (selectable) |
| Max. voltage drop switching output DC[V] | 2.5 |
| Permanent current rating of switching output DC[mA] | 100 |
| Switching frequency DC[Hz] | 1000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Detection zone | |
| Range[mm] | 1...100; (white paper 200 x 200 mm) |
| Range on white object (90 % remission)[mm] | 1...100 |
| Range on grey object (18 % remission)[mm] | 8...100 |
| Range on black object (6 % remission)[mm] | 12...100 |
| Range adjustable | yes |
| Max. light spot diameter[mm] | 2 |
| Light spot dimensions refer to | at maximum range |
| Background suppression available | yes |
| Interfaces | |
| Communication interface | IO-Link |
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| Profiles | |
| Smart Sensor - SSP 0 | Generic Profiled Sensor |
| Function | Device identification |
| Function | Multiple switching signal |
| Function | Process data variable |
| Function | Device diagnosis |
| Function | Teach channel |
| SIO mode | yes |
| Required master port type | A |
| Min. process cycle time[ms] | 10 |
| IO-Link process data (cyclical) | |
| function | bit length |
| process value | 32 |
| device status | 4 |
| binary switching information | 1 |
| IO-Link functions (acyclical) | application specific tag; operating hours counter; switch-on cycle counter |
| Supported DeviceIDs | |
| Type of operation | DeviceID |
| default | 526 |
| Operating conditions | |
| Ambient temperature[°C] | -10...60 |
| Protection | IP 65; IP 67 |
| Tests / approvals | |
| EMC | |
| EN 60947-5-2 | |
| Laser protection class | 1 |
| Notes on laser protection | |
| Caution: | laser light |
| laser class: | 1 EN / IEC60825-1:2007 EN / IEC60825-1:2014 |
| Complies with 21 CFR 1040.10 except for conformance with IEC 60825-1 Ed. 3, as described in Laser Notice No. 56, dated May 8, 2019. | |
| MTTF[years] | 513 |
| UL approval | |
| Ta | -25...50 °C |
| Enclosure type | Type 1 |
| voltage supply | Class 2 |
| Mechanical data | |
| Weight[g] | 33.8 |
| Housing | rectangular |
| Dimensions[mm] | 35.4 x 13 x 21 |
| Materials | housing: ABS; PPSU; Sealing: EPDM |
| Lens material | |
| front pane:PMMA | |
| Lens alignment | side lens |
| Tightening torque[Nm] | 0.5; (screws) |
| Displays / operating elements | |
| Display | |
| switching status | 1 x LED, yellow |
| operation | 1 x LED, green |
| Remarks | |
| Remarks | |
| operating voltage "supply class 2" according to cULus | |
| Pack quantity | 1 pcs. |
| Electrical connection | |
| Connector | 1 x M12; coding: A; Contacts: 4 |
| Electrical connection - plug | |
| Cable | 0.3 m, PUR, black, Ø 3.7 mm; 3 x 0.25 mm² |
| Other data | |
| Repeatability / precision: 6 σ | |
| repeatability of the measured values | |
| distance | white (90 % remission) black (6 %...90 % remission) |
| 20 mm | 0.1 mm 0.5 mm |
| 50 mm | 0.2 mm 1.0 mm |
| 100 mm | 0.5 mm 2.0 mm |
| accuracy | |
| distance | white (90 % remission) black (6 %...90 % remission) |
| 20 mm | ± 0.6 mm ± 0.9 mm |
| 50 mm | ± 1.5 mm ± 2.0 mm |
| 100 mm | ± 3.0 mm ± 4.0 mm |
| The values apply at | |
| Extraneous light on the object | < 10 klx |
| constant ambient conditions | 23 °C / 960 hPa |
| minimum power-on time in minutes | 10 |
| IO-Link - measuring mode | |
