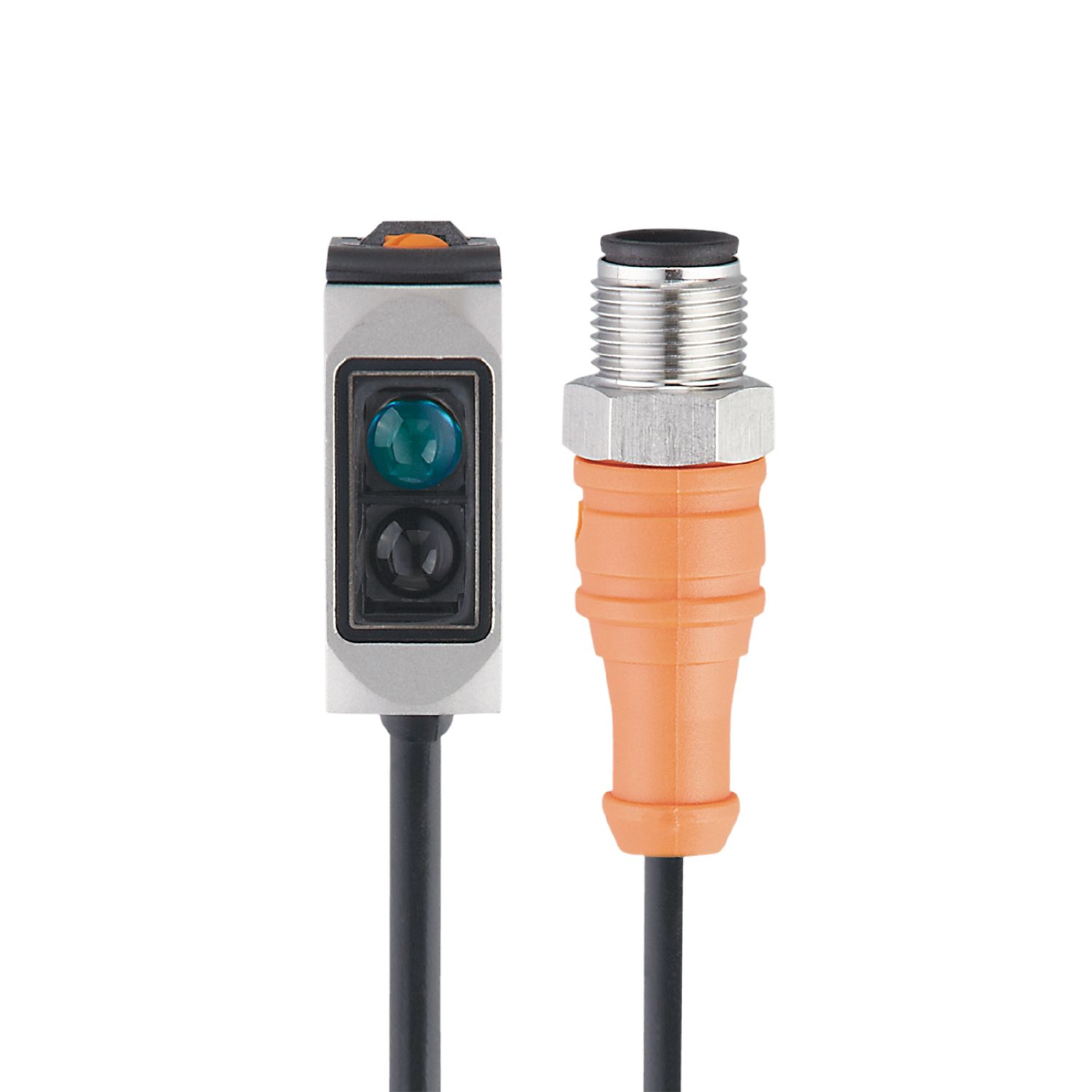

IFM O6H317 Photoelectric Sensors

Diffuse reflection sensor with background suppression

IFM O6H317 Photoelectric Sensors — datasheet, specifications, part number lookup & authentic sourcing

Get a Quote / Inquire

Request a Quote Chat via WhatsApp Email Us

Product Highlights

Robust stainless steel housing for use in the food industry
Resistant to high-pressure cleaning with aggressive cleaning agents
High protection rating for the requirements of harsh industrial environments
Particularly interference-immune background suppression even with strongly reflecting backgrounds
Intuitive setting of range and output function
User-friendly communication and parameterisation via IO-Link

Overview

Product designation	Diffuse reflection sensor
Application	food and beverage industry
Voltage type	DC
Operating voltage DC	10...30 V
Electrical design	PNP
Output function	light-on/dark-on mode; (selectable)
Lens alignment	side lens
Range	2...200 mm
Type of light	red light
Connection	0.3 m PVC-Cable; M12 Connector
Materials	housing: stainless steel (316L/1.4404); Sealing: EPDM; plastics: PPSU
Display	switching status: 1 x LED yellow; operation: 1 x LED green
Protection	IP 65IP 67IP 68IP 69K
Ambient temperature	-25...80 °C
Communication interface	IO-Link
Brand	ifm electronic gmbh or equivalent
Type	O6H317

Specifications

Product characteristics
Type of light	red light
Housing	rectangular
Application
Special feature	Background suppression
Function principle	Diffuse reflection sensor
Application	food and beverage industry
Electrical data
Operating voltage[V]	10...30 DC; (operating voltage "supply class 2" according to cULus)
Current consumption[mA]	22; ((24 V))
Protection class	III
Reverse polarity protection	yes
Type of light	red light
Wave length[nm]	633
Outputs
Electrical design	PNP
Output function	light-on/dark-on mode; (selectable)
Max. voltage drop switching output DC[V]	2.5
Permanent current rating of switching output DC[mA]	100
Switching frequency DC[Hz]	1000
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Detection zone
Range[mm]	2...200; (white paper 200 x 200 mm)
Range on white object (90 % remission)[mm]	2...200
Range on grey object (18 % remission)[mm]	4...200
Range on black object (6 % remission)[mm]	8...200
Range adjustable	yes
Max. light spot diameter[mm]	8
Light spot dimensions refer to	at maximum range
Background suppression available	yes
Interfaces
Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles
Smart Sensor - SSP 0	Generic Profiled Sensor
Function	Device identification
Function	Multiple switching signal
SIO mode	yes
Required master port type	A
Min. process cycle time[ms]	2.5
IO-Link process data (cyclical)
function	bit length
process value	8
binary switching information	1
IO-Link functions (acyclical)	application specific tag; operating hours counter; switching cycles counter
Supported DeviceIDs
Type of operation	DeviceID
default	581
Operating conditions
Ambient temperature[°C]	-25...80
Protection	IP 65; IP 67; IP 68; IP 69K
Tests / approvals
EMC
EN 60947-5-2
MTTF[years]	534
UL approval
Ta	-25...40 °C
Enclosure type	Type 1
voltage supply	Class 2
File number UL	E174191
Mechanical data
Weight[g]	51.3
Housing	rectangular
Dimensions[mm]	34.8 x 13 x 21
Materials	housing: stainless steel (316L/1.4404); Sealing: EPDM; plastics: PPSU
Lens material
front pane:PMMA
Lens alignment	side lens
Tightening torque[Nm]	1; (screws)
Displays / operating elements
Display
switching status	1 x LED, yellow
operation	1 x LED, green
Remarks
Pack quantity	1 pcs.
Electrical connection
Cable	0.3 m, PVC
Connector	1 x M12; coding: A; Contacts: 4

Downloads

O6H317 (292 KB)
