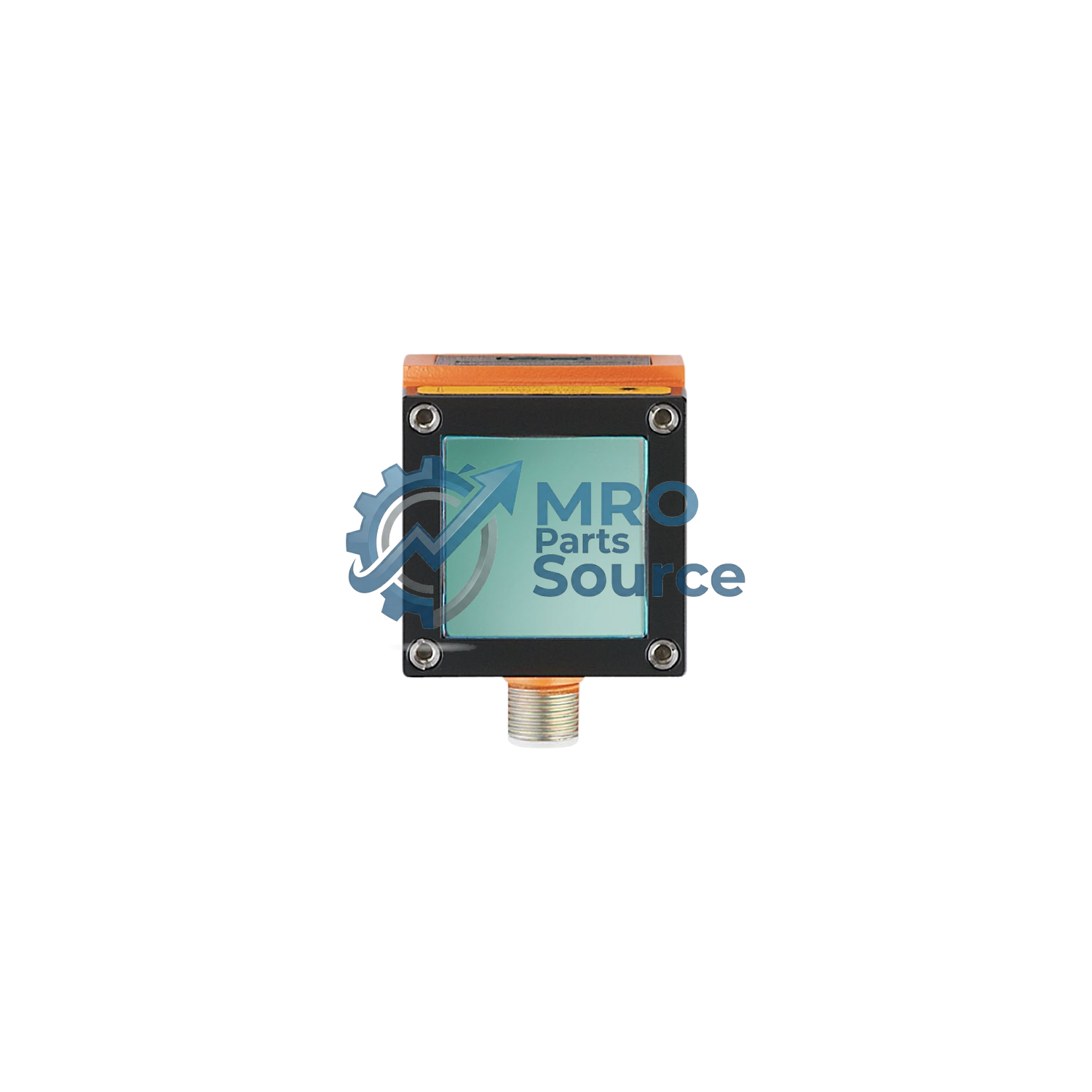

IFM O1D100 Laser Distance Sensors

Photoelectric distance sensor

IFM O1D100 Laser Distance Sensors — datasheet, specifications, part number lookup & authentic sourcing

Get a Quote / Inquire

Request a Quote Chat via WhatsApp Email Us

Product Highlights

Reliable optical distance measurement with high ranges up to 10 m
Two switching outputs, one of them programmable as analogue output
Scalable measuring range and window function
Use in applications with background suppression
Excellent price/performance ratio

Overview

Product designation	Photoelectric distance sensor
Application	Industrial applications / factory automation
Voltage type	DC
Operating voltage DC	18...30 V
Electrical design	PNP
Output function	normally open / normally closed; (parameterisable); analogue
Lens alignment	side lens
Measuring range	0.2...10 m
Laser protection class	2
Connection	M12 Connector
Materials	housing: diecast zinc; front pane: glass; LED window: PC
Display	switching status: 2 x LED yellow; operation: LED green; distance value, programming: alphanumeric display 4-digit
Protection	IP 67
Ambient temperature	-10...60 °C
Communication interface	IO-Link
Brand	ifm electronic gmbh or equivalent
Type	O1D100

Specifications

Product characteristics
Laser protection class	2
Housing	rectangular
Application
Application	Industrial applications / factory automation
Electrical data
Operating voltage[V]	18...30 DC; ("supply class 2" to cULus)
Current consumption[mA]	< 150
Protection class	III
Reverse polarity protection	yes
Typ. lifetime[h]	50000
Inputs / outputs
Number of inputs and outputs	Number of digital outputs: 2; Number of analogue outputs: 1
Outputs
Total number of outputs	2
Electrical design	PNP
Number of digital outputs	2
Output function	normally open / normally closed; (parameterisable)
Max. current load per output[mA]	200
Number of analogue outputs	1
Analogue current output[mA]	4...20; (IEC 61131-2)
Max. load[Ω]	250
Analogue voltage output[V]	0...10; (IEC 61131-2)
Min. load resistance[Ω]	5000
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes
Detection zone
Max. light spot diameter[mm]	25
Light spot dimensions refer to	10 m
Background suppression[m]	0...19
Measuring/setting range
Measuring range[m]	0.2...10; (white paper 200 x 200 mm 90% remission)
Sampling rate[Hz]	1...50
Interfaces
Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles
Smart Sensor - SSP 0	Generic Profiled Sensor
Function	Device identification
Function	Process data variable
Function	Device diagnosis
Function	Teach channel
SIO mode	yes
Required master port type	A
Process data analogue	2
Process data binary	3
Min. process cycle time[ms]	5
Supported DeviceIDs
Type of operation	DeviceID
default	806
Operating conditions
Ambient temperature[°C]	-10...60
Protection	IP 67
Tests / approvals
EMC
EN 60947-5-2
Laser protection class	2
Notes on laser protection
Caution:	laser light
Power:	<= 4 mW
Wave length:	650 nm
pulse:	1,3 ns
Do not stare into beam.
Avoid exposure to the laser light.
laser class:	2 EN / IEC60825-1:2007 EN / IEC60825-1:2014
Complies with 21 CFR 1040.10 except for conformance with IEC 60825-1 Ed. 3, as described in Laser Notice No. 56, dated May 8, 2019.
MTTF[years]	182
Mechanical data
Weight[g]	243.5
Housing	rectangular
Dimensions[mm]	59 x 42 x 52
Materials	housing: diecast zinc; front pane: glass; LED window: PC
Lens alignment	side lens
Displays / operating elements
Display
switching status	2 x LED, yellow
operation	LED, green
distance value, programming	alphanumeric display, 4-digit
Accessories
Accessories (optional)	Protective cover, E21133
Remarks
Remarks
For more information about the measuring range / application please refer to the operating instructions.
Pack quantity	1 pcs.
Electrical connection - plug
Connector	1 x M12; coding: A; Contacts: 5
Other data
Parameter	Setting range Factory setting
Uni	mm, m, inch mm
OU1	Hno, Hnc, Fno, Fnc Hno
SP1 [mm]	200...9999 1000
nSP1 [mm]	200...9999 800
FSP1 [mm]	200...9999 1200
OU2	Hno, Hnc, Fno, Fnc, I, U I
SP2 [mm]	200...9999 2000
nSP2 [mm]	200...9999 1800
FSP2 [mm]	200...9999 2200
ASP [mm]	0...9999 0
AEP [mm]	0...9999 9999
rATE [Hz]	1...50 50
dS1 [s]	0...0.1...5 0
dr1 [s]	0...0.1...5 0
dS2 [s]	0...0.1...5 0
dr2 [s]	0...0.1...5 0
dFo [s]	0...0.1...5 0
dIS	d1...3 ; rd1...3; OFF d3
repeatability/accuracy
distance	repeatability of the measured values accuracy
white (90 % remission)	grey (18 % remission) white (90 % remission) grey (18 % remission)
200...1000 mm	± 5.0 mm ±7.5 mm ± 15.0 mm ± 18.0 mm
1000...2000 mm	± 5.5 mm ±10.0 mm ± 15.0 mm ± 20.0 mm
2000...4000 mm	± 17.5 mm ±22.5 mm ± 25.0 mm ± 32.0 mm
4000...6000 mm	± 27.5 mm ±40.0 mm ± 35.0 mm ± 50.0 mm
6000...10000 mm	± 60.0 mm ± 70.0mm
Sampling rate	50 Hz
Extraneous light on the object	< 40 klx
repeatability/accuracy
distance	repeatability of the measured values accuracy
white (90 % remission)	grey (18 % remission) white (90 % remission) grey (18 % remission)
200...1000 mm	± 16.5 mm ±16.5 mm ± 26.5 mm ± 26.5 mm
1000...2000 mm	± 16.5 mm ±16.5 mm ± 26.5 mm ± 26.5 mm
2000...4000 mm	± 30.0 mm ±37.0 mm ± 40.0 mm ± 47.0 mm
4000...6000 mm	± 37.0 mm ±57.0 mm ± 47.0 mm ± 67.0 mm
6000...10000 mm	± 75.0 mm — ± 85.0mm —
Sampling rate	50 Hz
Extraneous light on the object	40...100 klx
repeatability/accuracy
distance	repeatability of the measured values accuracy
white (90 % remission)	grey (18 % remission) white (90 % remission) grey (18 % remission)
200...1000 mm	± 4.0 mm ±4.5 mm ± 14.0 mm ± 15.0 mm
1000...2000 mm	± 4.5 mm ±6.0 mm ± 14.5 mm ± 16.0 mm
2000...4000 mm	± 13.5 mm ±14.5 mm ± 23.5 mm ± 24.0 mm
4000...6000 mm	± 19.0 mm ±21.0 mm ± 29.0 mm ± 31.0 mm
6000...10000 mm	± 37.0 mm – ± 47.0mm –
Sampling rate	1 Hz
Extraneous light on the object	< 40 klx
repeatability/accuracy
distance	repeatability of the measured values accuracy
white (90 % remission)	grey (18 % remission) white (90 % remission) grey (18 % remission)
200...1000 mm	± 10.0 mm ± 10.0 mm ± 20.0 mm ± 20.0 mm
1000...2000 mm	± 10.0 mm ± 10.0 mm ± 20.0 mm ± 20.0 mm
2000...4000 mm	± 17.0 mm ± 18.0 mm ± 27.0 mm ± 28.0 mm
4000...6000 mm	± 22.0 mm ± 25.0 mm ± 32.0 mm ± 35.0 mm
6000...10000 mm	± 37.0 mm – ± 47.0mm –
Sampling rate	1 Hz
Extraneous light on the object	< 40...100 klx
Range on black object (6 % remission)	<= 4000 mm
The values apply at
constant ambient conditions	23 °C / 960 hPa
minimum power-on time in minutes	10
